Kalmar DCE80-100E - Fuses and Relays

DCE80-100E
Technical Handbook
Electrical system
Electrical system
8
P.Group 20
TDCE01
04GB

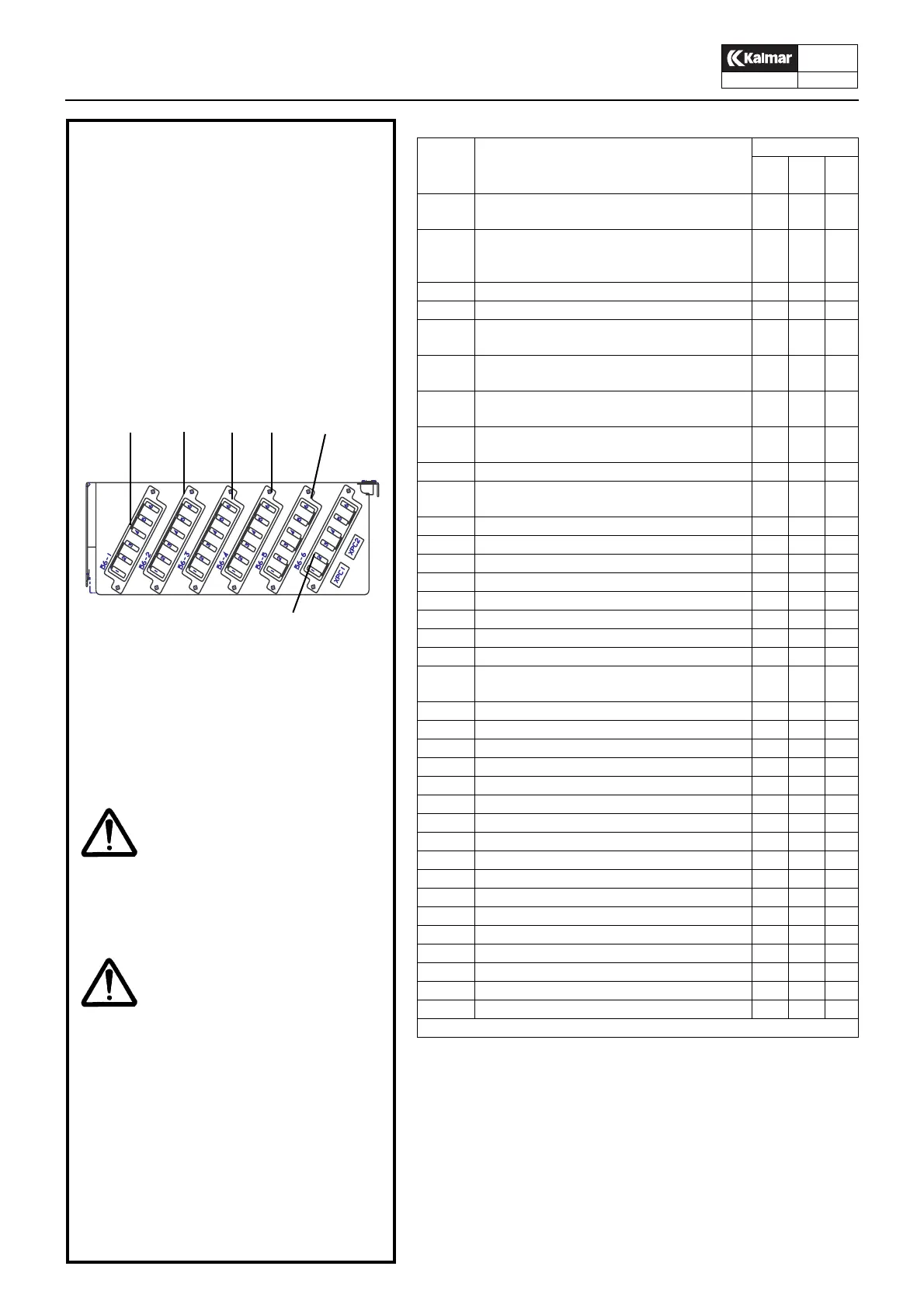

Relay box in cab – fuses
Fuse Rating, A
No. Circuit protected TWD TAD QSB
731 720 5.9
S1 Hazard lights, ignitions key, preheater relay,
start relay
15 15 15
S2 Cab lighting, seat buzzer, parking brake sen-
sor, disengagement relay (ECS 01), hydr oil
cooler supply
15 15 15
S3 Stopp, engine 5
S4 Electric gear-changing 5 5 5
S5 Warning lamps, instrument illumination,
coolant level relay brake pressure relay
555
S6 Horn, screenwash motor, front wiper motor,
intermittent relay front wiper
10 10 10
S7 Wiper motors and intermittent relay rear and
roof
10 10 10
S8 Heating fan, AC compressor, seat heater,
recirculation motor
25 25 25
S9 AC condensor, manual hydraulic oil cooler 15 15 15
S10 Main fuse, driving lights, rear lights, position
lights, direction indicators
15 15 15
S11 Brake lights, flashing beacon 10 10 10
S12 Reversing lights, reversing alarm 15 15 15
S13 Working lights on mast 15 15 15
S14 Working lights on cabin roof 15 15 15
S15 Container lights 15 15 15
S16 24/12 V converter (radio, com radio) 15 15 15
S17 Stop, engine 5 5 -
S18 El-operated parking brake 5 5 5
S19 ECU 1 (Aut gearchanging, lever steering,
monitoring
15 15 15
S20 ECU 4 (El-servo system) 15 15 15
S21 Container attachment, safety interlock 10 10 10
S22 Spare - - -
S23 Working lights, chassis front 15 15 15
S24 Spare - - -
S25 Left hand main beam 5 5 5
S26 Right hand main beam 5 5 5
S27 Left hand dipped beam 5 5 5
S28 Right hand dipped beam 5 5 5
S29 Left hand rear light, right hand position light 5 5 5
S30 Right hand rear light, left hand position light 5 5 5
S31 Waterseparator 15 20 20
S32 Central lubrication 15 15 15
S33 Compressor for air suspended seat 15 15 15
S34 Compressed air horn 15 15 15
S35 Spare - - -
S36 Spare - - -
NB. The table contains extra equipment
WARNING!
Never use fuses of a higher amperage
than stated on the lid decal.
Risk of damage or fire.
WARNING!
It is prohibited to connect more
consumers to any fuse.
S1-6 S7-12 S13-18 S19-24 S25-30
S31-36
