Kalmar DCE80-100E - Group 70

DCE80-100E
Technical Handbook
2
P.Group 70
TDCE01
04GB

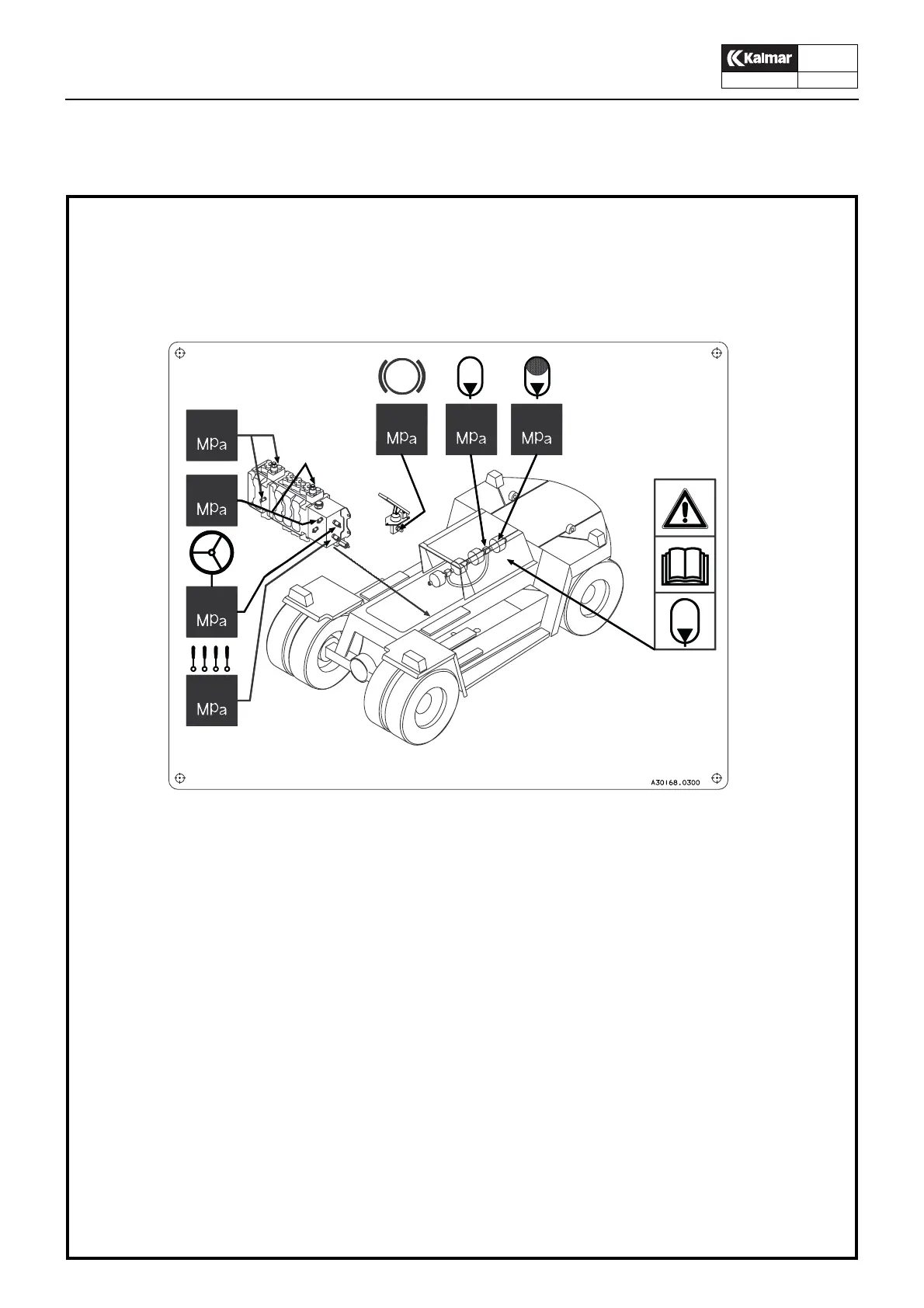

For different pressure settings, see the hydraulic plate on
each truck
1
2
3
4
567
1. Test outlet and pressure setting separate lift section
(14 and 12 on hydraulic diagram)
2. Test outlet and pressure setting working hydraulics
(9 and 13 on hydraulic diagram)
3. Test outlet and pressure setting steering system
(15 and 2 on hydraulic diagram)
4. Test outlet servo pressure, not adjustable
((8 on hydraulic diagram)
5. Test outlet, brake pressure
(52 on hydraulic diagram)
6. Test outlet accumulator charging
(10 on hydraulic diagram)
7. Pre charging pressure, accumulators
