DCE80-100E
Technical Handbook
Main hydraulics
Description
14
P.Group 70
TDCE01
04GB
Attachment supply
One section in the main valve for each of the functions sideshift,
length adjustment 20’-40’ and twist-locks feeds the attachment
cylinders.
Only Standard hydraulic system.
See also Group 80 Side-lift attachment

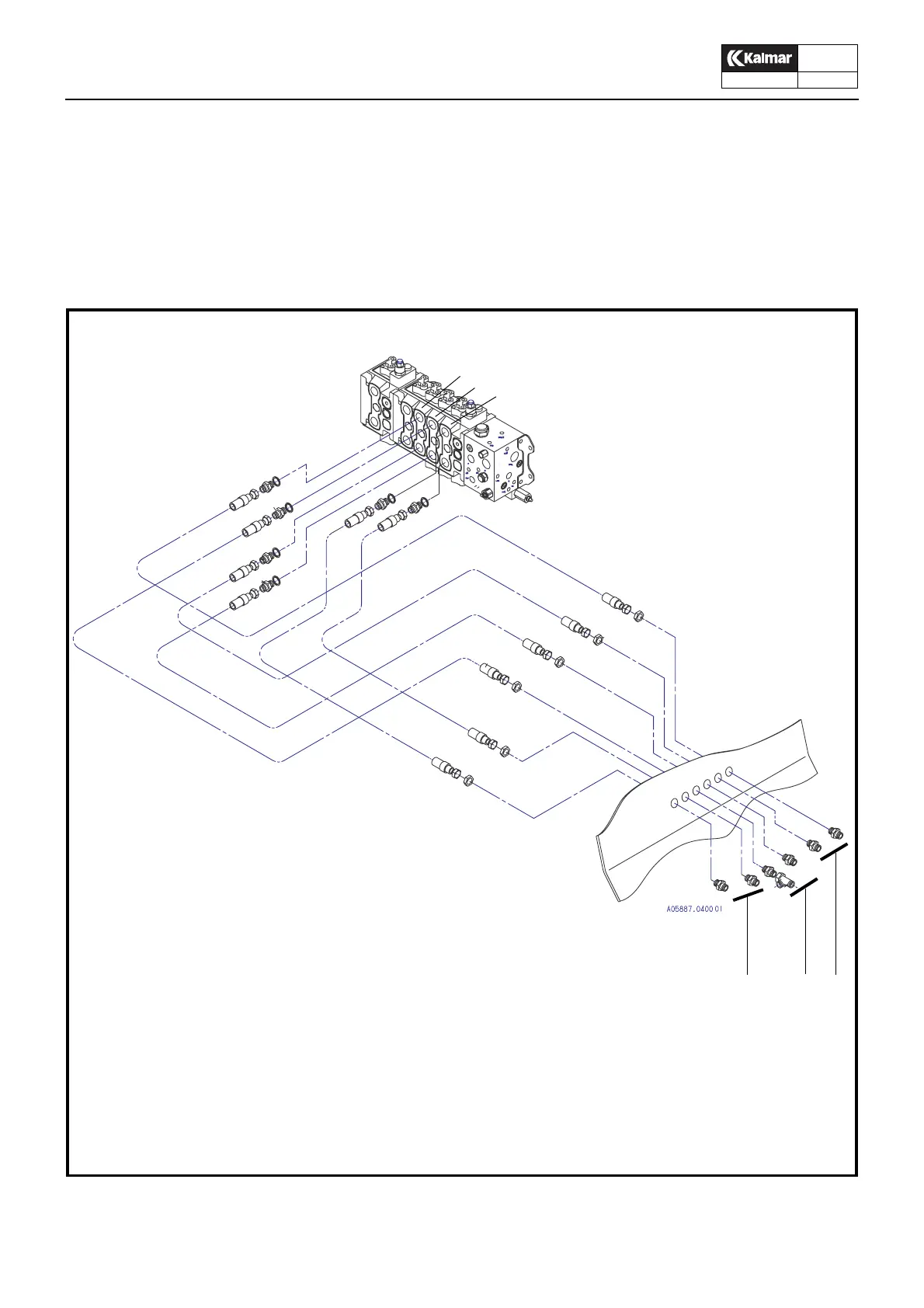

The numbers correspond to the hydraulic diagram
18. Control valve SIDESHIFT
19. Control valve LENGTH ADJUSTMENT
30. Supply cylinder SIDESHIFT
44. Control valve TWIST-LOCKS
47. Supply cylinders LENGTH ADJUSTMENT
48. Supply cylinders TWIST-LOCKS
48 47 30
Attachment supply
18
19
44
