DCE80-100E
Technical Handbook
Drive axle Kessler
Service
16
P.Group 40
TDCE01
04GB
Installing the brake on the axle
1. Check the sealing surfaces for the O-ring and apply a coat of
LOCTITE 270 to the contact surfaces on the b rake spider.
2. Push the brake onto the axle and screw on securely.

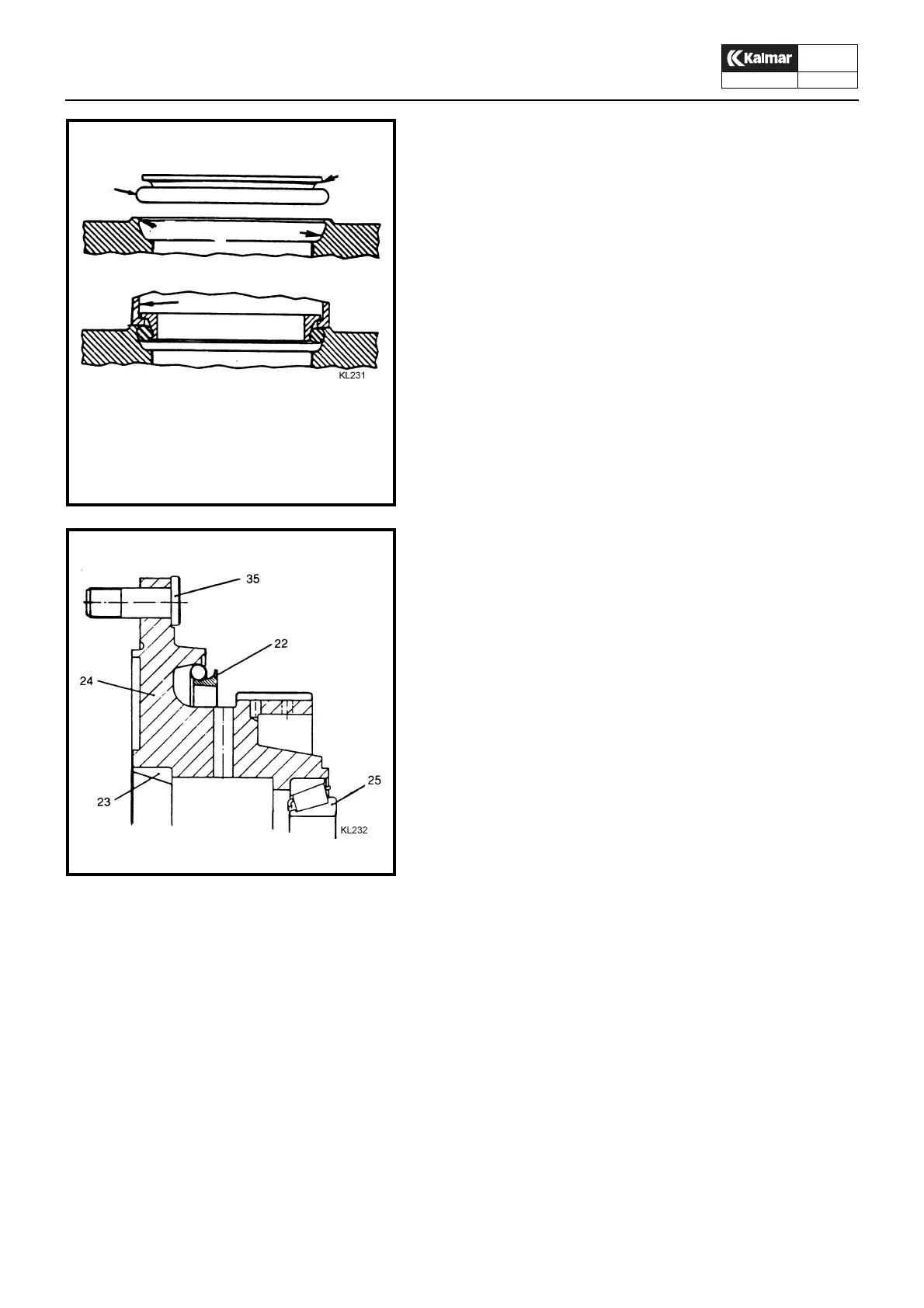

3. Fit the slide ring seal (20) into the brake housing (2) using an
installation tool.
– Lubricate the sealing ring seat
– Place the slide ring seal onto the tool; the tool presses
only on the O-ring;
– Push the O-ring over the blocking edge unti it snaps into
position;
– Lubricate the slide ring.
4. Screw the sheel studs (35) into the wheel hub (24).
5. Press the taper roller bearing’s cones (23) and (25) into the
wheel hub (24). N.B. Do not hit it!
6. Fit the slide ring seal (22) in the wheel hub (24). See also
item 3.
7. Fit the wheel hub.
1
2
3
4
5
1. O-ring
2. Slide ring
3. Blocking edge
4. Seat
5. Tool
