8. Align and centre the discs (4) using the tool. Apply pressure
to the discs with the help of the brake’s hydraulic system.
9. Fit the wheel hub onto the axle’s splines. Release the brake
pressure.

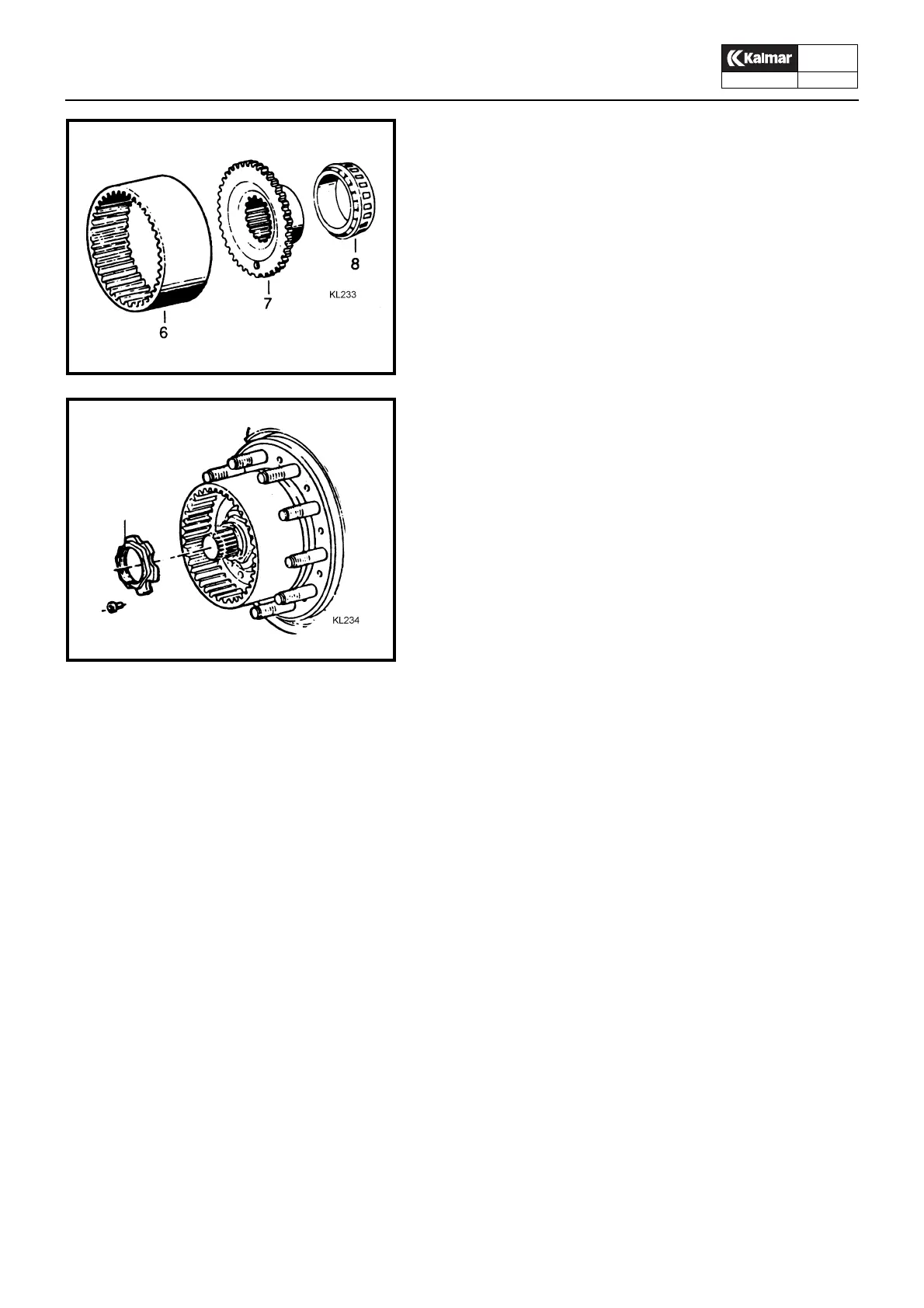

10. Insert the taper roller bearing (8) against the stop in the ring
gear carrier (7). Fit the ring gear (6) onto the ring gear carrier
and secure with screws.
11. Fit the ring gear carrier and ring gear onto the axle’s splines.
Turn the ring gear carrier so that the oil flow hole faces down-
wards. Then push the carrier and ring gear into the hub.
12. Screw the bearing nuts on and tighten them so that the hub
can be turned by hand only with some difficulty. Then un-
screw the bearing nut 1/8 of a turn and secure the nut. Check
the resistance to roll – in the case of new bearings it should
be about 11–17 Nm.
