Kalmar DCE80-100E - Adjusting the Support Wheels; Replacing the Support Wheels

DCE80-100E
Technical Handbook
Mast and carriage
Service
9
P.Group 80
TDCE01
04GB
Adjusting the support wheels in the carriage and
inner mast
1. Remove the carriage.
2. Use a drift to tap out the tubular dowel from the inside.
3. Screw in the clamping screw so that the wheel is firmly
locked.
4. Back off the screw until the wheel can be rotated but is some-
what stiff. Turn the clamping screw to line it up with the near-
est hole for the tubular dowel.
5. Tap in the tubular dowel to lock the clamping screw.
Replacing the support wheels in the carriage and
inner mast
1. Dismantle the carriage/inner mast.
2. Remove the circlip securing the support wheel.
3. Remove the support wheel using an extractor.
4. Remove the ball bearings and press in new bearings. Check
that the bearings are a close fit in the wheel.
5. Press on the wheel and fit the circlip.

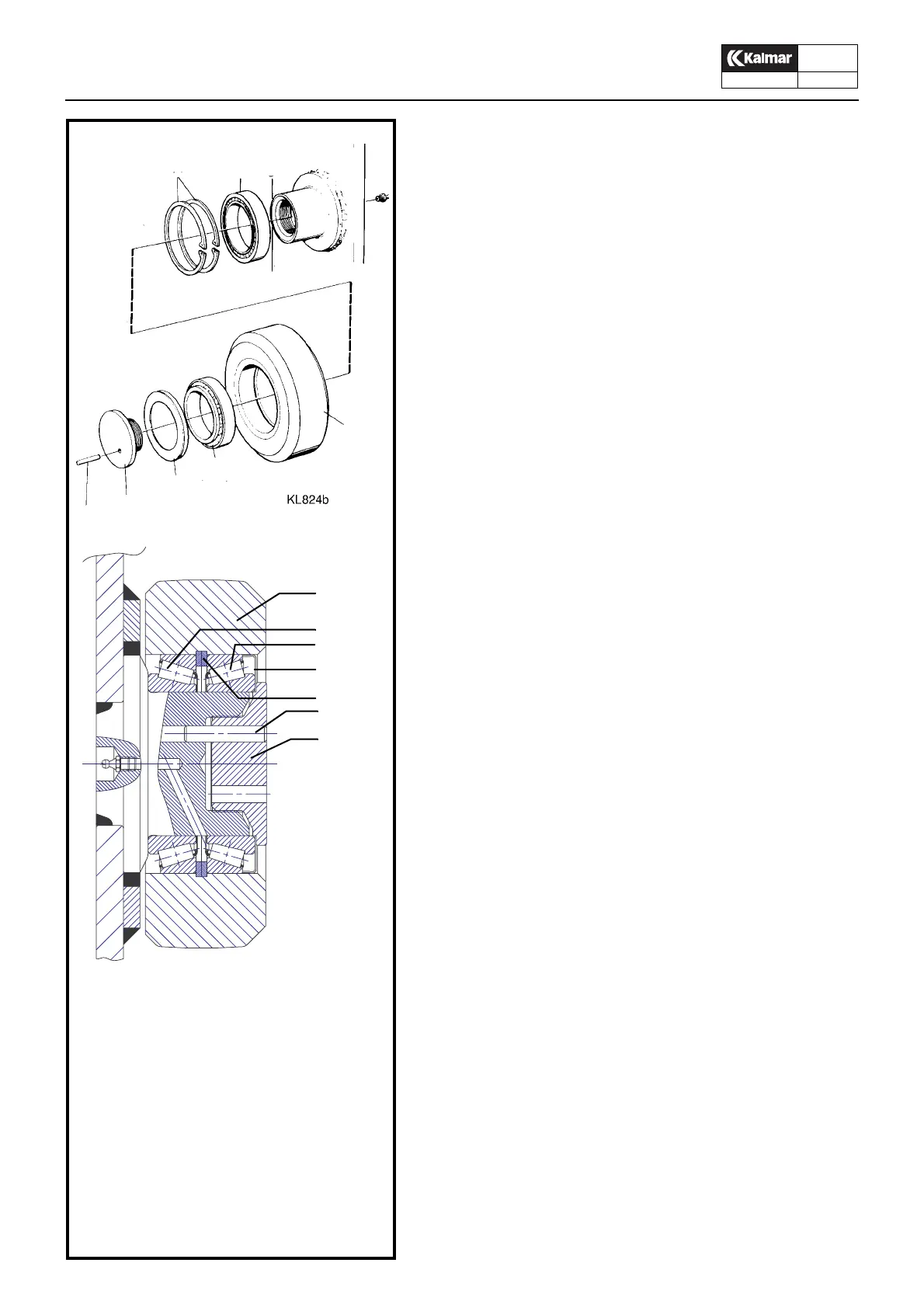

1. Circlip
2. Inner bearing
3. Tubular dowel
4. Clamping screw
5. Sealing washer
6. Outer bearing
7. Support wheel
8.
KL1683
1
2
3
4
5
6
7
7
2
6
5
1
3
4
