Kalmar DCE80-100E - Steering Column

DCE80-100E
Technical Handbook
Operator’s cab
Description
7
P.Group 10
TDCE01
04GB
Steering column
Surrounding the steering column are multi-function levers for
gear changing, indicators, windshield wipers, etc., as well as the
instrument panel with the ECS terminal. At the very foot of the
steering column is the steering valve (Orbitrol), activated by the
steering wheel via an angled gear. The steering column is
equipped with an adjustment handles for the alteration of steering
wheel height and rake.
KL1751
KL1752
KL580A
1
23
4
N
R
F
1
4
5
2
3
R
0
L
1
2
3
4
5

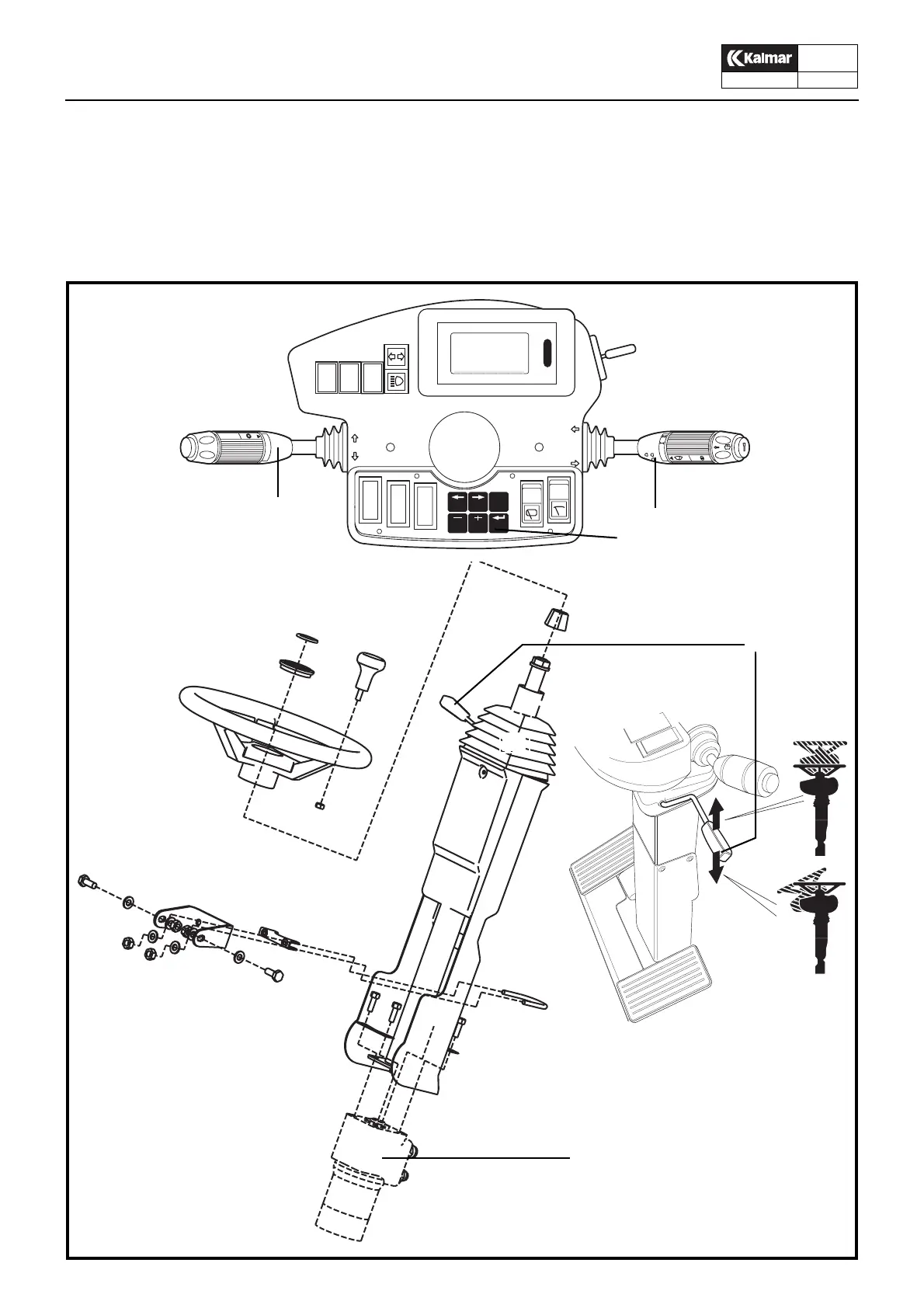

Steering column
1. Gear lever
2. Multi-function lever
3. ECS terminal
4. Steering wheel adjustment
handles
5. Orbitrol steering valve
