Operator’s cab
Description
6
P.Group 10
TDCE01
04GB
KL58
1
2
1
22
23
24
25
26
27
37
38
39
31
32
33
28
29
30
34
35
36
KL580
54
55 56 60 59
57 58 64 61 62 63
1
23
4
N
R
F
1
4
5
2
3
R
0
L

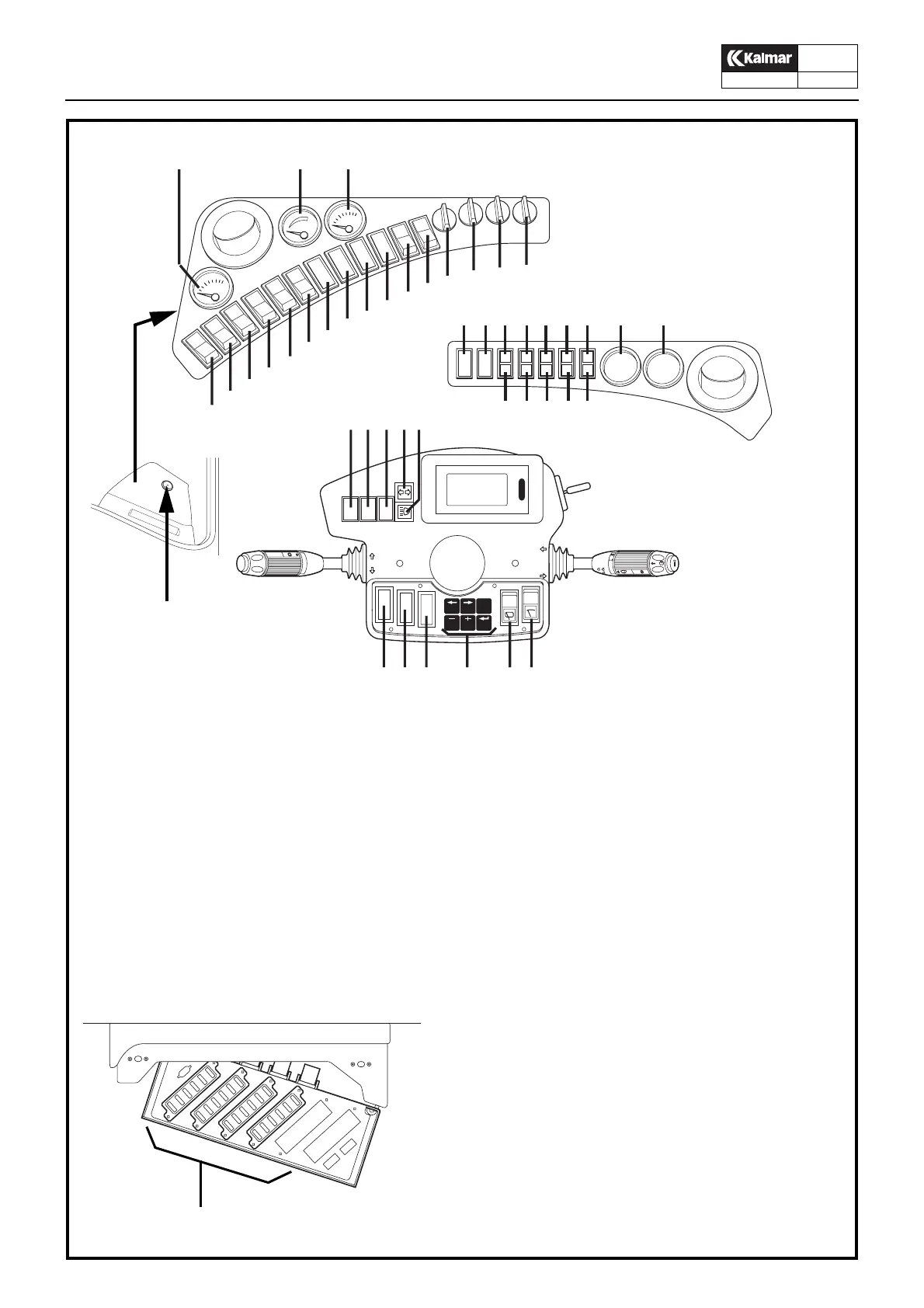

21. Pressure gauge, gearbox oil pressure
22. Fuel gauge
23. Temperature gauge, engine coolant temperature
24. Switch, working lights
25. Switch, working lights
26. Switch, working lights
27. Switch, flashing beacon
28. Switch, hazard warning lights
29. Switch, driving lights
30. Spare
31. Spare
32. Switch with lamp ENGINE MAINTENANCE
(QSB5.9)
33. Spare
34. Switch, compressor air conditioning 1)
35. Control, recirculation/fresh air
36. Control, defrost/cab
37. Switch, fan
38. Control, heat
39. Control, cold
1)
40. Switch with lamp DIAGNOSIS (QSB5.9)
41. a. Warning lamp STOP ENGINE (QSB5.9)
b. Indicating lamp CHECK ENGINE (QSB5.9)
42. Warning lamp, battery charging
43. Warning lamp, low engine oil pressure
44. Warning lamp, low gearbox oil pressure
45. Warning lamp, low brake pressure
(accumulator pressure)
46. Warning lamp, low engine coolant level
47. Indicating lamp, preheating
48. Warning lamp, high engine coolant temperature
49. Warning lamp, high gearbox oil temperature
50. Spare
51. Warning lamp, parking brake ON
52. Spare
53. Spare
54. Green lamp TWIST-LOCKS LOCKED
55. Orange lamp ALIGNMENT
56. Red lamp TWIST-LOCKS UNLOCKED
57. Spare
58. Spare
59. Indicating lamp, headlights
60. Indicating lamp, direction indicators
61. ECS terminal
1)
62. Switch, windscreen wiper, rear
63. Switch, windscreen wiper, roof
64. Spare
65. Fuses
66. Hour meter
1)
Optional
