DCE80-100E
Technical Handbook
Steering system
Description
19
P.Group 70
TDCE01
04GB
Steering system
The steering system comprises the steering valve and the steer-
ing cylinder. The system is supplied with fluid from the valve block
adjoining the main valve. An adjustable pressure limiting valve
provides the control pressure.
An LS signal from the steering valve actuates the priority valve in
the valve block to always ensure sufficient supply to the steering
system.

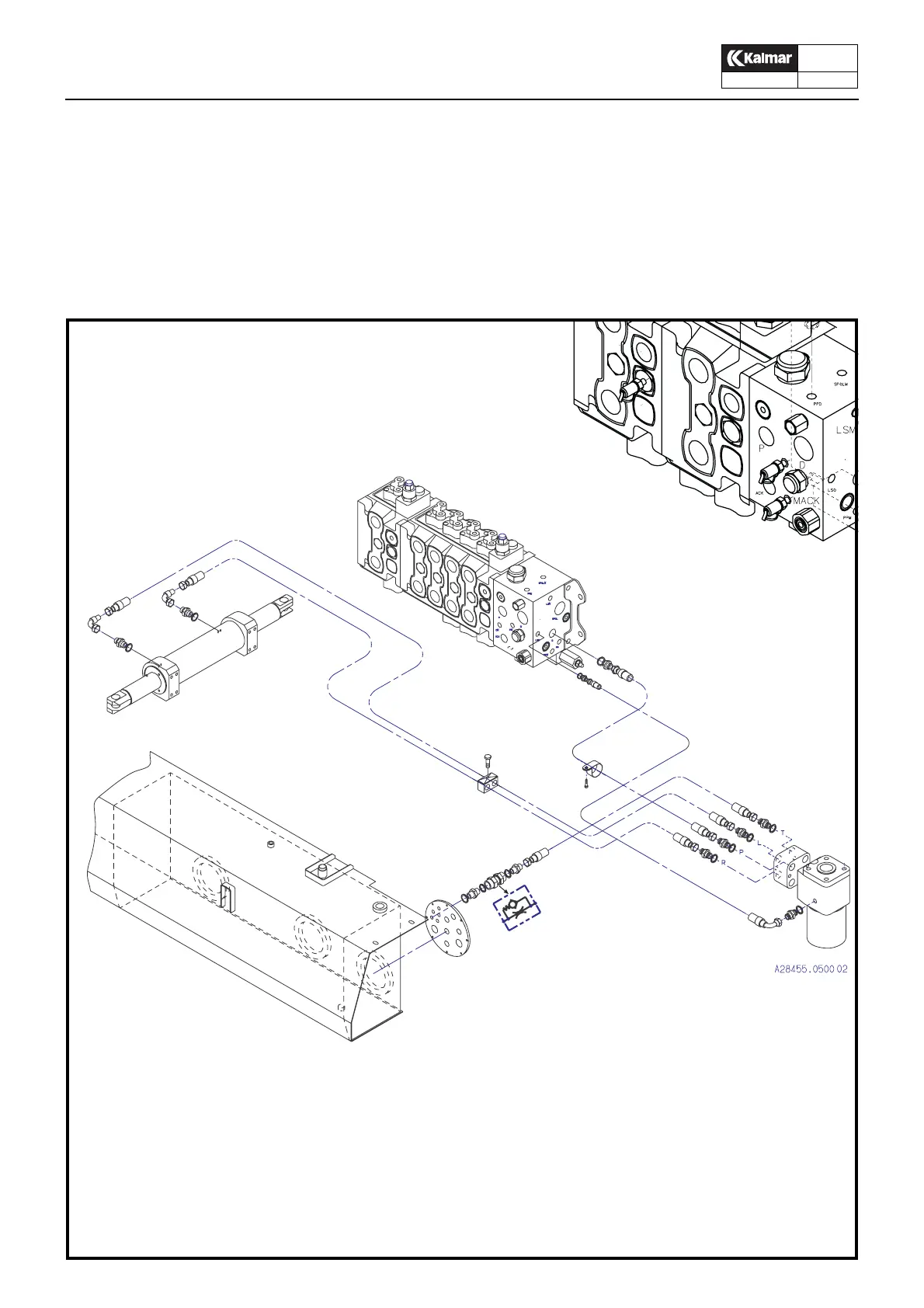

Steering system
The numbers corrspond to the hydraulic diagram
A = System with separat side-lift hydraulics
24. Steering valve
25. Steering cylinder
31. Tank
37. Throttle-check valve
24
37
25
31
KL1834
A
