DCE80-100E
Technical Handbook
Engine TAD720VE
Service
33
P.Group 30
TDCE01
04GB
Changing the fuel filter
1. Clean the outsides of the filter.
2. Remove the filter and discard it.
3. Clean the filter head.
4. Check that the new filter is perfectly clean and that the seal
is in good condition.
5. Fit the new filter canister and tighten them by hand until the
seal is in contact with the seating surface. Then tighten it a
further half a turn.
Fuel pre-filter, checking and filter replacement
1. Place a container underneath the filter
2. Drain condensate from the filter by opening the draining
valve 4, se picture.
3. Unscrew the filter container from the filter head.
4. Rinse the filter in diesel or replace it if necessary.
For new filter, moisten the new O-ring with fuel.
5. Fit the filter in the container and fit the O-ring.
6. Fasten the container to the filter head and tighten it by hand
until the O-ring is in contact with the seating surface. Then
tighten it a further half a turn.
7. Remove the collection container. The contained fuel should
be handled as environmentally dangerous waste.

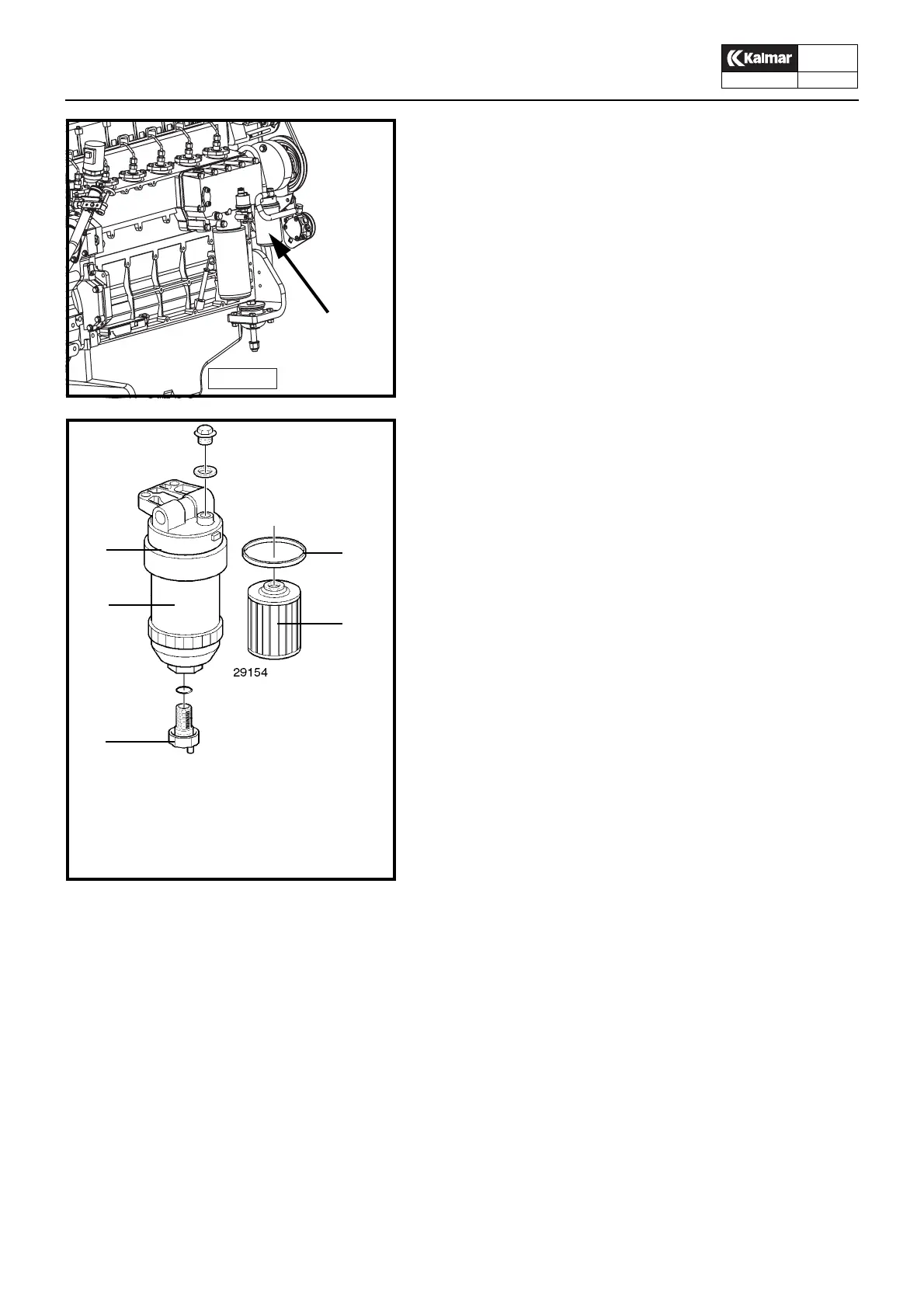

28516-1
1. Filter head
2. Sealing between filter head and filter
container
3. Filter insert, washable
4. Draining valve for condensate
5. Filter container
1
2
5
4
3
