DCE80-100E
Technical Handbook
Engine TWD731VE
Description
8
P.Group 30
TDCE01
04GB
Fuel shut off valve
At normal operation, the solenoid in the shut off valve is activated
and fuel is fed to the injection pump.
When the starting key is turned to 0, the solenoid valve is deacti-
vated and the flow is reversed. Thereby the feeder pump drains
the fuel from the injection pump resulting in engine shut down.
The check valve prevents return fuel from flowing into the injec-
tion pump.

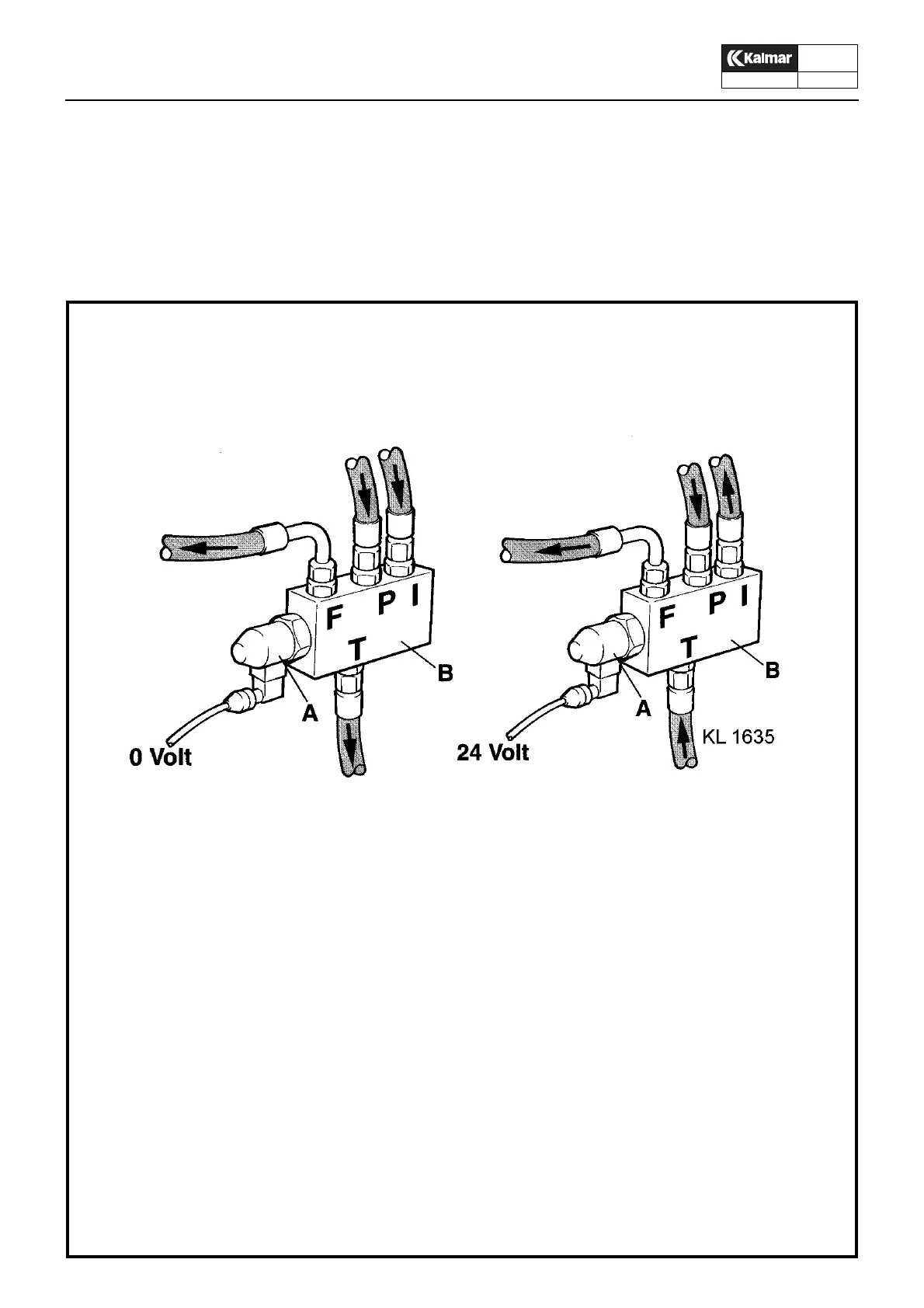

T. Inlet from fuel tank
F. Outlet to fuel pump
P. Inlet from fuel filter
I. Outlet to injection pump
Fuel shut off valve
Normal operationShut down
