DCE80-100E
Technical Handbook
Engine TAD720VE
Description
21
P.Group 30
TDCE01
04GB

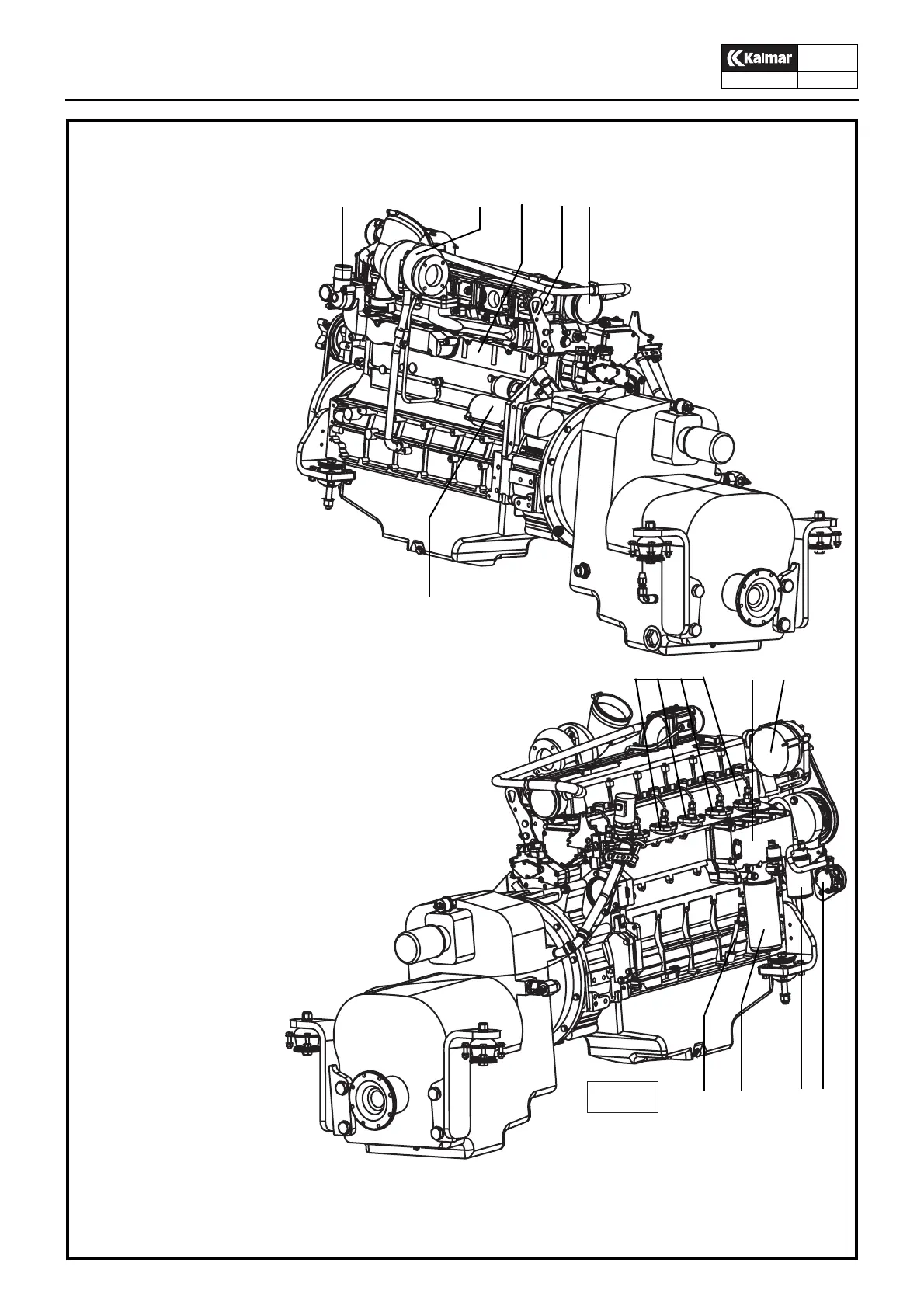

Engine Volvo TAD720VE
28516
12345
6
7
8 9
10 11 12 13
1. Coolant connection, outlet
2. Turbo-compressor
3. Manifold
4. Lifting eylet
5. Crankcase ventilation
6. Starter motor
7. Injection pump
8. Oil cooler
9. Generator
10. Oil dip stick
11. Full flow filter, of “spin-on” typ
12. Fuel filter of disposable type
13. Fuel pump
