DCE80-100E
Technical Handbook
Engine TAD720VE
Description
25
P.Group 30
TDCE01
04GB

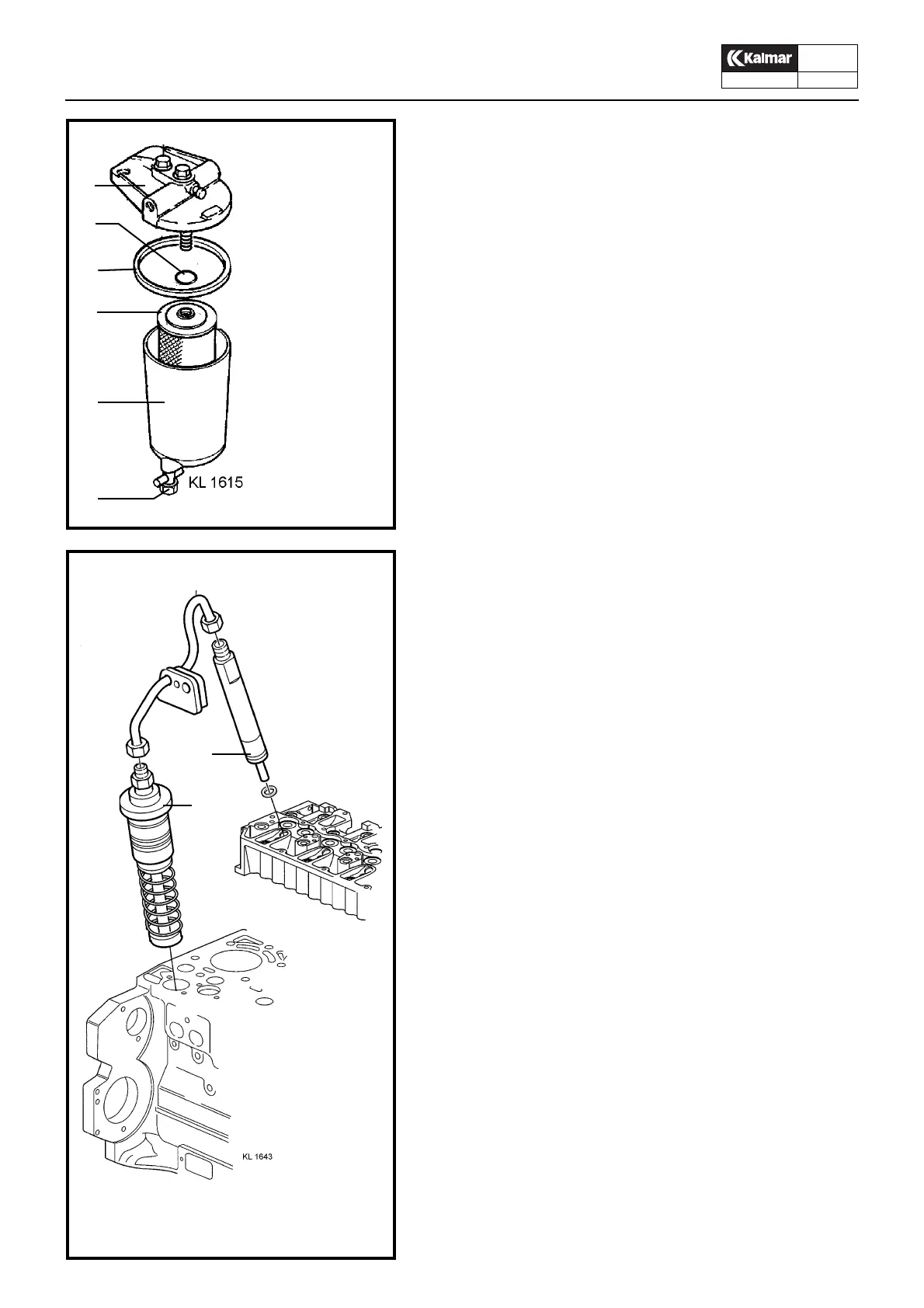

Fuel pre filter - with washable filter insert and draining valve for
condensate .
Injection pumps and injectors
The injection pumps are of the single type, e.g. one for each cyl-
inder and feed high pressure fuel to the injectors. These have an
opening pressure of 27.5 MPa. When adjustment of the injectors
is needed this has to be made separately with shims for every
single pump.
Bränsleförfilter
1. Filter holder
2. Sealing between fil-
ter holder and filter
insert
3. Filter insert, washa-
ble
4. Draining valve for
codensate
5. Filter container
6. Sealing ring
1
2
3
4
5
6
1
2
1. Injection pump
2. Injector
Insprutningspump och insprutare
