DCE80-100E
Technical Handbook
Engine Cummins QSB 5.9
Description
38
P.Group 30
TDCE01
04GB

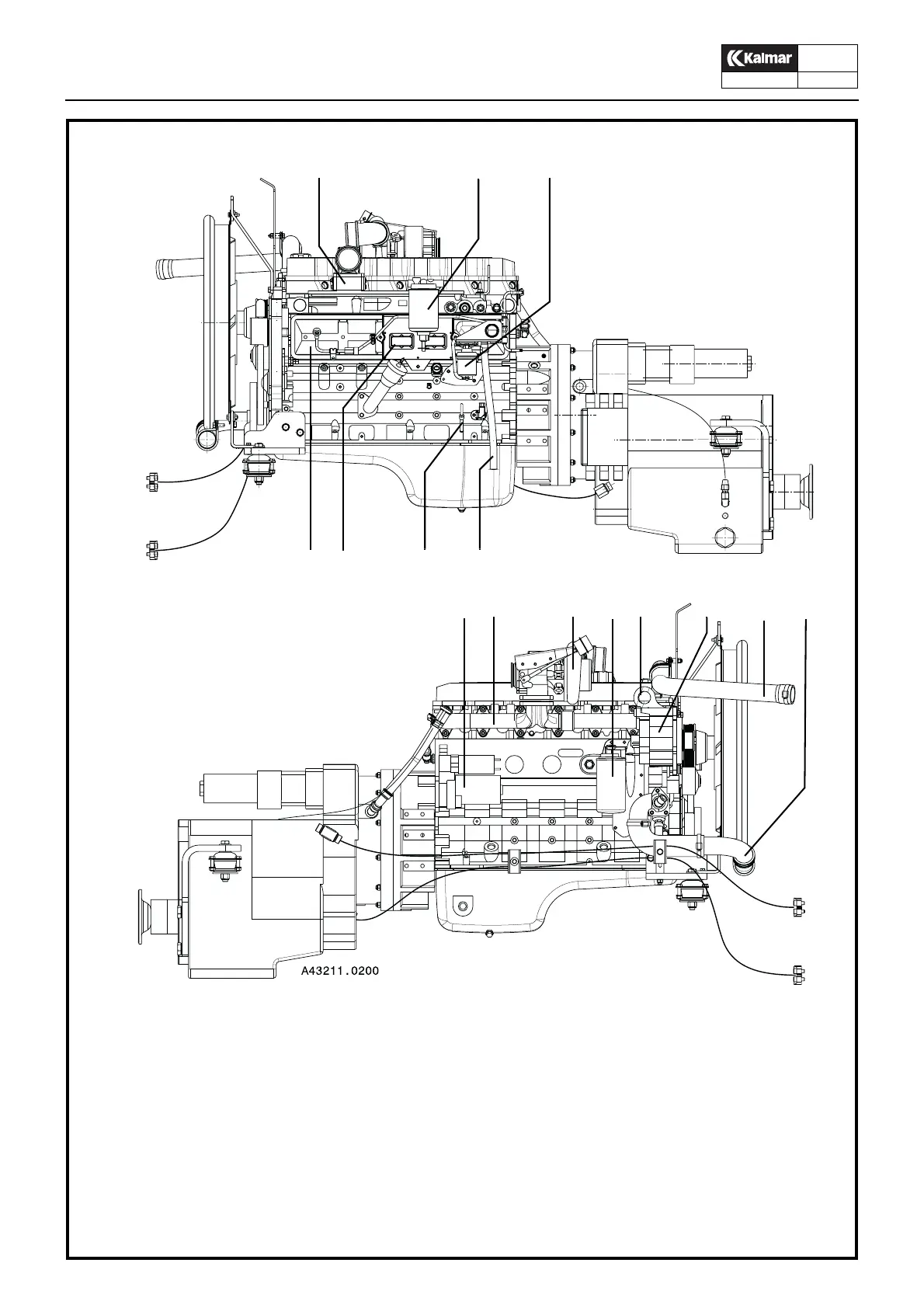

Engine Cummins QSB 5.9
1. Coolant outlet to charge air cooler
2. Turbo-compressor
3. Air cooled manifold
4. Lift eyelet
5. Crankcase ventilation
6. Starter motor
7. Injection pump
8. Oil cooler
9. Alternator
10. Oil dip stick
11. Full flow filter, of “spin-on” typ
12. Fuel pre-filter with condensate separator
13. Fule lift pump
14. Electroninc control unit
15. Inlet manifold heater
16. Coolant inlet to engine
KL1699
15 12 13
714 10 5
63 2 4 9 111 16
