DCE80-100E
Technical Handbook
Steering axle
Service
7
P.Group 60
TDCE01
04GB
Assembly
1. Tap the outer race of the upper bearing into the steering cra-
dle from below, using a piece of tube.
2. Fit the screw back into the drift holes. Seal with sealing com-
pound.
3. Attach the following parts to the knuckle pin: upper bearing’s
inner race and sealing, lower bearings nut, tab washer, spac-
er and inner race.
4. Mount the knuckle pin.
5. Tap the outer race of the lower bearing into the steering cra-
dle.
6. Tighten the cover and sealing upon the lower bearing.
7. Check that the knuckle pin rotates smoothly with a maximum
play of 0.25 mm. if not, adjust with the bearing nut and lock
with the tab washer. Make sure that the sealing ring align
tightly.
8. Lubricate the bearings by means of the lubricators.
9. Mount the link lever.
10. Mount the steering wheel bearing. See Replacement of
steering wheel bearing, Assembly.
Miscellaneous
The steered wheel alignment is not adjustable. If the link levers
have been deformed so that the wheel alignment has been dis-
turbed, the link levers must be replaced.

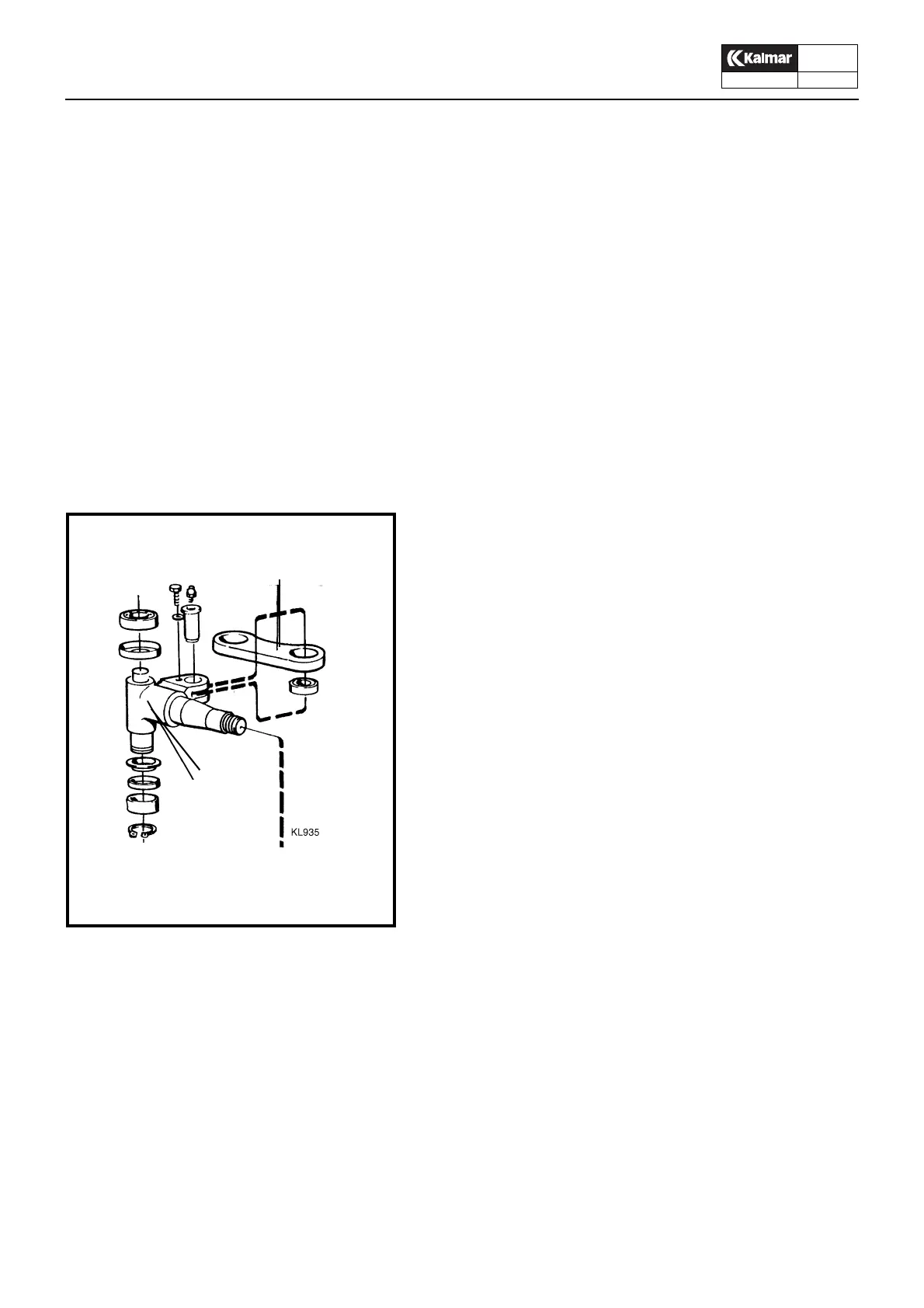

NOTE. The orientation of the link levers must be correct, since
they will otherwise be damaged by the wheels when the steering
movements are large. The correct orientation of the levers is
shown in the figure.
1. Link lever
2. Knuckle pin
1
2
