DCE80-100E
Technical Handbook
Steering system
Description
21
P.Group 70
TDCE01
04GB
1. Dust cover
2. Body – spool – sleeve
3. Ball
4. Threaded bush
5. O-ring
6. Guide ring
7. Front bearing race
8. Needle bearing holder
9. Rear bearing race
10. Ring
11. Pin
12. Neutral position springs, 1 set
13. Shaft
14. Spacer
15. O-ring
16. Distributor plate
17. Gear set
18. O-ring
19. End plate
20. Washer
21. Pin
22. Screw with drilled head
23. Locking wire
24. Nameplate
25. Self-tapping screw
26. Spacer
27. Spacer

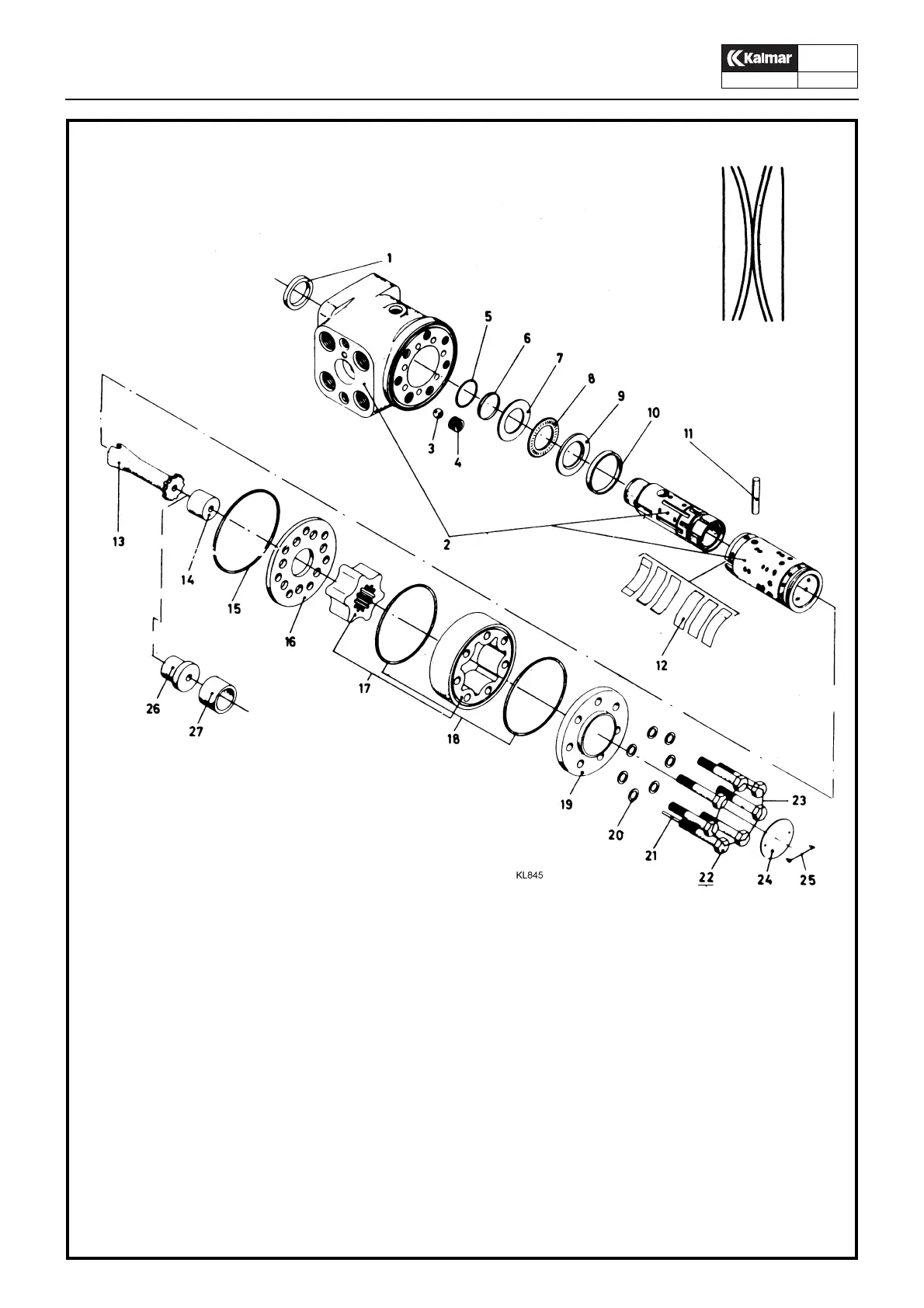

Steering valve
Item 12 – assembly pattern
Tightening torquet: 30±5 Nm
