Kalmar DCE80-100E - Page 26

DCE80-100E
Technical Handbook

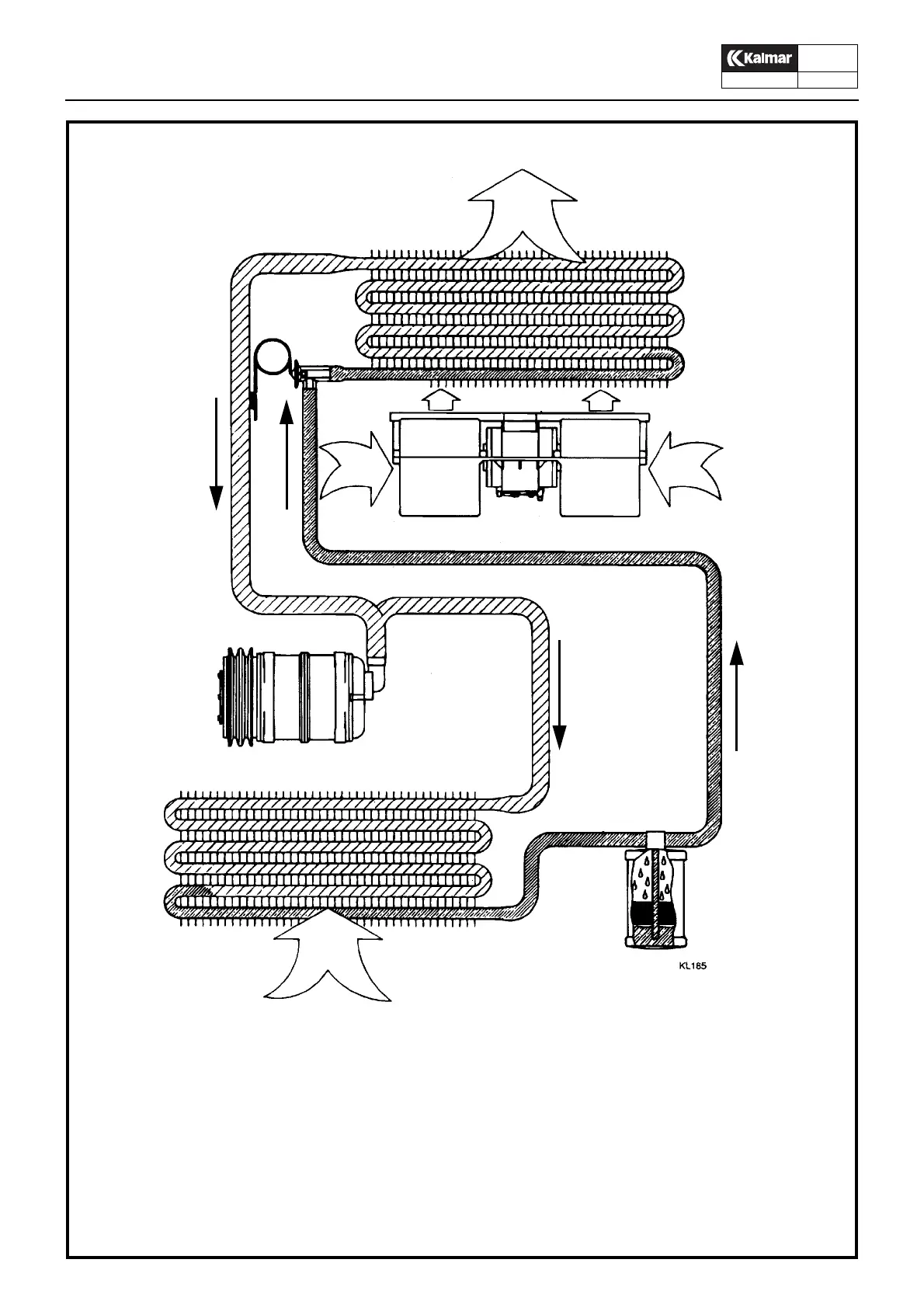

Air conditioning unit
Description
12
P.Group 10
TDCE01
04GB
1. Liquid receiver/filter dryer
2. Evaporator
3. Fan
4. Expansion valve
6. Condenser
7. Compressor
A High-pressure gas
B High-pressure liquid
C Low-pressure liquid
D Low-pressure gas
E Warm air in cab
F Cooled air to the cab
G Outside air for removing heat
F
E
C
E
D
2
3
4
A
B
7
6
G
1
