Kalmar DCE80-100E - Page 272

DCE80-100E
Technical Handbook
Lifting mast and fork carriage
Service
12
P.Group 80
TDCE01
04GB
KL1125
5
1

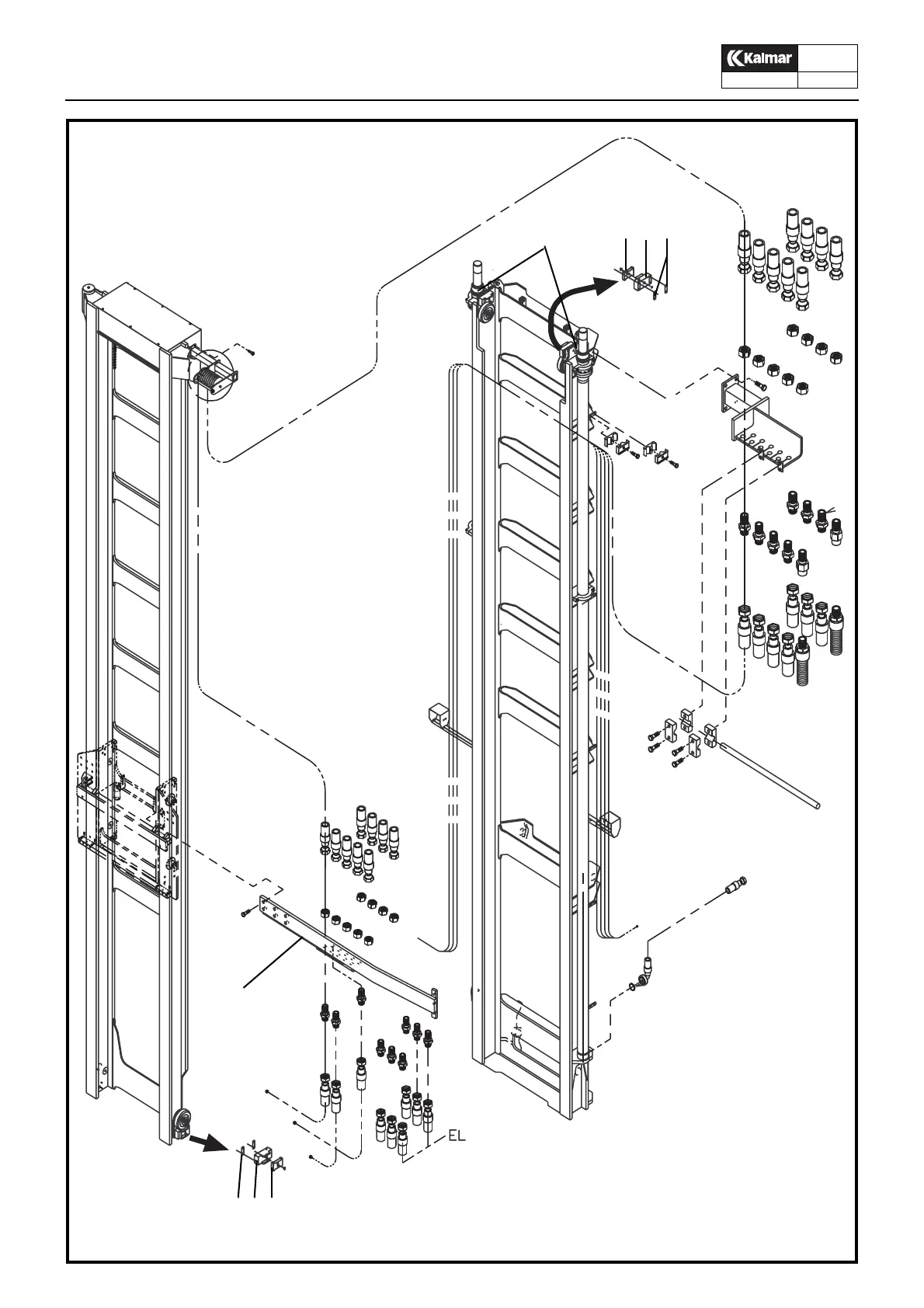

1. Bleed nipples at the top of the lift cylinders
2. Shim
3. Sliding plate holder
4. Sliding plate (x 4)
5. Hose holder, mounted on carriage
2
3
4
432
High-Lift Mast
