DCE80-100E
Technical Handbook
Sidelift attachment
Description
14
P.Group 80
TDCE01
04GB
KL1687
KL1688
4
5
6
12
3 4
78
910
11

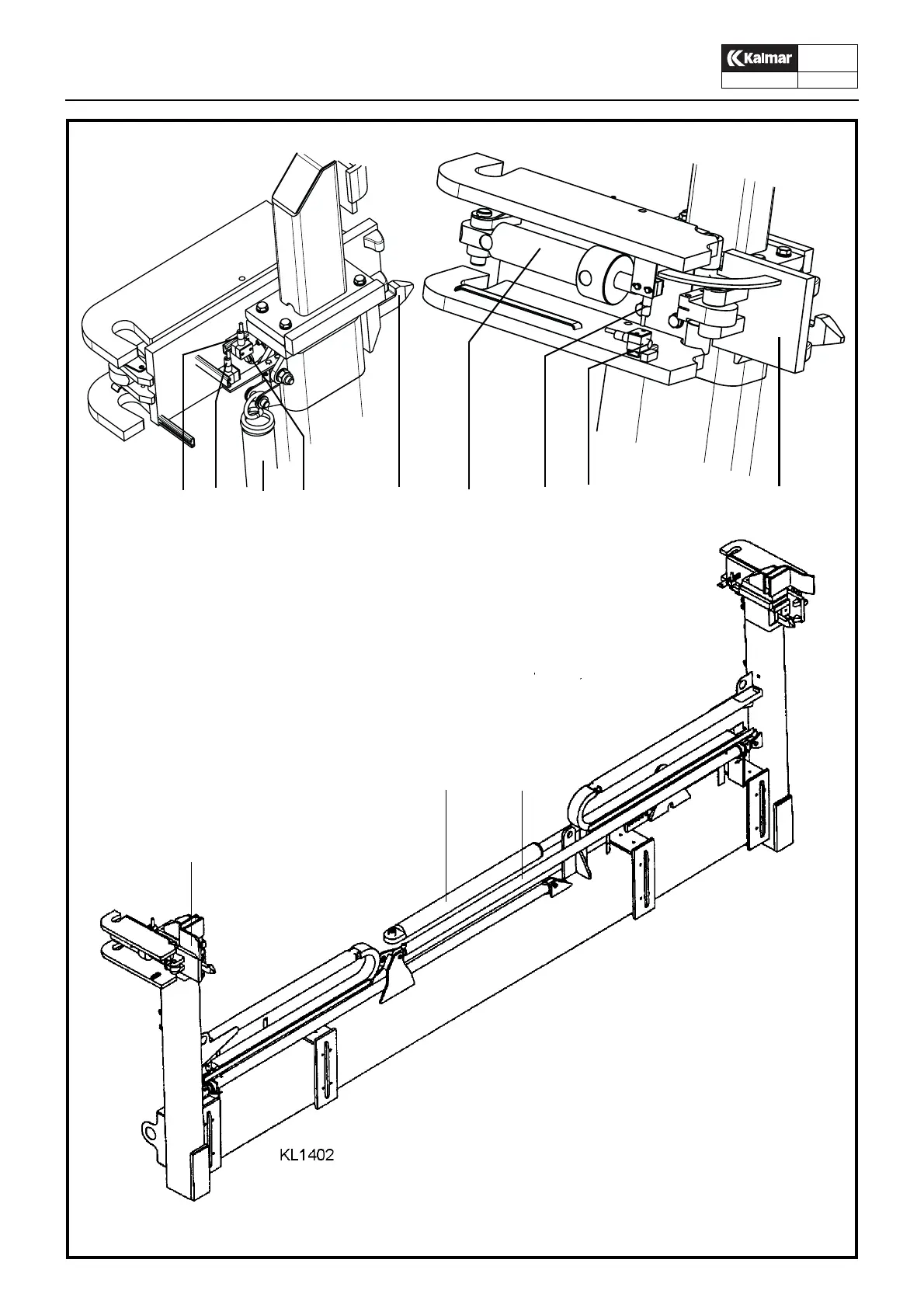

1. Hook for container coupling
2. Spring for mechanical levelling
3. Hydraulic cylinder, side locking plate
4. Side locking plate
5. Hydraulic cylinder, sideshift
6. Hydraulic cylinder, length adjustment 20'-40
7. Sensor, alignment against container
8. Sensor, alignment on hooks
9. Sensor, lockings plates locked
10. Sensor, locking plates released
11. Spring loaded contact pin, alignment against
container
Sidelift with hook-coupling
