Output using Pulse Transmitter/Pulse Divider with galvanic separated output module (Y=3)
Type Open collector. Three-wire connection via the built-in 39.2 k pull-up resistor.
Module Y=3 OC and OD
Max input voltage 6 V
Max input current 0,1 mA
ON condition U ≤ 0,3 V @ 0,1 mA
OFF condition R ≥ 6 MΩ

Table 19


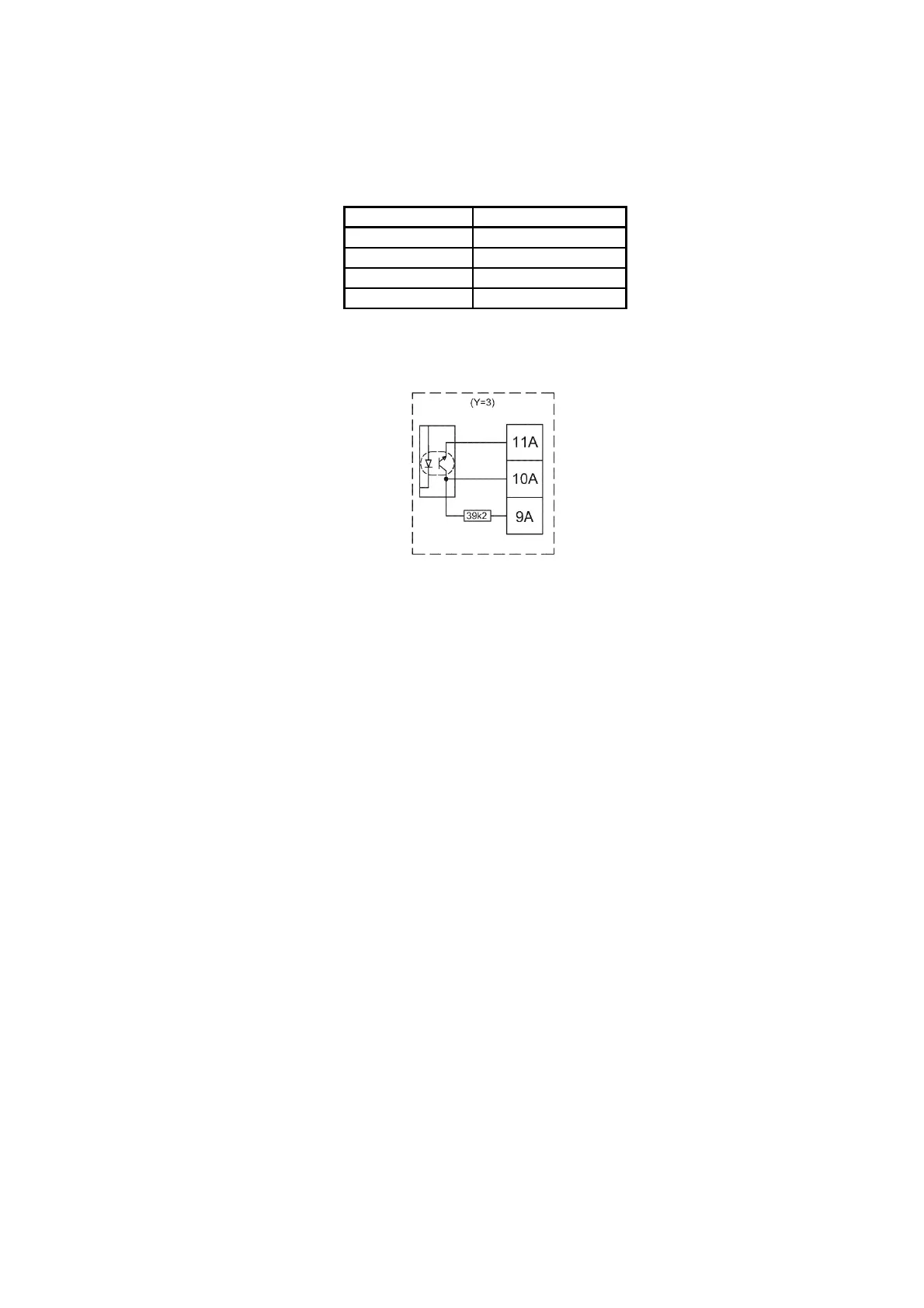

Figure 49. Block diagram for galvanic separated output module (Y=3).
