ULTRAFLOW®54(H)/(J)
KamstrupA/S∙TechnicalDescription∙5512‐1554_J1_GB_04.2018
61
(a) (b)

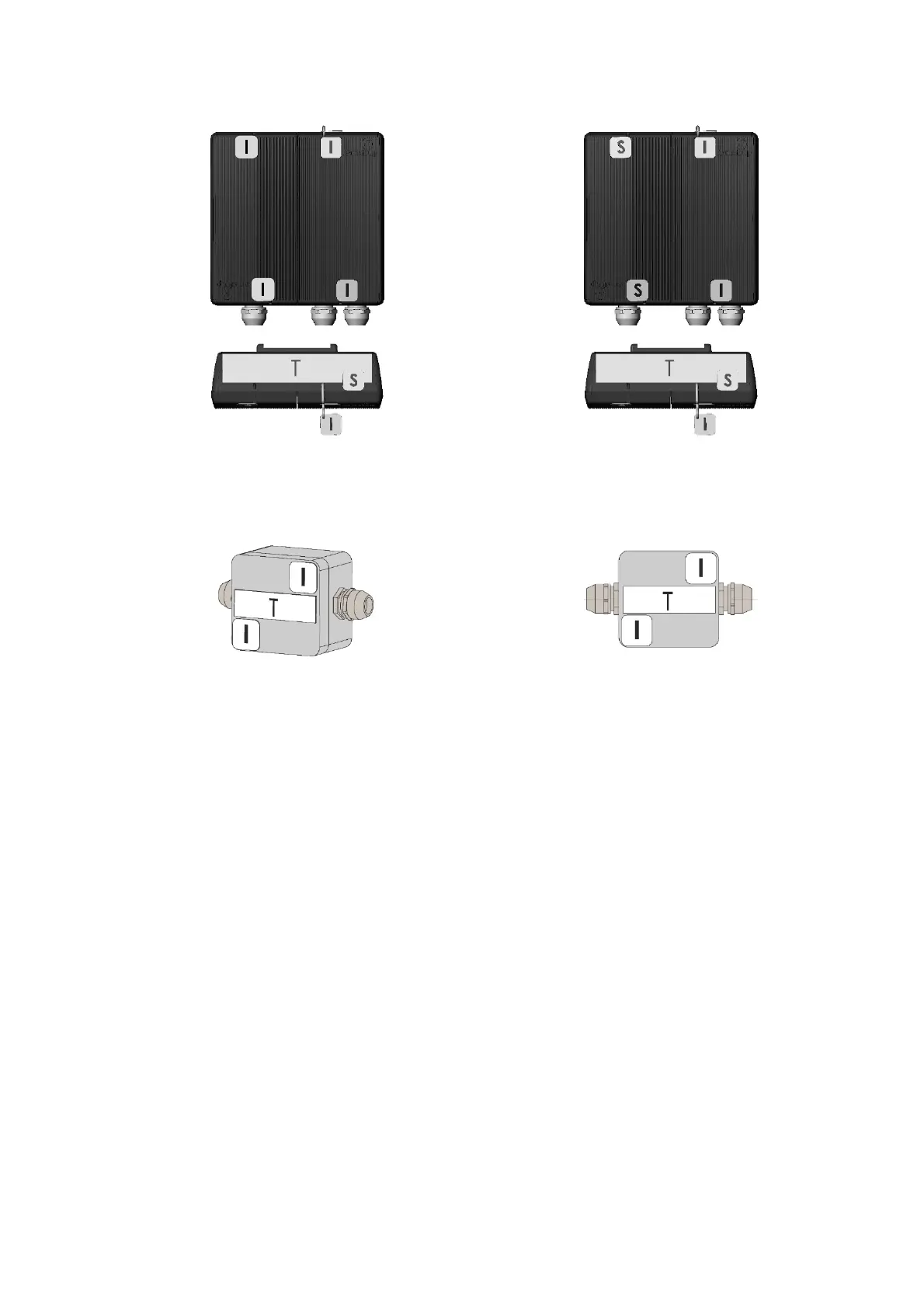

Figure 57. MID-sealing of Pulse Transmitter (a)/ Pulse Divider (b).
(a) (b)
Figure 58. MID-sealing of Cable Extender Box seen from an angle (a) and from the front (b).
Sealing is divided into the following groups in the drawings:
D Module D/F label or sealing label (depending on type label).
S Laboratory marking. Sealing of screw.
T Type label (as void label or with security seal D).
I Installation seal (wire and seal or sealing label).
Note: Sealing requirements may vary as a consequence of national regulations.
