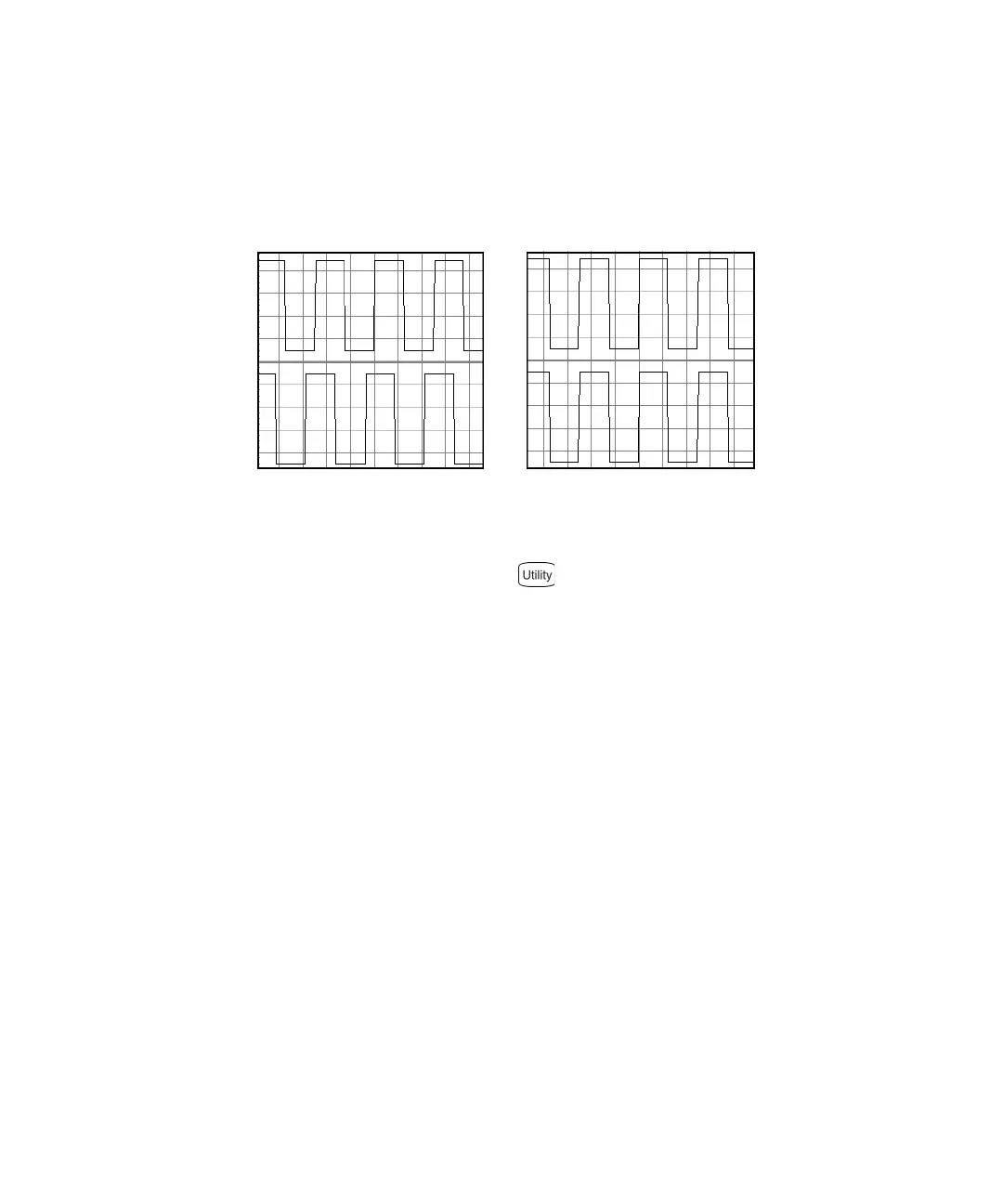

4 Leaving the phase setting at its default (zero) on the first 33210A, use the
Adjust Phase feature to adjust the phase of the second 33210A to align the
output signals:
You can use the Set 0 Phase feature to set a new zero-phase reference point
with the two function generators now aligned.
– Front-Panel Operation: Press and select the Output Setup, softkey, then
Adjust Phase. Set the phase angle (±360 degrees) using the knob and cursor
keys or the numeric keypad. Once you have aligned the signals on the scope,
press Set 0 Phase to set a new zero-phase reference point.
– Remote Interface Operation: Use the following command to set the phase
offset (the query returns the currently set offset):
PHASe {<angle>|MINimum|MAXimum}
PHASe? [MINimum|MAXimum]
– The following command sets a new zero-phase reference point:
PHASe:REFerence
Application Note 1426: “How to Connect Two or More Signal Generators to
Create a Multi-Channel Waveform Generator” provides additional information on
this subject.
