Front-Panel Menu Operation 2
Keysight 33210A User’s Guide 47
To Select the Output Termination
The Keysight 33210A has a fixed series output impedance of 50 ohms to the
front-panel Output connector. If the actual load impedance is different than the
value specified, the displayed amplitude and offset levels will be incorrect. The
load impedance setting is simply provided as a convenience to ensure that the
displayed voltage matches the expected load.

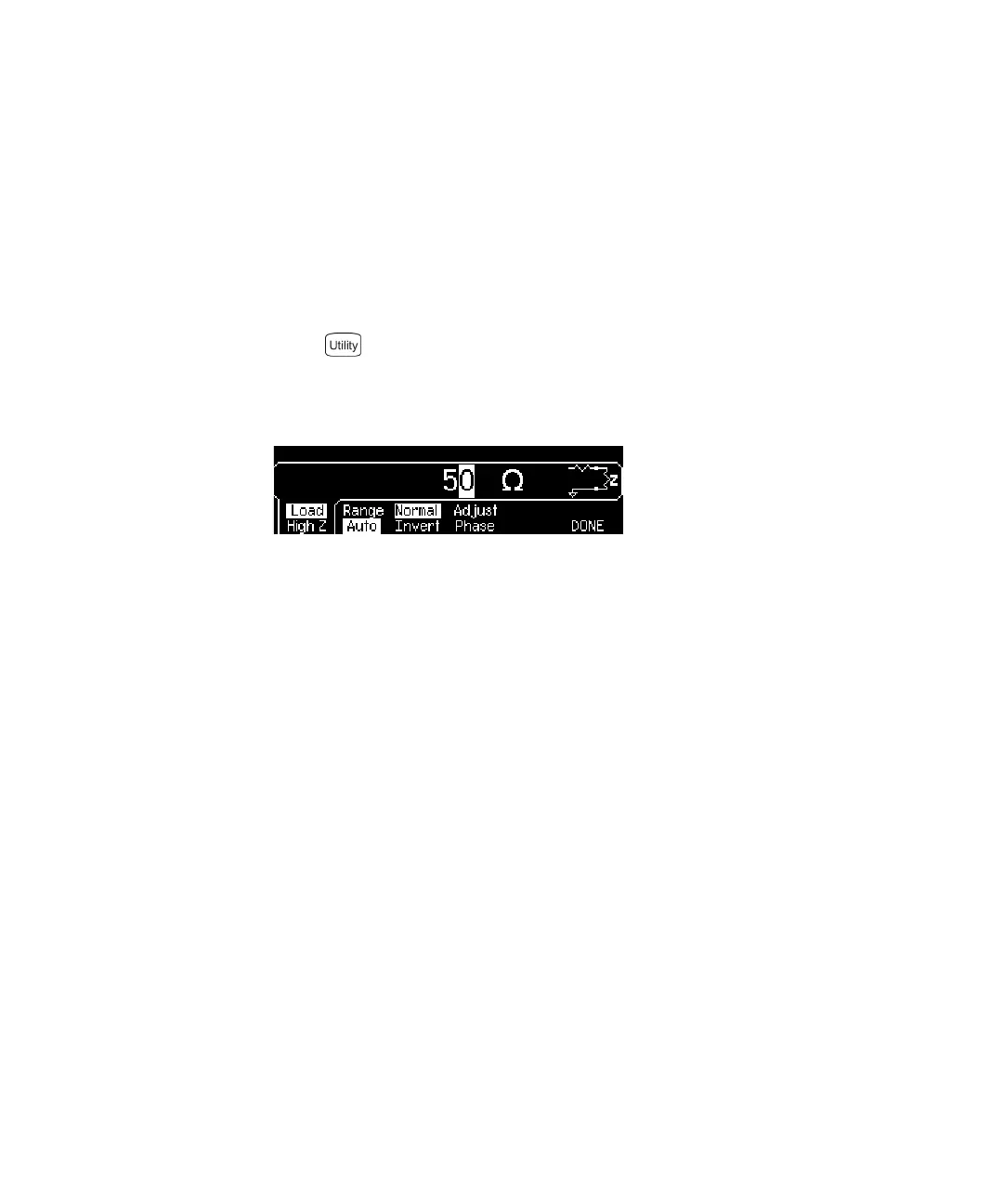

1 Press .
2 Navigate the menu to set the output termination.
Press the Output Setup softkey and then select the Load softkey.
3 Select the desired output termination.
Use the knob or numeric keypad to select the desired load impedance or press
the Load softkey again to choose “High Z”.
