Quick Start 1
Keysight 33210A User’s Guide 35

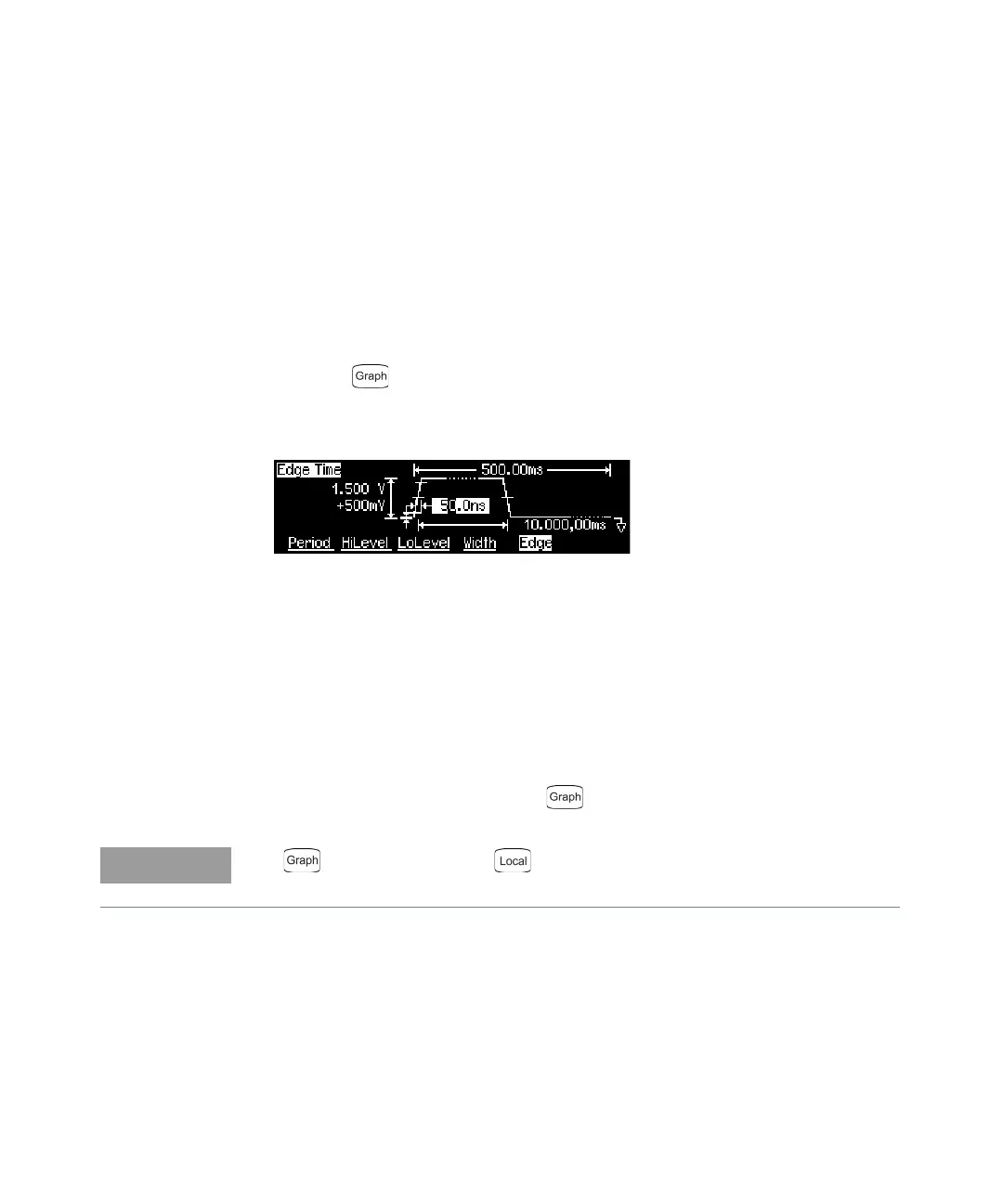

To View a Waveform Graph
In the Graph Mode, you can view a graphical representation of the current
waveform parameters. The softkeys are listed in the same order as in the normal
display mode, and they perform the same functions. However, only one label (for
example, Freq or Period) is displayed for each softkey at one time.
1 Enable the Graph Mode.
Press the key to enable the Graph Mode. The name of the
currently
selected
parameter,
shown in the upper-left corner of the display, and the
parameter’s numeric value field are both highlighted.
2 Select the desired parameter.
To select a specific parameter, note the softkey labels at the bottom of the
display.
For example
, to select period, press the Period softkey.
– As in the normal display mode, you can edit numbers using either the
numeric keypad or the knob and cursor keys.
–
Parameters which normally toggle when you press a key a second time
also
toggle in the Graph Mode. However, you can see only one label for each
softkey at one time (for example, Freq or Period).
– To exit the Graph Mode, press again.
The key also serves as a key to restore front-panel control after
remote interface operations.
