Remote Interface Reference 4
Keysight 33210A User’s Guide 241
2 Select the waveform frequency, amplitude, and offset.
Use the APPLy command or the equivalent FREQ, VOLT, and VOLT:OFFS
commands to select the frequency, amplitude, and offset of the waveform
.
3 Copy the arbitrary waveform to non-volatile memory.
You can output the arbitrary waveform directly from volatile memory or you
can copy the waveform to non-volatile memory using the DATA:COPY
command.
4 Select the arbitrary waveform to output.
You can select one of the five built-in arbitrary waveforms, one of
four user-defined waveforms, or the waveform currently downloaded
to volatile memory. Use the
FUNC:USER
command to select the waveform.
5 Output the selected arbitrary waveform.
Use the FUNC USER command to output the waveform previously selected with
the FUNC:USER command.

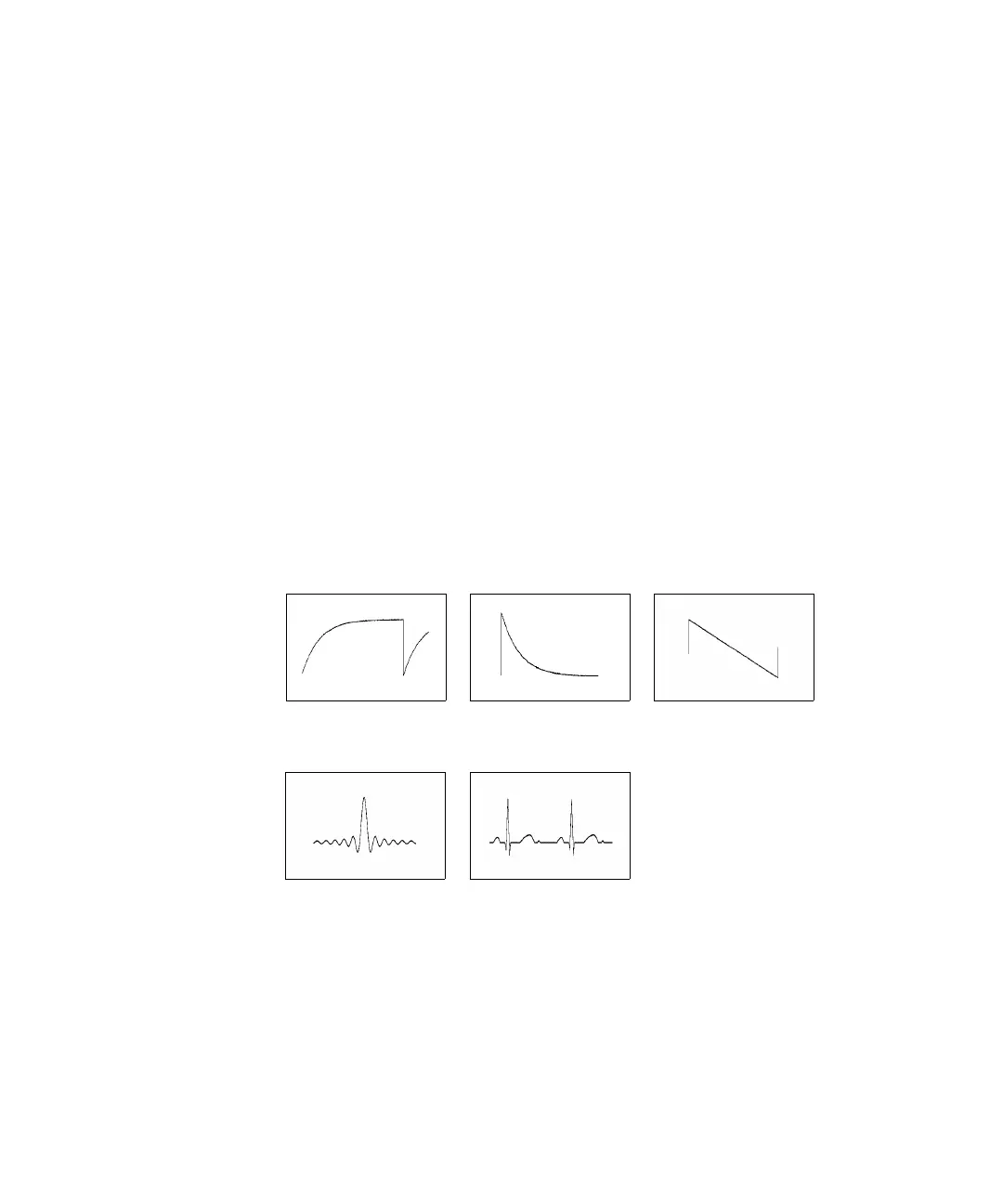

The five built-in arbitrary waveforms are shown below.
Exponential Rise Exponential Fall Negative Ramp
Sinc Cardiac
