2 Front-Panel Menu Operation
54 Keysight 33210A User’s Guide
4 Set the stop frequency.
Press the Stop softkey and then set the value to 5 kHz using the numeric
keypad or the knob and cursor keys.

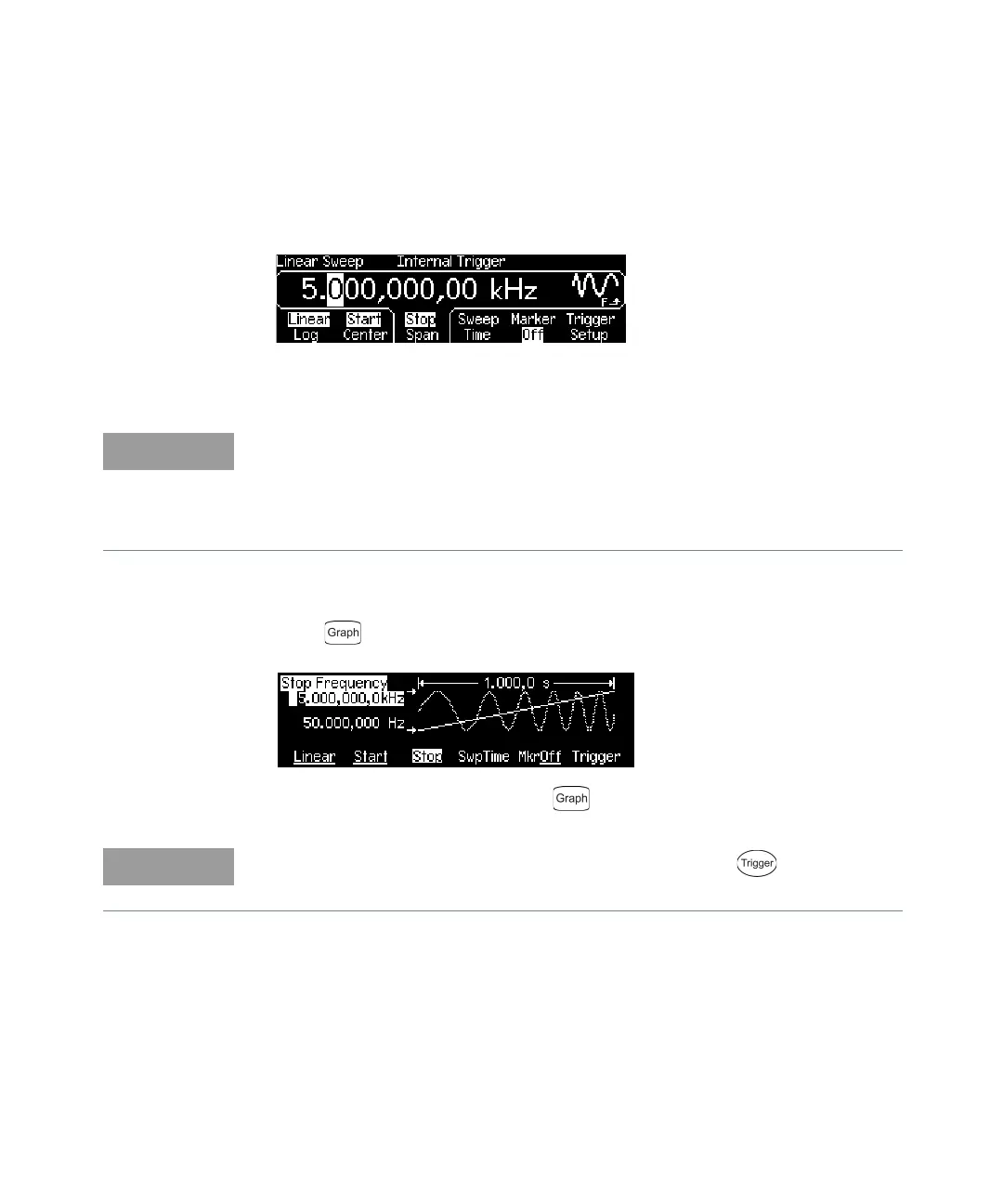

At this point, the function generator outputs a continuous sweep from 50 Hz to
5 kHz (if the output is enabled).
5View the waveform.
Press t
o view the waveform parameters.
To turn off the Graph Mode, press again.
If desired, you can set the frequency boundaries of the sweep using a center
frequency and frequency span. These parameters are similar to the start
frequency and stop frequency and are included to give you added flexibility. To
achieve the same results, set the center frequency to 2.525 kHz and the
frequency span to 4.950 kHz.
You can generate a single frequency sweep by pressing the key.
For more information, see “To Trigger a Sweep or Burst” on page 57.
