3.13.4 Gated Burst Mode
Introduction

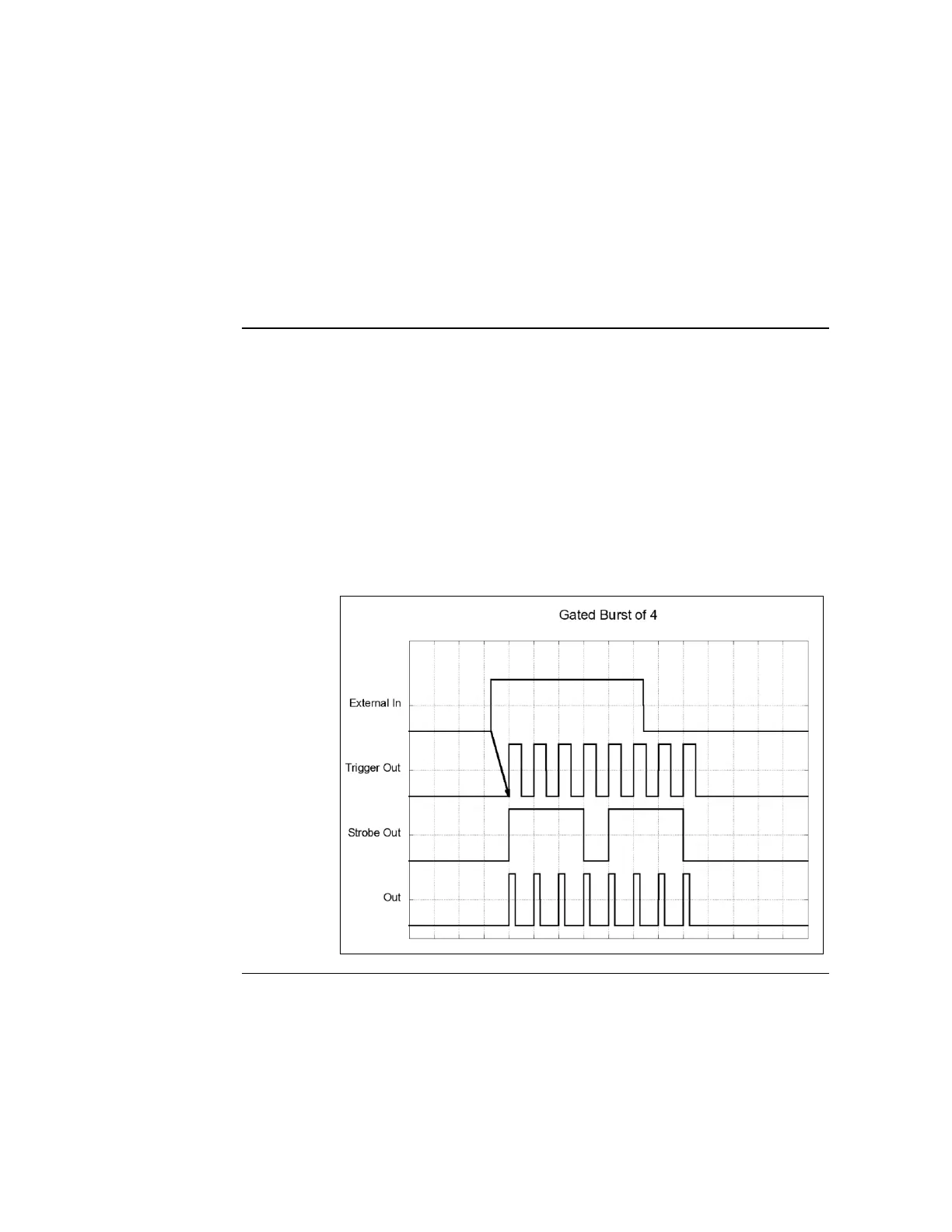

The following figures show typical timings for trigger mode Gated and Burst
enabled.
Characteristics
Bursts of waveform cycles are enabled by (Gated by) an active level at the
selected arming source:
 Man key on front panel, gated while pressed or released or both.
 External Input (External signal) gated while high or low or both.
You can select the number of cycles per burst in the range 2 to 1,000, 000.
Trigger Out marks each cycle.
Strobe Out rises at the start of the first cycle in a burst and falls at the start
of the last cycle.
