Keysight 81150A - The Rear Panel

Appendix
28
2.5 The Rear Panel
Introduction
The rear panel contains:
 GP-IB connector
 USB device connector
 LAN connector
These three are used for remote control of the instrument.
 Channel 1 Modulation In
 Channel 2 Modulation In
 10 MHz Clock Ref-In
 10 MHz Clock Ref-Out
A USB Host Connector is used to connect external USB storage device for
storing instrument settings or software updates.
4 5 6 7 8 921 3

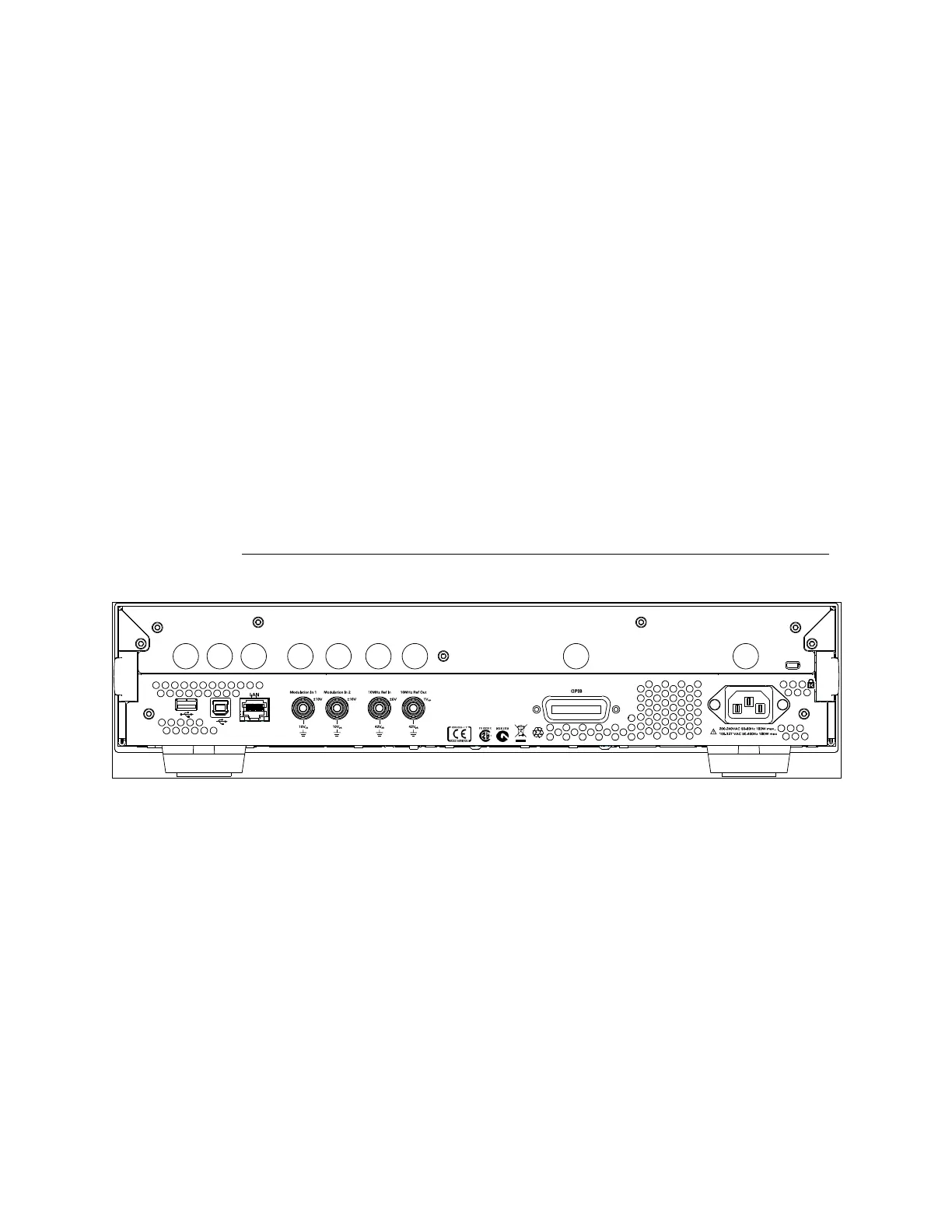

Rear panel of the 81150A
1 USB Interface Connector (Host type for external mass memory)
2 USB Interface Connector (device type for remote programming)
3 LAN Interface Connector
4 Channel 1 External Modulation Input Terminal
5 Channel 2 External Modulation Input Terminal
6 External 10 MHz Reference Input Terminal
7 10 MHz Reference output Terminal
8 GPIB Interface Connector
