2.13 Setting the Output Amplitude
Introduction
At power-on, normally, the instrument outputs the same setting as before
power-down.
When you change functions, the same amplitude is used if the present value
is valid for the new function.
The following steps show you how to change the amplitude:

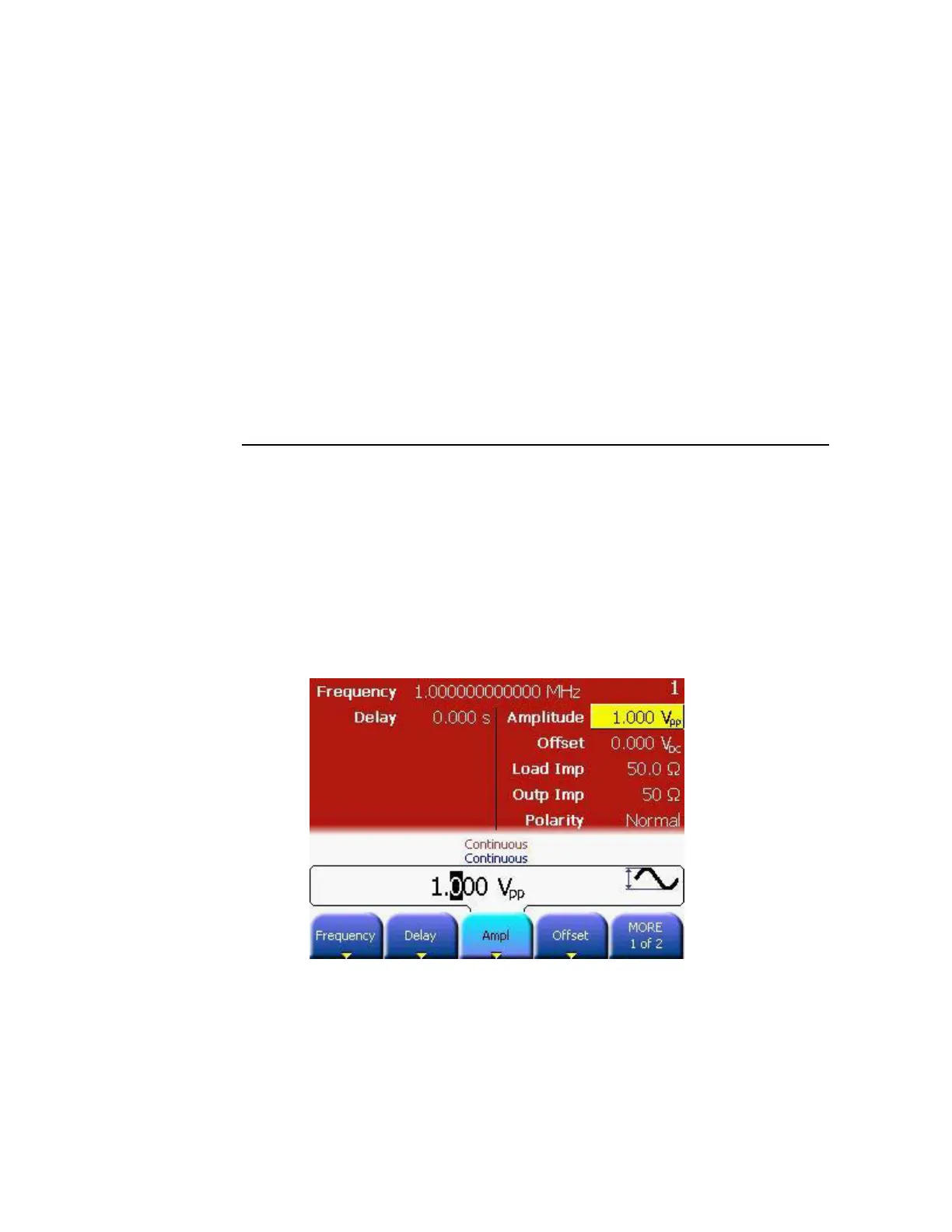

Press the “Ampl”
softkey
To set the amplitude using a high level and low level, press the Ampl
softkey.
 This will offer the level representations and units that can be chosen
for the output levels.
 Choose the appropriate option from the given choices.
 Press More to go to the units screen. Choose from the given units, by
pressing that unit itself.
