Features and Functions
81150A and 81160A User’s Guide 131

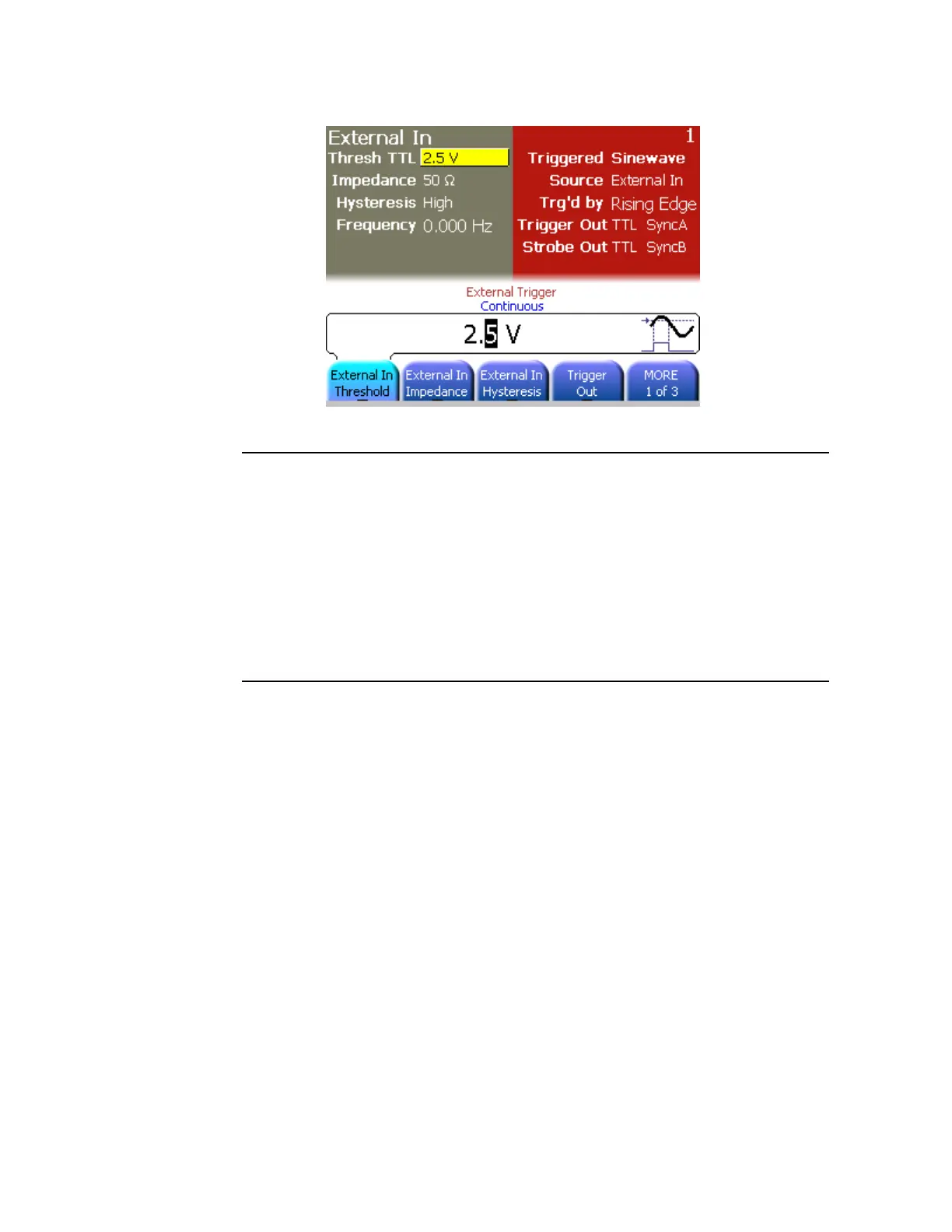

Trigger Mode Screen of the 81160A
Threshold Voltage
Introduction
The External In Threshold Voltage defines the threshold voltage that is used
to detect signals at the ExternalIn Connector. The Threshold can be set to
any voltage in the range of 10 V to +10 V for the 81150A (5 V to +5 V for
the 81160A).
