3.13.3 Triggered Burst Mode
Introduction

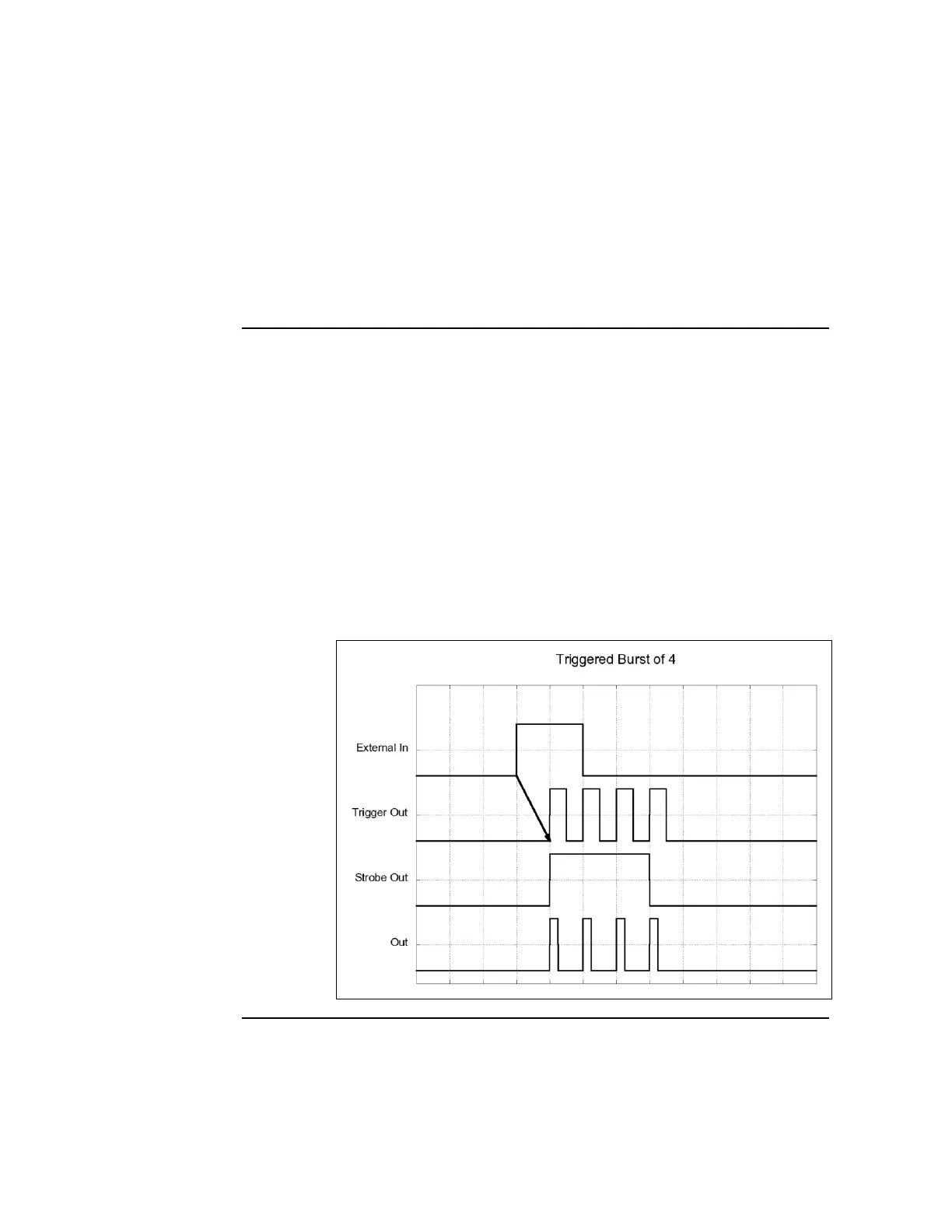

The following figures show typical timings for trigger mode Triggered and
Burst enabled.
Characteristics
A burst of waveform cycles is triggered by an active edge at the selected
arming source.
 Man key on front panel, triggered by press or release or both.
 External In (External signal) triggered by rising or falling or both
edges.
 Internal (Internally triggered bursts), select the triggering period.
You can select the number of cycles per burst in the range of 2 to 1,000, 000.
Trigger Out marks each cycle.
Strobe Out rises at the start of the first cycle in a burst and falls at the start
of the last cycle.
