3.14.1 Creating and Storing an Arbitrary Waveform
Introduction
This section gives an example which shows you how to create and store an
arbitrary waveform from the front panel. To download an arbitrary waveform
from the remote interface, see “Arbitrary Waveform Commands”. For this
example, you will create and store the ramp waveform shown below using
four waveform points.
Select the arbitrary
waveform function

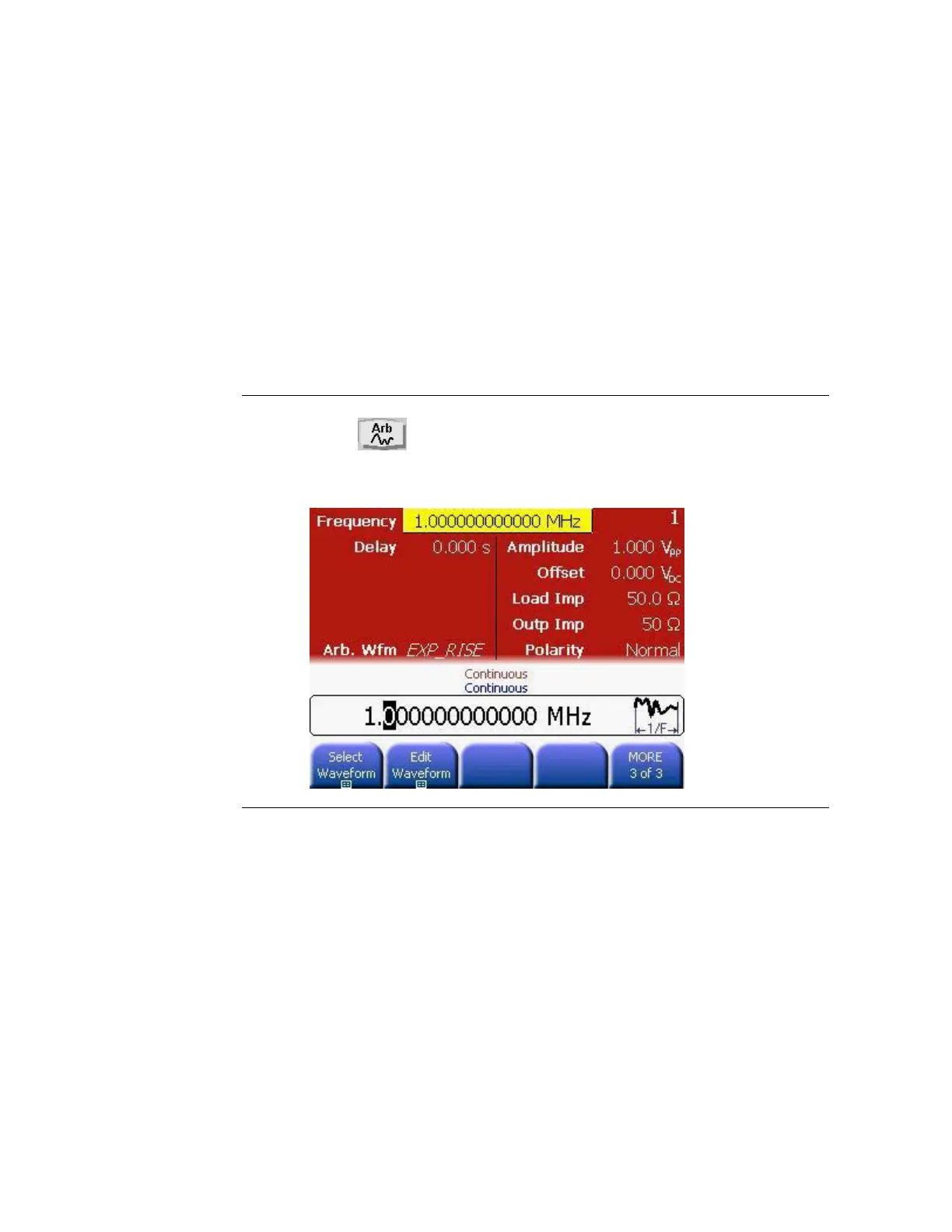

Press to select the arbitrary function.
Start the arbitrary
waveform editor
Press the Edit Waveform softkey and then the Create New softkey to create
a new waveform (the previous waveform in volatile memory will be over-
written).
