3.13.2 Continuous Burst Mode
Introduction

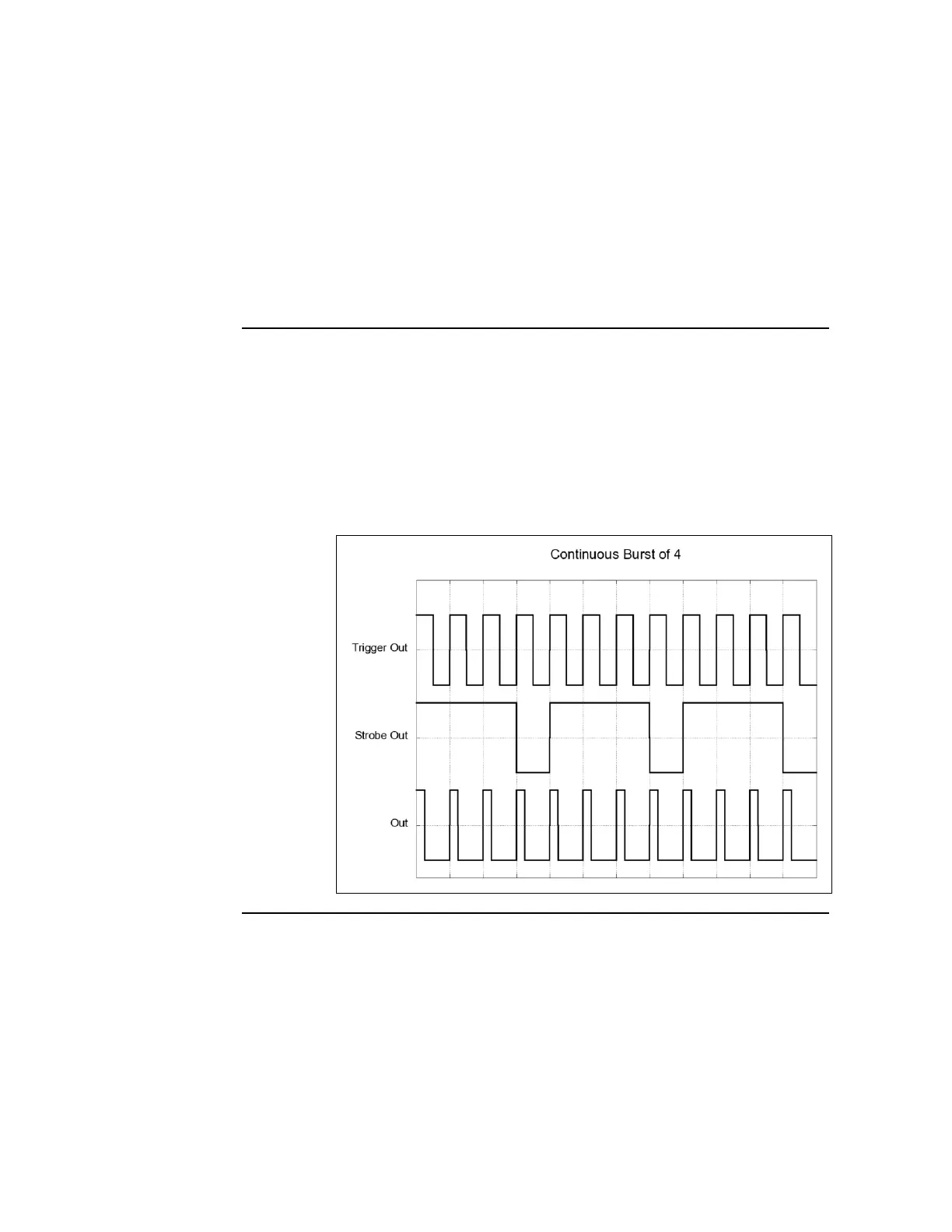

The following figure shows typical timings for trigger mode Continuous and
Burst enabled.
Characteristics
 A burst of waveform cycles is repeated continuously.
 You can select the number of cycles per burst in the range of 2 to
1,000, 000.
 Trigger Out marks each cycle.
 Strobe Out rises at the start of the first cycle in a burst and falls at
the start of the last cycle.
