Appendix
80
Select a custom
name for the
selected location
If desired, you can assign a custom name to each of the four locations.
The name can contain up to 12 characters. The first character must
be a letter but the remaining characters can be letters, numbers, or
the underscore character (“_”), and “.”.
To add additional characters, keep pressing the right-cursor key
unless it reaches the place where you want to insert a character.
Then, turn the knob to obtain the desired character.
To delete all characters to the right of the cursor position, press
.
To use numbers and “.” in the name, you can enter them directly
from the numeric keypad.
Store the
instrument state

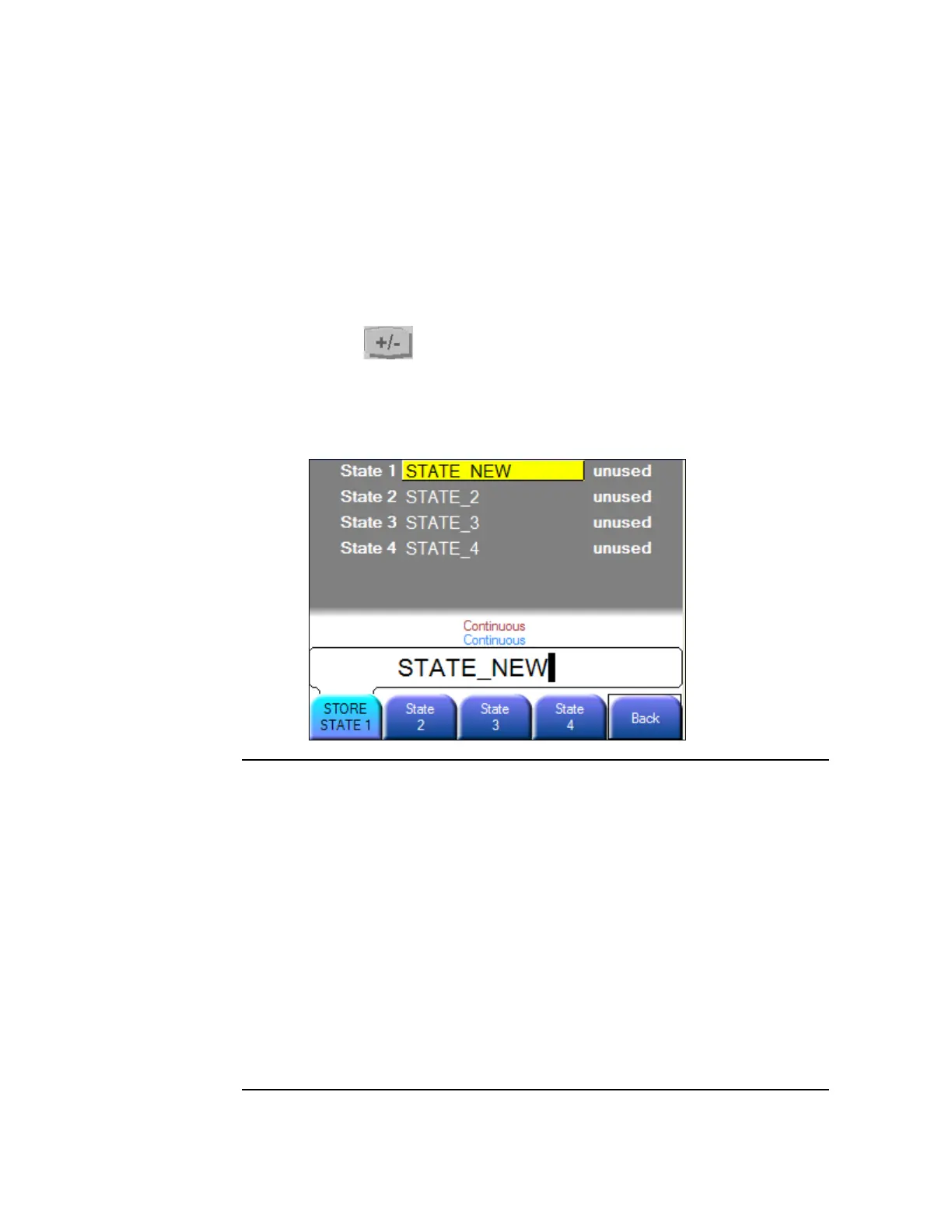

Press the STORE STATE softkey. The softkeys for each of these states, i.e.,
state 1 to 4 has two meanings:
Select the state to store to.
When being selected, the text on the softkey changes to ‘STORE
STATE x’, where x is 1, 2, 3 or 4. Pressing this softkey actually
performs the ‘store operation’. This will be confirmed with a scrolling
text in the status line (Stored instrument state to location x).
The instrument stores the selected function, frequency, amplitude, dc offset,
duty cycle, symmetry, as well as any modulation parameters in use. The
instrument does not store volatile waveforms created in the arbitrary
waveform function.
