Parallel/ Series Operation ｜ Master-Slave Parallel Operation
Connection
Connecting the signal cables
Use the J1 connector to make the connections for parallel operation.
The necessary cables are not included. For details, see "About the J1/ J2 Connectors" (p.85).

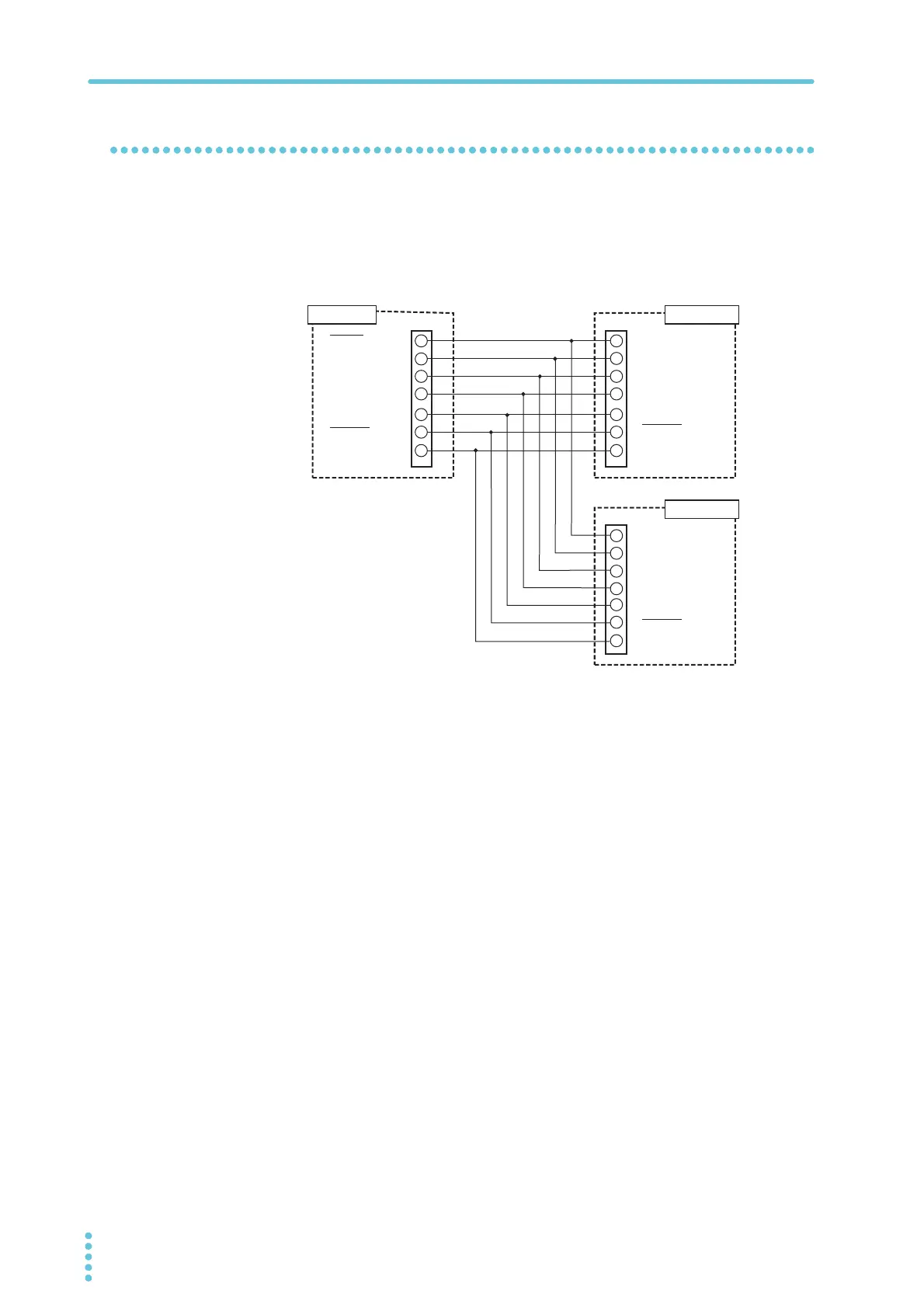

Example of connecting two slave units
1
Decide which PWR-01 you will use as the master unit.
2
Connect the J1 connector of the master unit to the J1 connector of the
first slave unit.
3
If there is a second slave unit, connect the J1 connector of the first slave
unit to that of the second slave unit.
J1 J1
PRL ON
I SUM
PRL OUT+
A GND
PRL COM
PRL ALM
PRL COMP OUT
17
20
7
10
14
9
19
4
8
13
7
14
18
10
OUT ON/OFF CONT
I SUM
PRL IN+
PRL IN-
A GND
PRL ALM
PRL COMP IN
Master unit
Slave unit 1
J1
17
20
7
10
14
9
19
OUT ON/OFF CONT
I SUM
PRL IN+
PRL IN-
A GND
PRL ALM
PRL COMP IN
Slave unit 2
