PWR-01 27
Installation and Preparation ｜ Connecting to the Output Terminals
Connecting to the front-panel output terminals
The specifications of the PWR-01 apply to the rear-panel output terminals. The front-panel
output terminals may not meet the specifications.
There is no grounding terminal on the front-panel output terminals. To ground one side of the
output, connect the rear-panel chassis terminal to either the negative output terminal or the
positive output terminal.
If you are not grounding the output terminal (leaving it floating), refer to “Output Terminal
Insulation” (p.22) before use.
If the output current of the front-panel output terminals exceeds 10 A (typical value), the front-
panel output terminal overcurrent protection (FOCP) will be activated (p.50).
Necessary cables and plugs (recommended)
Polyvinyl chloride insulation cable: Nominal cross-sectional area of 0.33 mm
2
(AWG22) to
0.82 mm
2
(AWG18)
Rated voltage: 1000 V or higher
Length: Less than 3 m
Output terminal plugs: Safety plugs
Safety plugs TL41 and TL42 are available as options (p.139).
1
Attach safety plugs to the load cables.
2
Connect the load cables with safety plugs to the front-panel output ter-
minals.
To reduce the influence of noise on the output, keep the cables as short as possible.
Twist the positive and negative load cables.
• Risk of electric shock. The front-panel output terminals are designed to be used with
safety plugs. Do not use connectors that have bare conductive parts (such as
banana plugs) to connect to the front-panel output terminals.
• Risk of heat buildup or fire.
Do not run current higher than 10 A through the front-panel output terminals.

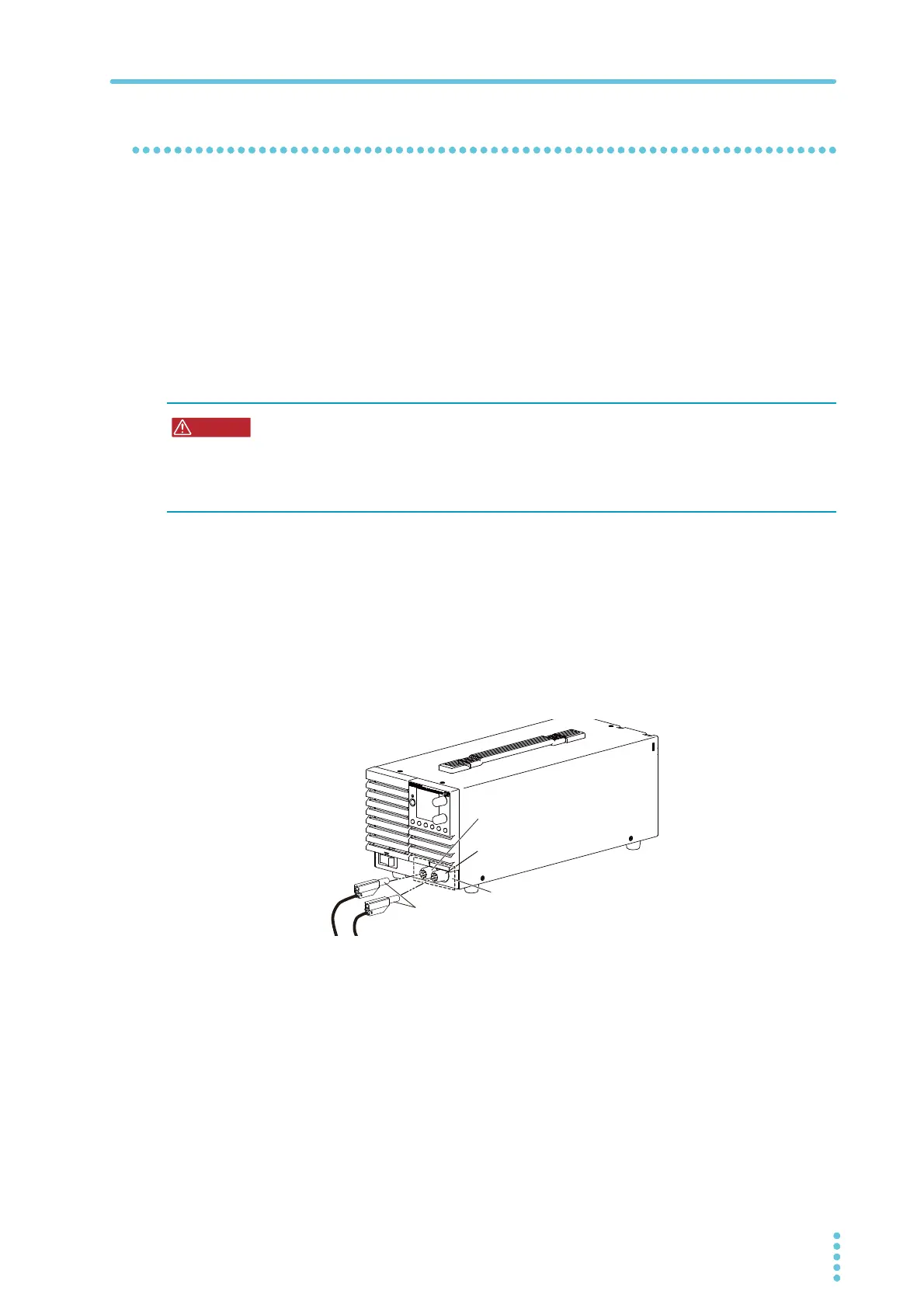

Front-panel output terminal.
- (negative) terminal
+ (positive) terminal
Safety plugs
