PWR-01 15

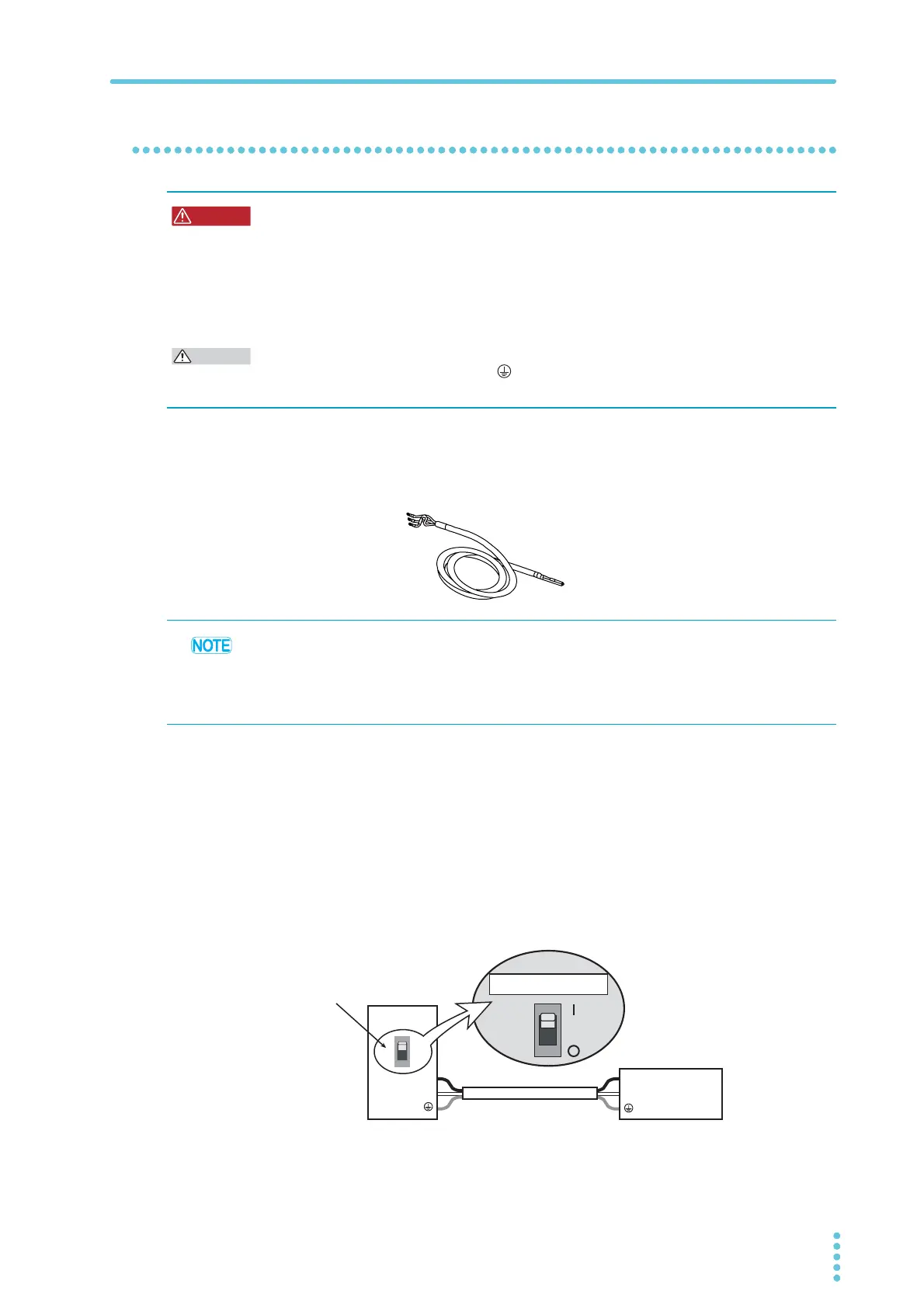

Installation and Preparation ｜ Connecting the Power Cord
1200W model
A power cord is not included with the 1200W model. Use a power cord that conforms to the
rated AC input voltage and current of this product.
The following dedicated power cord is available as an option.
Switchboard breaker requirements
• Rated current: 30 A (100 V system), 15 A (200 V system)
(for safety reasons, circuit breakers exceeding the specified current cannot be used)
• Only use the breaker with this product.
• Keep the breaker readily accessible at all times.
• Indicate that the circuit breaker is dedicated for use with this product and that it is used
to disconnect the product from the AC power line.
Risk of electric shock.
• Before you connect the power cable, turn off the switchboard breaker (a switch that
cuts off the power supply from the switchboard).
Risk of fire.
• Be sure to have a qualified engineer make the connection to the switchboard.
• The switchboard breaker must meet the requirements shown below.
Inside the product, protection circuits are connected to match the polarity of the input termi-
nal. Be sure to connect the L, N, and (GND) terminals correctly between the switchboard
and the product.
For the 1200W
model
[85-10-1010]
• We recommend that you use the optional dedicated power cord to connect to the AC power
line. If you will not use the dedicated power cord, use an appropriate power cord with a
length of 3 m or less that has been selected by a qualified technician.
• In an emergency, turn off the switchboard breaker to separate the product from the AC
power line.
PWR1201L
Switchboard
Circuit breaker indication example
PWR1201L dedicated
PWR1201L
dedicated circuit breaker
N
L
N
L
