Calibration procedure
Use the KIKUSUI PWR-01 Calibration software application in the CD-ROM to calibrate the
PWR-01. System requirements for PWR-01 Calibration are as follows:
 OS
• Windows 10 (x86/ x64)
• Windows 8.1 (x86/ x64)
• Windows 8 (x86/ x64)
• Windows 7 (x86/ x64)
• .NET Framework 2.0 or later
 VISA library
One of the following VISA libraries is required. Do not install multiple VISA libraries on the
same PC. Doing so may cause errors.
• NI-VISA by National Instruments Corporation (Ver. 5.0.3 or later)
• Keysight VISA by Keysight Technologies (Keysight IO Libraries Suite 16.0 or later)
• KI-VISA Ver. 5.0.4 or later
For details, see the PWR-01 Calibration - Manual that is installed together with the applica-
tion software for calibrating the PWR-01.
Be sure to execute the calibration procedure completely. If you change to a different type of
calibration or turn off the POWER switch in the middle of the procedure, that calibration will
be invalid.

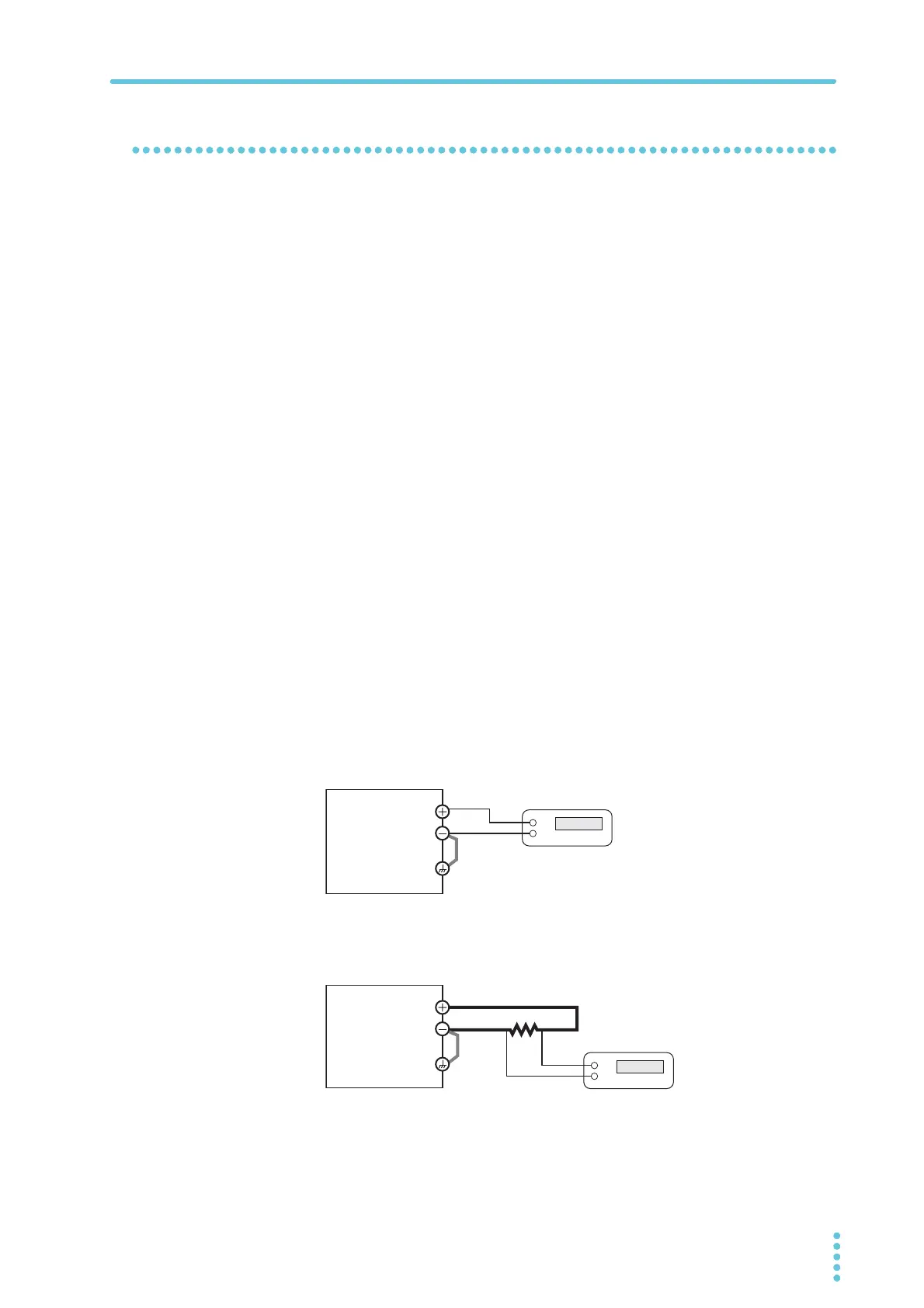

Connection
 Voltage calibration
 Current calibration
DVM
PWR-01
HI
LO
Rear-panel
output terminal
Chassis terminal
Shunt
DVM
PWR-01
HI
LO
Rear-panel
output terminal
Chassis terminal
