Basic Features ｜ Output Operation
Soft start and soft stop waveforms

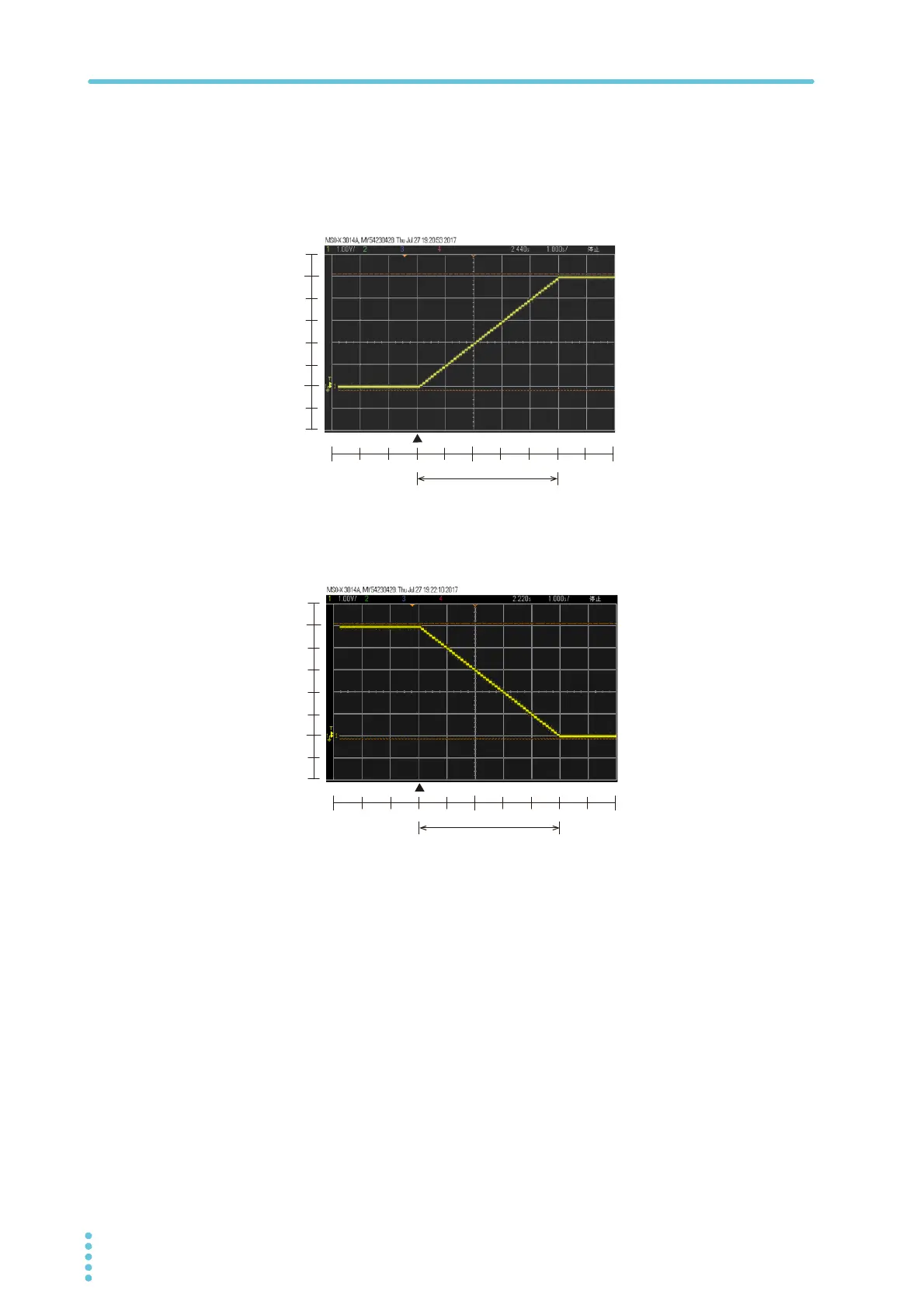

Waveforms when soft start and soft stop are used are shown below.
 Waveform when soft start is used
 Waveform when soft stop is used
5.0
0
0
5
5.0 10.0
[Time (s)]
[Voltage (V)]
ŸUHSUHVHQWVWKDWWKH287387NH\KDVEHHQSUHVVHG
2XWSXW
off
2XWSXW
RQ
Outpu on: Output voltage 5 V
Soft start time: 5.0 s
(CF06: 5.0)
5.0
0
0
5
5.0 10.0
[Time (s)]
[Voltage (V)]
Output
on
Output
off
ŸUHSUHVHQWVWKDWWKH287387NH\KDVEHHQSUHVVHG
Outpt off: Output voltage 5 V
Soft stop time: 5.0 s
(CF07: 5.0 s)
