Matrix 2360 Programmable Shear User Manual - Section 4
16 12-092600 A
4.3 Electrical Supply
Either:
Nominal 115 (100-120) VAC, single phase, 50-60 Hz, 5 A
-or-
Nominal 230 (207-244) VAC, single phase, 50-60 Hz, 5 A
IMPORTANT: If the voltage selected on the power entry module
does not match the supply voltage, the machine may be damaged
when live power is connected. Read Section 4.3.1 carefully.
ELECTRICAL HAZARD: Connect the power cord to the machine
first. Do not connect the other end of the power cord to any live
source until the machine is in its final location, all other facilities
are connected, all panels are fastened, the output chute is in place
and the clear blade cover is closed.
Failure to follow all electrical safety procedures could result in
SERIOUS INJURY or DEATH BY ELECTROCUTION.
Use only the power cord supplied by Kinematic for your machine. Make sure that
the cord is installed so that it is not a slip, trip, or fall hazard. Do not leave the cord
stretched out on the floor.

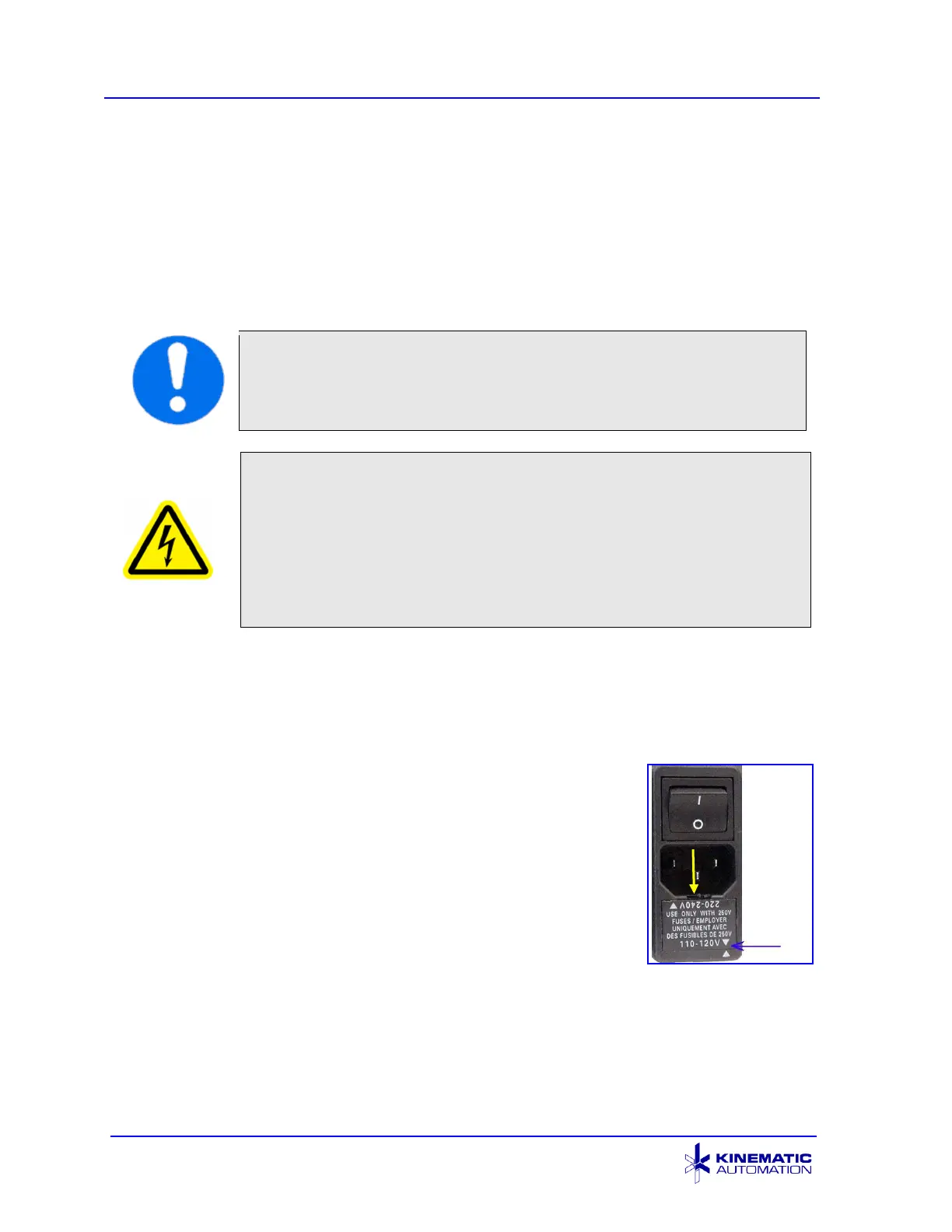

4.3.1 Power Entry Module
The unit should be attached to the proper power source only
after installation is complete. The power cord plug fits into the
power entry module on the control panel.
If the power available differs from the setup of the power entry
module (see picture), remove the fuse cover (using a small
screwdriver) and turn it upside-down, until the correct arrows
meet and the correct power source voltage is right side up.
Power Entry Module
This module contains the main fuse for the machine. Refer to the Spare Parts List
for the replacement part number.
The rocker switch is the main switch for the machine. Leave it in the OFF (‘O’)
position as shown here until installation is complete.
correct
setting
for
110 VAC
match
arrows
for
voltage
