1 INTRODUCTION

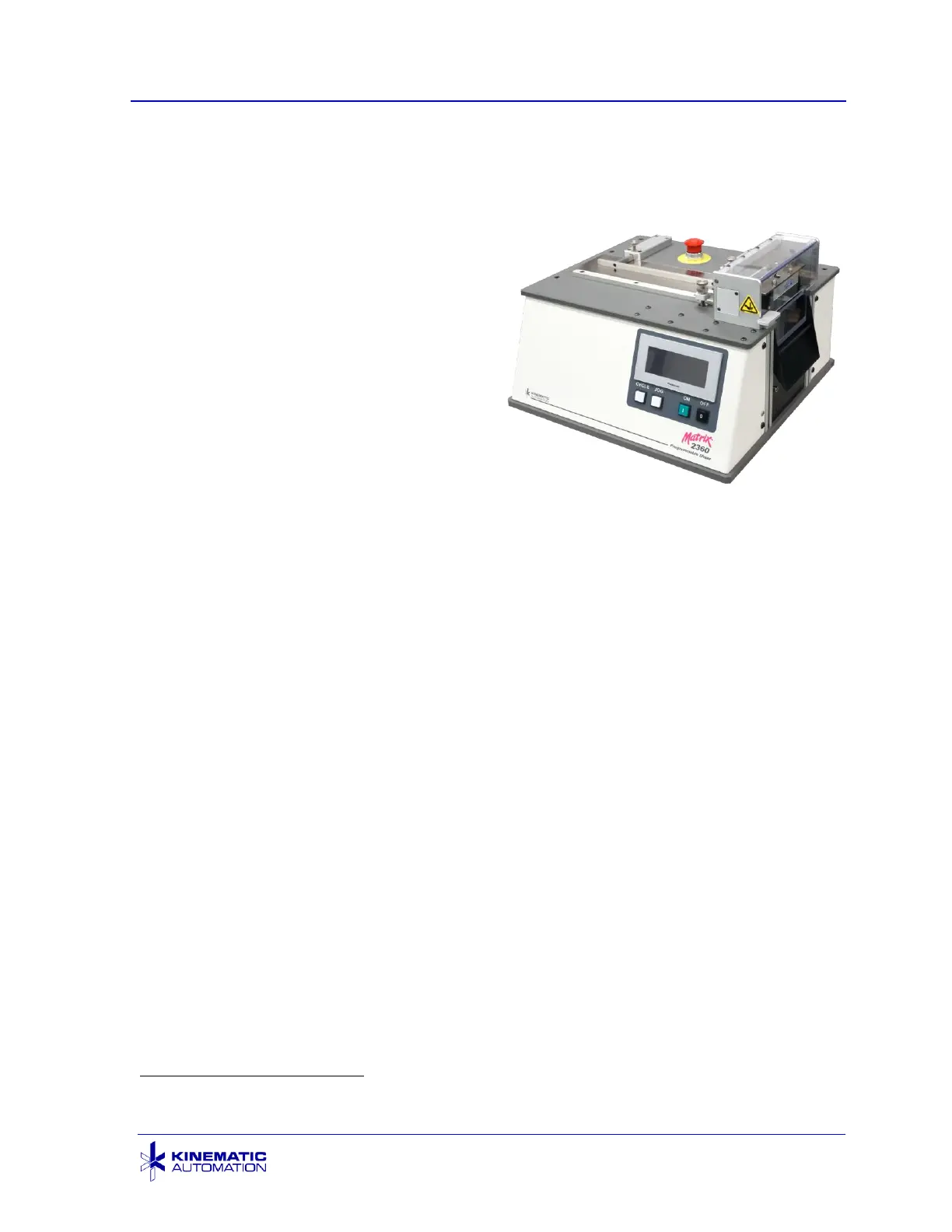

Matrix™ 2360 Programmable Shear
A universal, state-of-the-art cutting tool for
the conversion of web or card stock to
strips.
1.1 Function
Programmable for strip length in inches or metric units
Automatic mode selection based on strip length:
▪ Strip Mode: for strips
between 0.8 mm to 19.00 mm (0.03” to .75”)
▪ Card Mode: for card lengths between 19.01 to 609 mm (0.76” to 24.0”)
Strip length is cut to close tolerances
Cuts 360 strips per minute in strip mode
Programmable for quantity of strips from 1 to 9,999
1.2 Features
Standard 101.6 mm (4”) guillotine blade or optional 152.4 mm (6”) blade
User-settable 120/220 volt operation
Touch Screen Operator Interface and computer control
Batch-start (CYCLE) and drive roller movement (JOG) pushbuttons
Hardened tool-steel guillotine blade
Precision pinch-drive web feed system
Minimum strip width is dependent on material being cut.
If feature registration is used, the maximum speed will be reduced.
