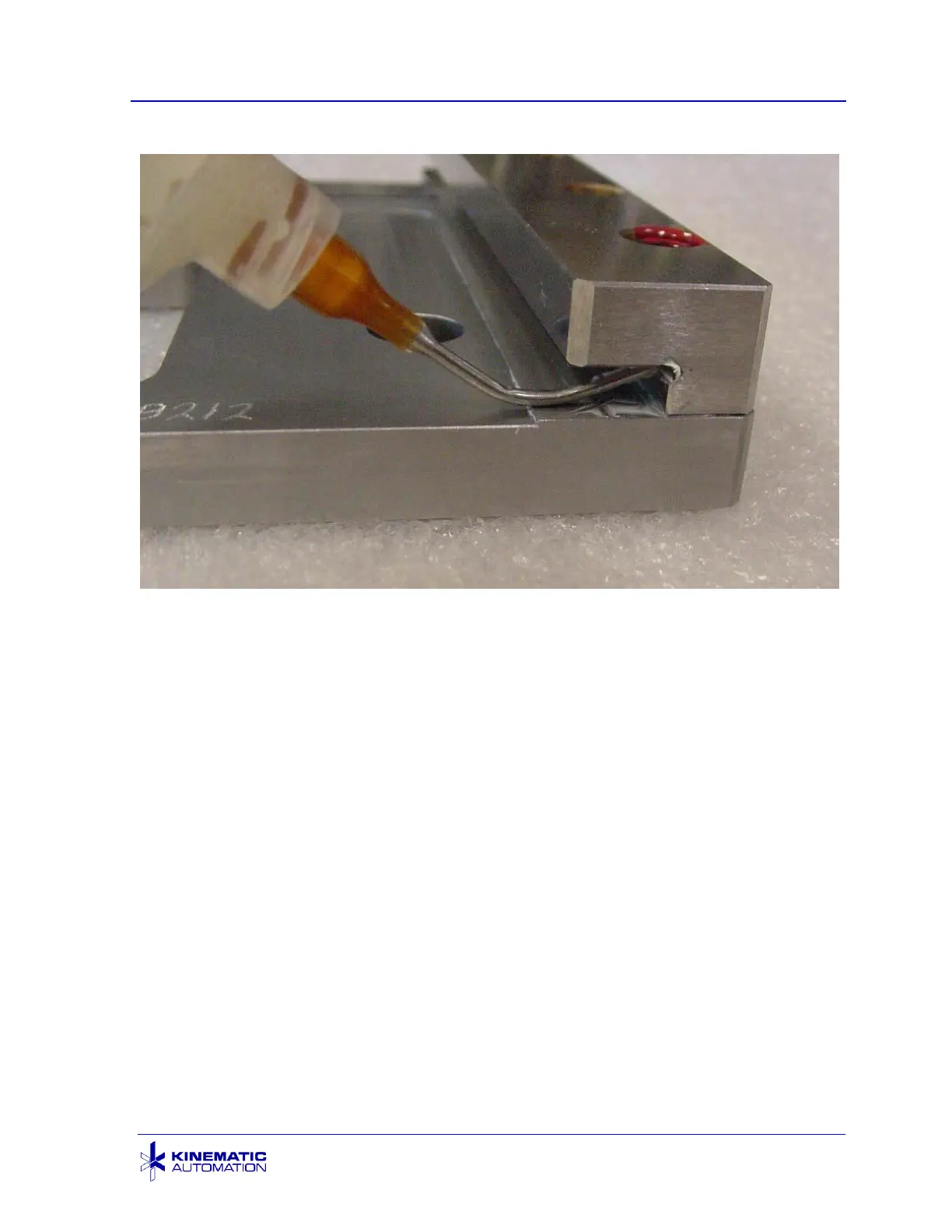

Using a Grease Applicator
7.9 Reinstalling the Die Block
When reinstalling the die block, do not over tighten the four mounting screws. If the
screws are too tight, they could deform the die block. Tighten all four screws
equally.
Usual tightness torque on these screws is between 5.761 and 9.217 kgf·m (50 and
80 inch-pounds). Do not exceed 9.217 kgf·m (80 inch-pounds) on these mounting
screws. Too much torque could cause the die block to flex, and bind the blade.
7.10 Lubricating and Reinstalling the Blade
If the blade coupler was removed, replace it and tighten screws securely before
lubricating the blade.
There are four pads on each side of the blade. These pads should be wiped clean
and then re-lubricated. Lubricate the pads shown in the following illustrations by
applying a thin coating of the grease specified in Section 7.8 to the entire surface of
each pad. Add a thin coating of grease to the right and left edges of the blade. Be
