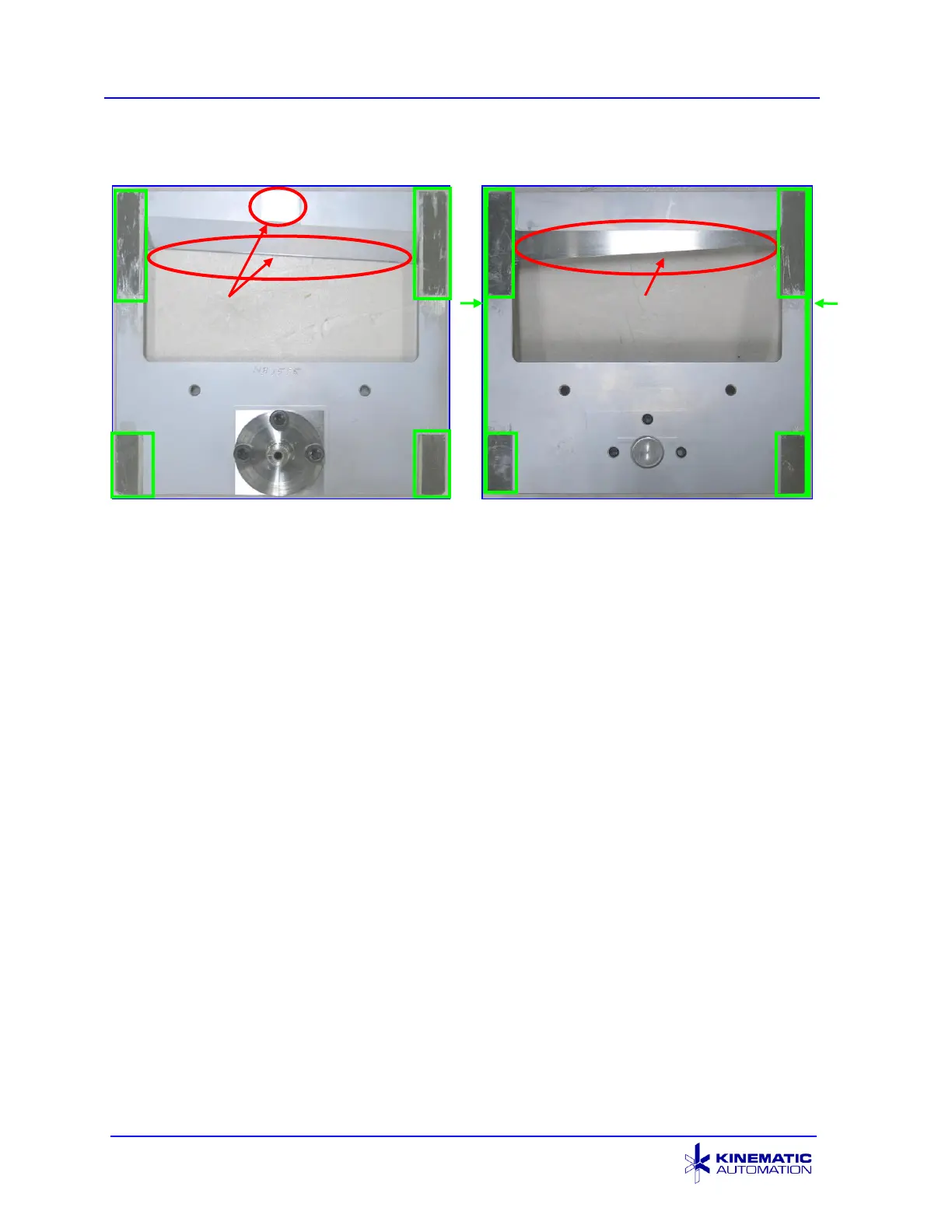

careful and do not apply any grease to the cutting edge of the blade. Do not grease
the center pad at the top on Side 1.
After the blade and die block have been cleaned and lubricated, slide the blade into
the die block and check for fit and smooth operation. If there is any loosness in the
assembly, the blade and die block should be considered for replacement.
Insert the blade into the die block. Manually move the blade up and down in the die
block. The blade should move smoothly and have no indication of binding.
Replace the static control bar bracket and tighten screws.
Replace the drive arm.
Replace the registration sensor if it was present.
Replace the output chute.
Replace the cover.
Test for proper operation and clean cuts on strips.
