Matrix 2360 Programmable Shear User Manual - Section 7
12-092600 A 71

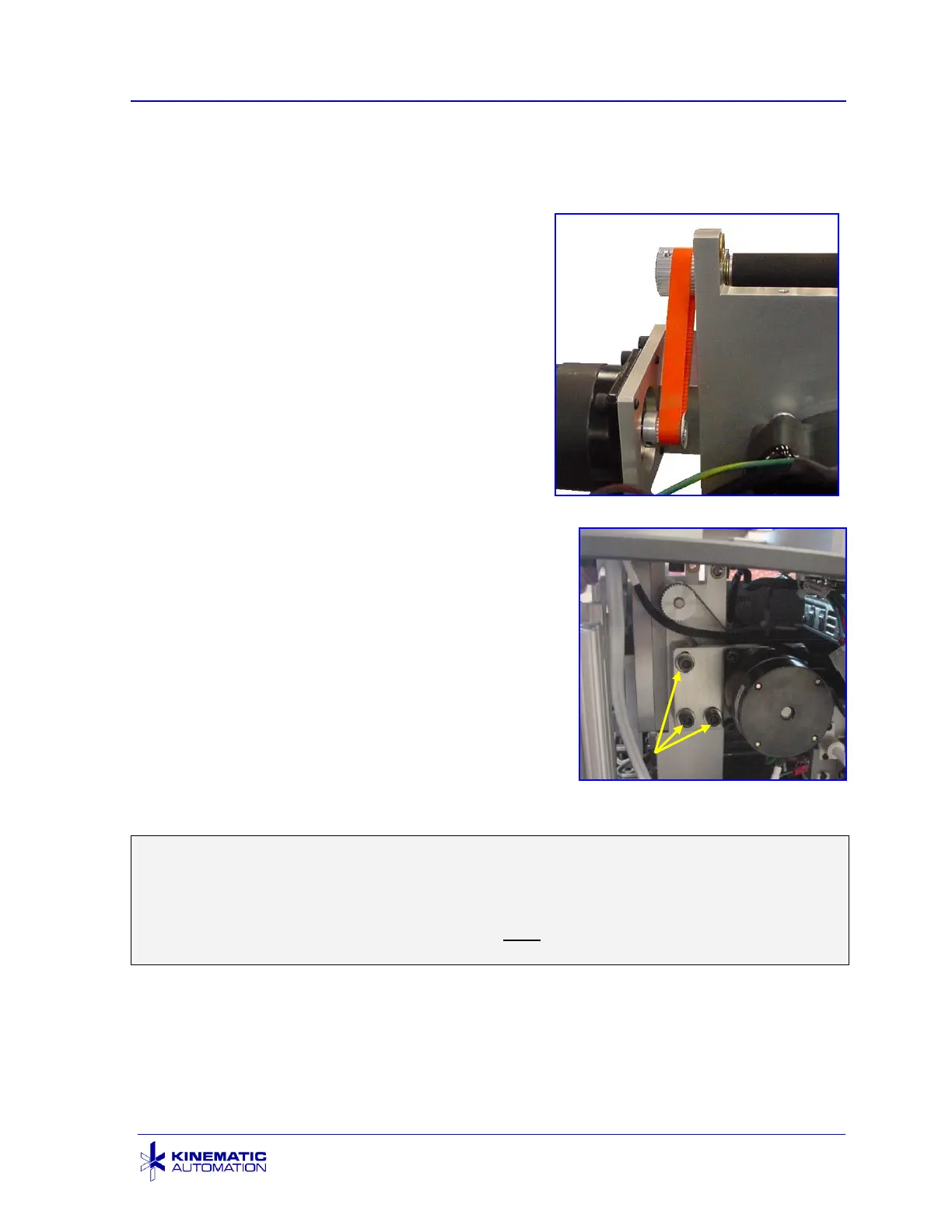

7.11 Blade Drive Belt, Roller & Bushing Replacement
7.11.1 Replacing the Blade Drive
Belt
The belt is easy to replace:
1. Remove the rear panel by removing four
¼”-20 button head cap screws.
2. Loosen the three ¼”-20 socket head cap
screws on the stepper drive motor mount.
3. Move the motor up and slide the belt off.
Drive Belt
4. Replace the belt.
5. Move the motor mount down and tension the
new belt. Check for approximately 3 mm
(0.125”) deflection.
If the belt is too tight, it will bind the motor and
wear the belt & motor excessively.
Tighten the three ¼”-20 screws.
6. Replace the rear panel and the four ¼”-20
button head cap screws.
Motor Mount Screws
If replacing the drive roller (the lower roller) at this time, only do the first three steps
of the drive belt replacement procedure. does the drive roller also have bushings?
The last three steps will be done after replacing the drive roller.
Continue the roller replacement process on the next page.
