Matrix 2360 Programmable Shear User Manual - Section 5
12-092600 A 19
The downward pressure of the spring-controlled idler roller may be adjusted to
control the tension on the material. Adjustment of the pinch roller tension is covered
in Section 5.4.2.

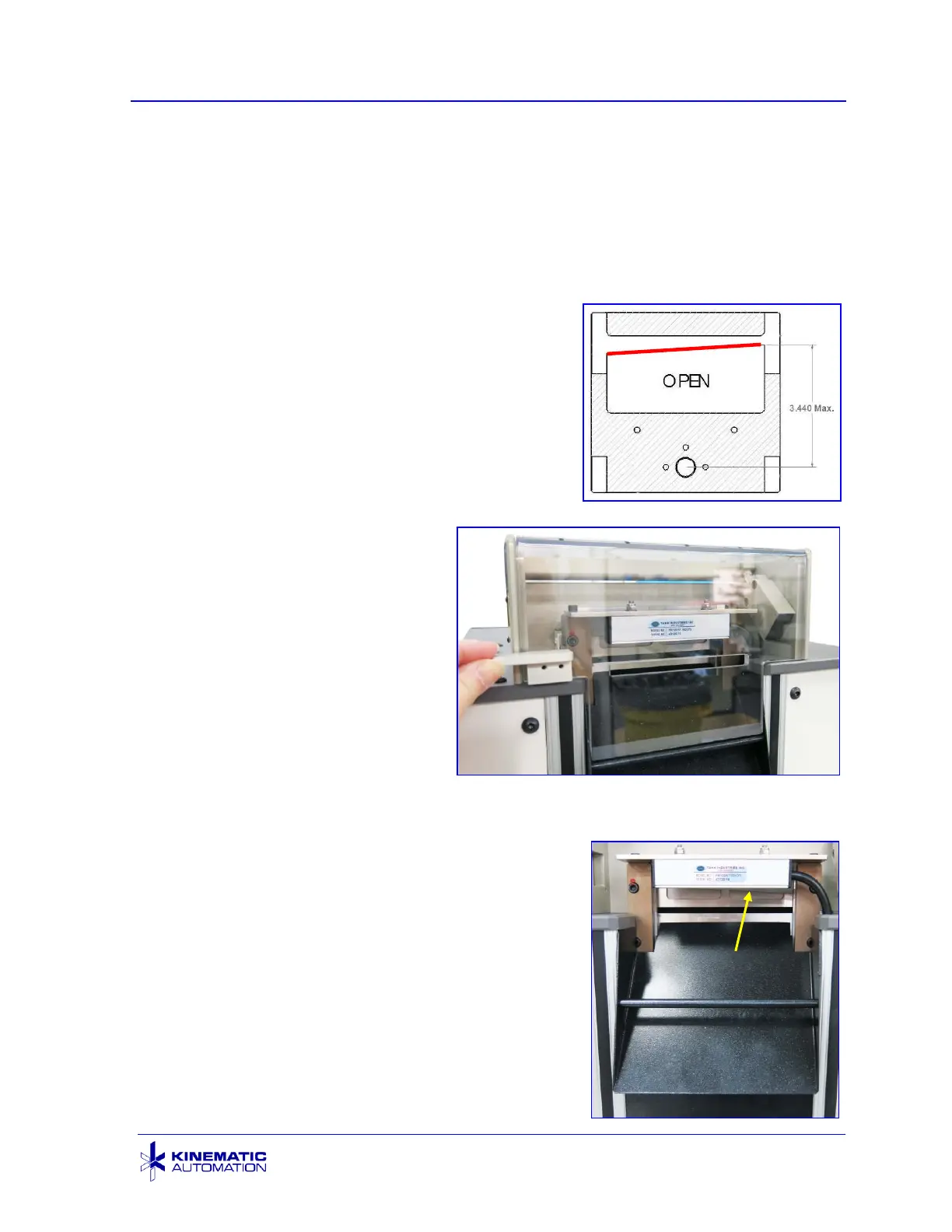

5.1.3 Die Block and Blade Module
The guillotine blade is made from hardened D2 tool
steel. The blade drive motor is a direct current
motor for quiet action and minimum vibration. The
blade moves vertically against a die block to cut the
strips.
There are two blade widths available:
Standard 101.6 mm (4”)
Optional 152.4 mm (6”)
Guillotine Blade
The LEXAN
®
safety cover over the
guillotine blade is electronically
interlocked. If it is opened during
operation, the machine stops, the
control screen turns red, and an
alert message displays.
More details on the blade are
covered in the following sections:
7.3 Blade Removal and 7.5
Sharpening the Guillotine Blade.
Blade Cover
5.1.4 Output Chute
The output chute collects the cut strips at the rear of
the unit and allows them to fall into a receptacle (not
provided with the machine) placed next to the unit.
Removal of the chute during operation will cause the
machine to stop. No warning is displayed, but the
machine will not operate until it is replaced.
See Section 6.5 for details on the optional magnetic
exit guide that can guide material down the chute.
Output Chute (cover open)
