Matrix 2360 Programmable Shear User Manual - Section 5
12-092600 A 21
reverse buttons. See Section 6.2 for more details and the installation
procedure.
Registration Option - An adjustable registration sensor is mounted in the
product path, either just before or just after the guillotine blade. Its
purpose is to ensure the product is fed and cut at the correct position,
based on a Customer-defined feature (notch, mark, hole, & etc.) on the
material to be cut. Feature sensors may be through-beam, reflective
heads, or lasers, depending on the Customer requirements and the
material being processed. See Section 6.3 for more details.
Output Card Guide – This guide directs long strips or cards out from the
machine horizontally, past the output chute. See Section 6.4 for more
details.
Magnetic Exit Guide – Adding one or more of these magnetic bars will
guide the cut strips into a narrower exit path. See Section 6.5 for more
details.
5.2 Turning the Machine On
Turn the switch ON (‘|’) at the
power entry module. Be sure
the red “mushroom” EPO
pushbutton on top of the
machine is up, the metal
output chute is in place, and
the blade cover is closed.

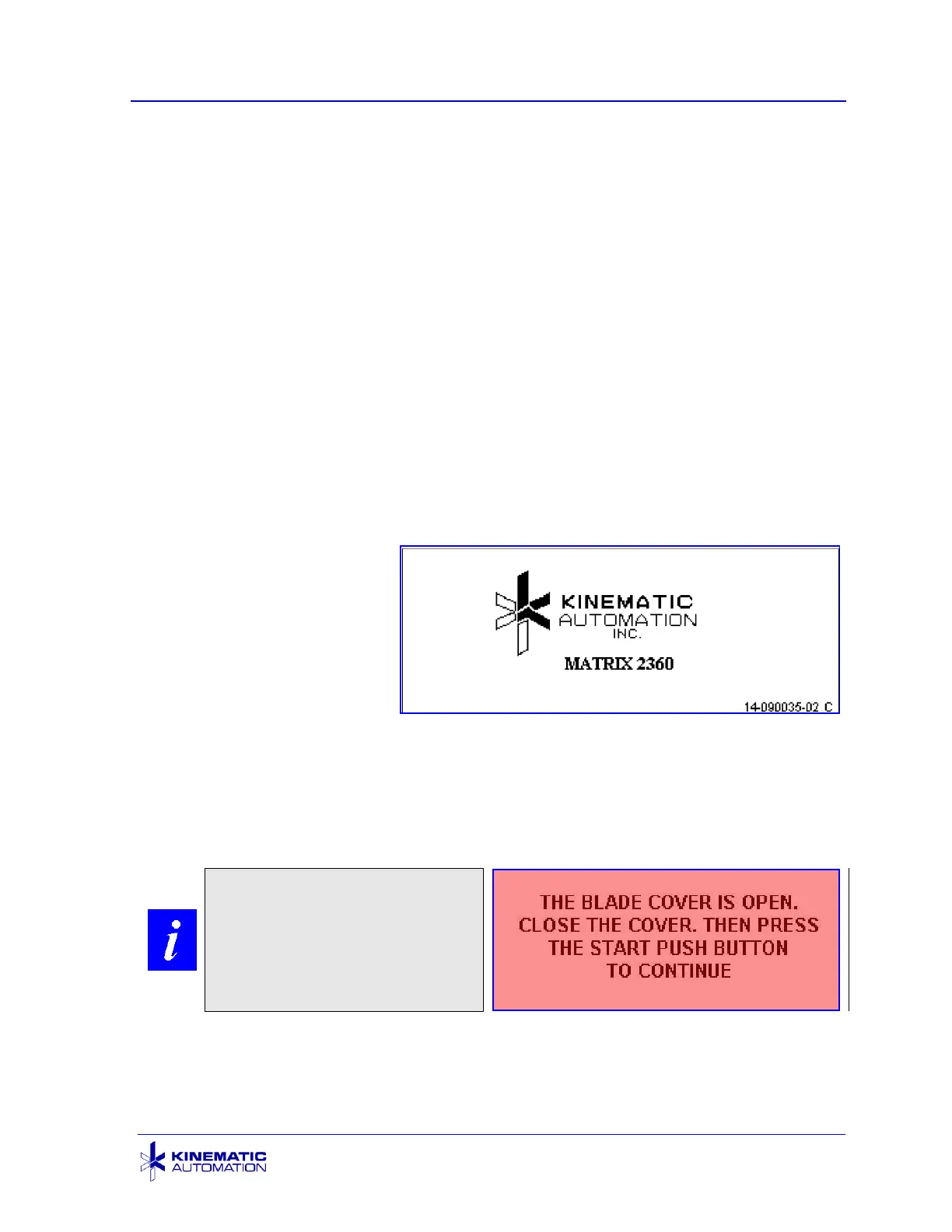

The touch screen should
illuminate and display the Kinematic Logo, the machine name, and the HMI software
part number. No other buttons should be illuminated at this time.
There is no signal or warning if the EPO pushbutton is activated or the metal output
chute is not in place. The machine cannot be turned on if either condition exists. If
the blade cover is lifted, the screen turns red and displays an alert message.
When the equipment is ready, pressing the ON pushbutton turns control power ON
to the machine. When control power is ON, the ON pushbutton is illuminated, the
touch screen displays the Main Screen (see section 5.3.2 for further information),
