MONTHLY:
While the equipment is disassembled for lubricating, remove
the blade from the die block. Refer to the instructions in
section 7.3. Sharpen the blade as indicated in Section 7.5
Return blade to Kinematic for sharpening/repair/replacement if
any signs of damage are seen.
CAUTION – the blade is sharp.
AS NEEDED:
Periodically inspect the foam filter material at the intake of the
cooling fan. If this material is dirty, remove the four screws
holding the fan grill in place. Remove and wash the filter
material in warm soapy water. Rinse, dry, and reinstall.

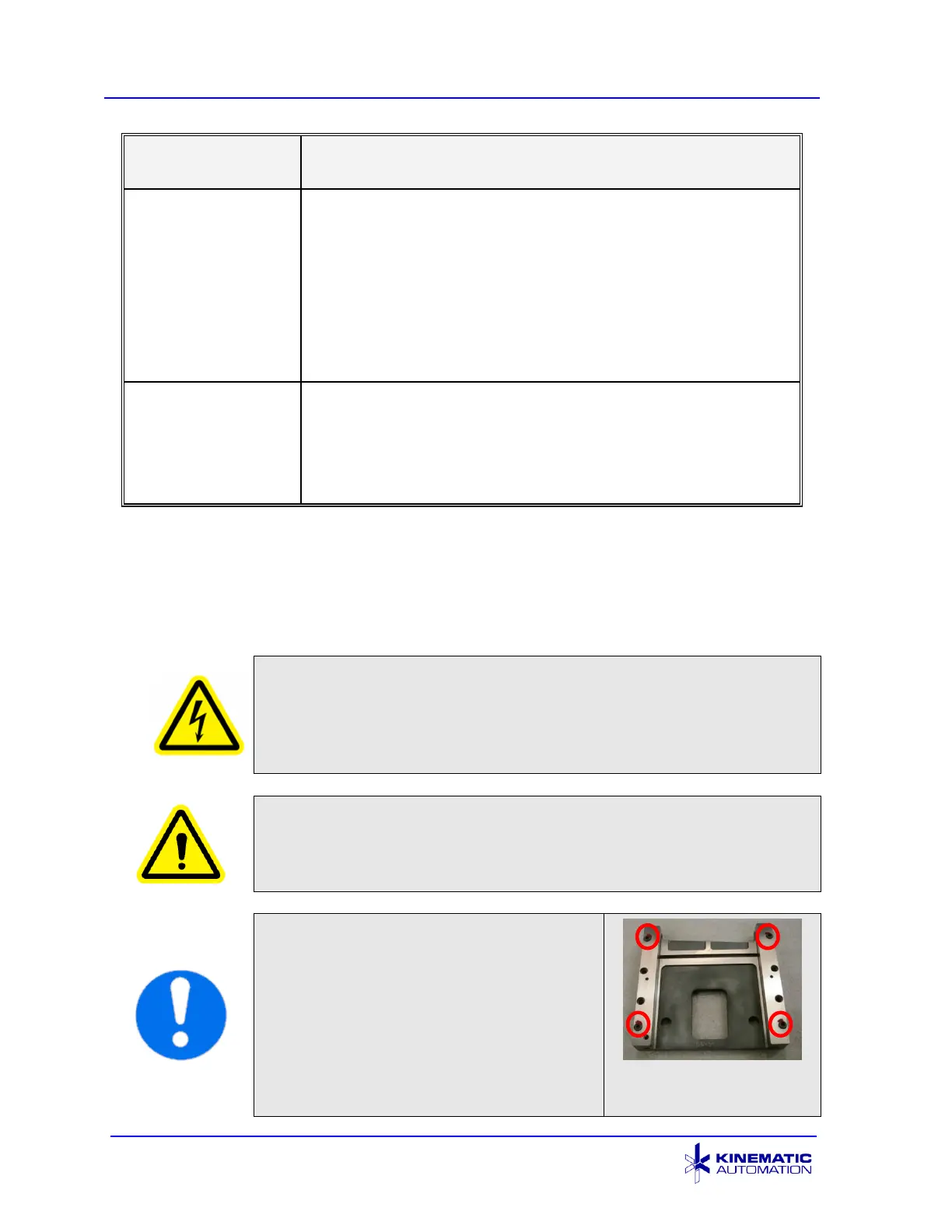

7.3 Blade Removal
Use this procedure when removing the Guillotine Blade for cleaning, lubricating, or
sharpening.
ELECTRICAL HAZARD: Disconnect the unit from its power
source before beginning any maintenance or repair procedure. If
a panel is opened, exposure to live electrical circuits is possible.
Failure to follow all electrical safety procedures could result in
SERIOUS INJURY or DEATH BY ELECTROCUTION
CAUTION: Guillotine blades are very sharp, and could cause
SERIOUS INJURY.
Handle the guillotine blade as you would a very sharp knife.
Please be careful.
IMPORTANT: If the top and bottom
pairs of screws on the die block (the
screws marked with a red substance)
are loosened or removed, the die block
alignment will be destroyed.
The blade will not fit properly and will
not cut properly.
This problem cannot be fixed without
specialized factory tools.
Do not loosen these
screws.
