and the cooling fan operates. The machine completes initialization by indexing the
indexed roller and cycling the blade twice.
During the first three seconds after the ON button is pressed, the machine performs
self-diagnostics. If a problem is detected, refer to the troubleshooting guide in
Section 7.17.
CAUTION: Do not put anything into the machine except the
material to be processed. Foreign objects will damage the
machine and may cause dangerous flying metal fragments.
5.3 System Control Description

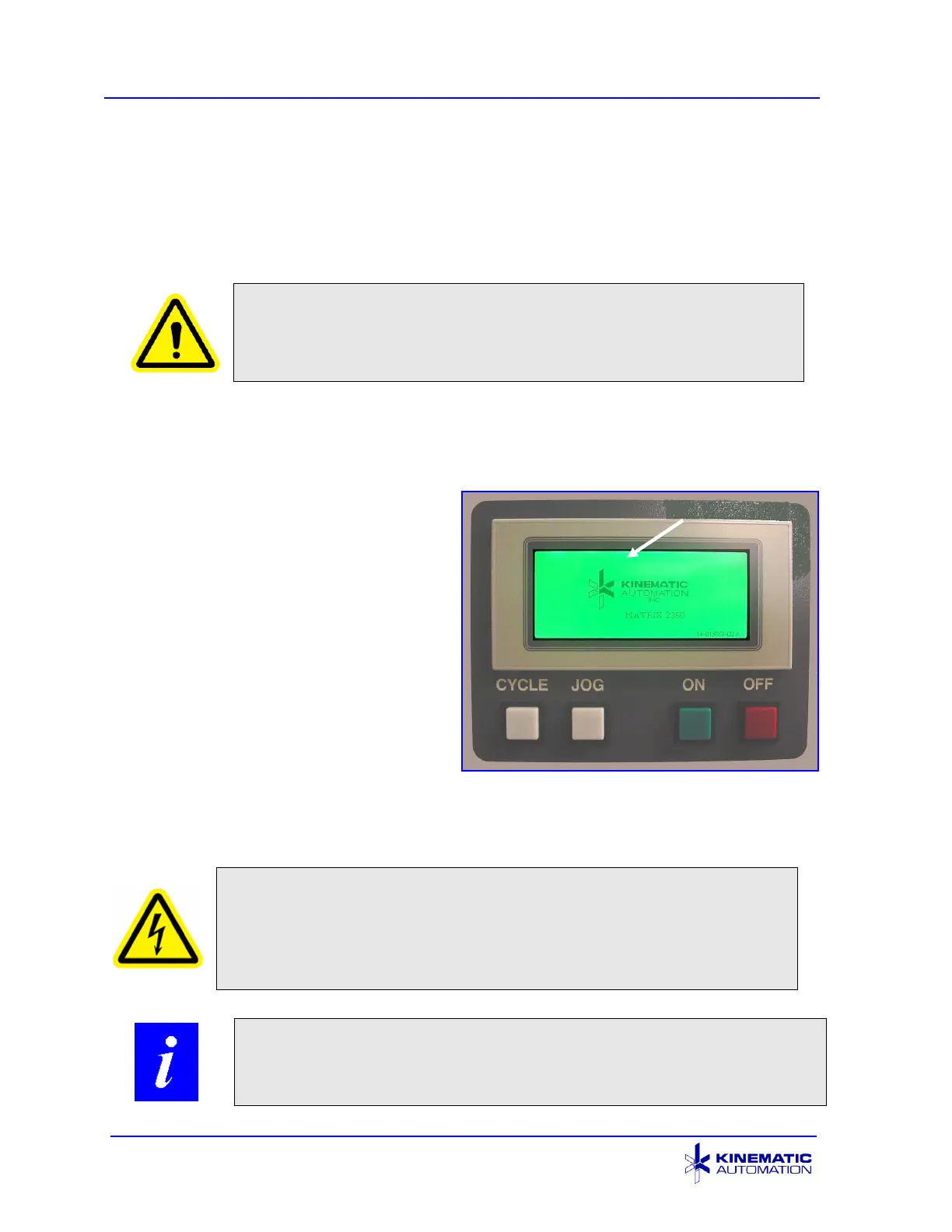

There are four pushbuttons on the
control panel below the Operator’s
touch screen. The pushbuttons work
like this:
CYCLE – Starts the process of
cutting the programmed
number of strips.
(If pressed during a batch
run it halts that run and
resets the strip counter.)
JOG – Moves product through the
machine without cutting
ON – Applies control power to the system and begins the self-diagnostics
OFF – Stops machine operation and shuts off control power in the system
ELECTRICAL HAZARD: Pressing the OFF pushbutton or the
EMERGENCY POWER OFF pushbutton does not remove
dangerous voltages inside the equipment.
Turn off the main circuit breaker and disconnect the equipment from
the facility power supply before removing panels.
NOTE: When the foot switch is connected as described in Section
4.4, pressing it performs the same function as pressing the CYCLE
pushbutton.
