Matrix 2360 Programmable Shear User Manual - Section 6
12-092600 A 53

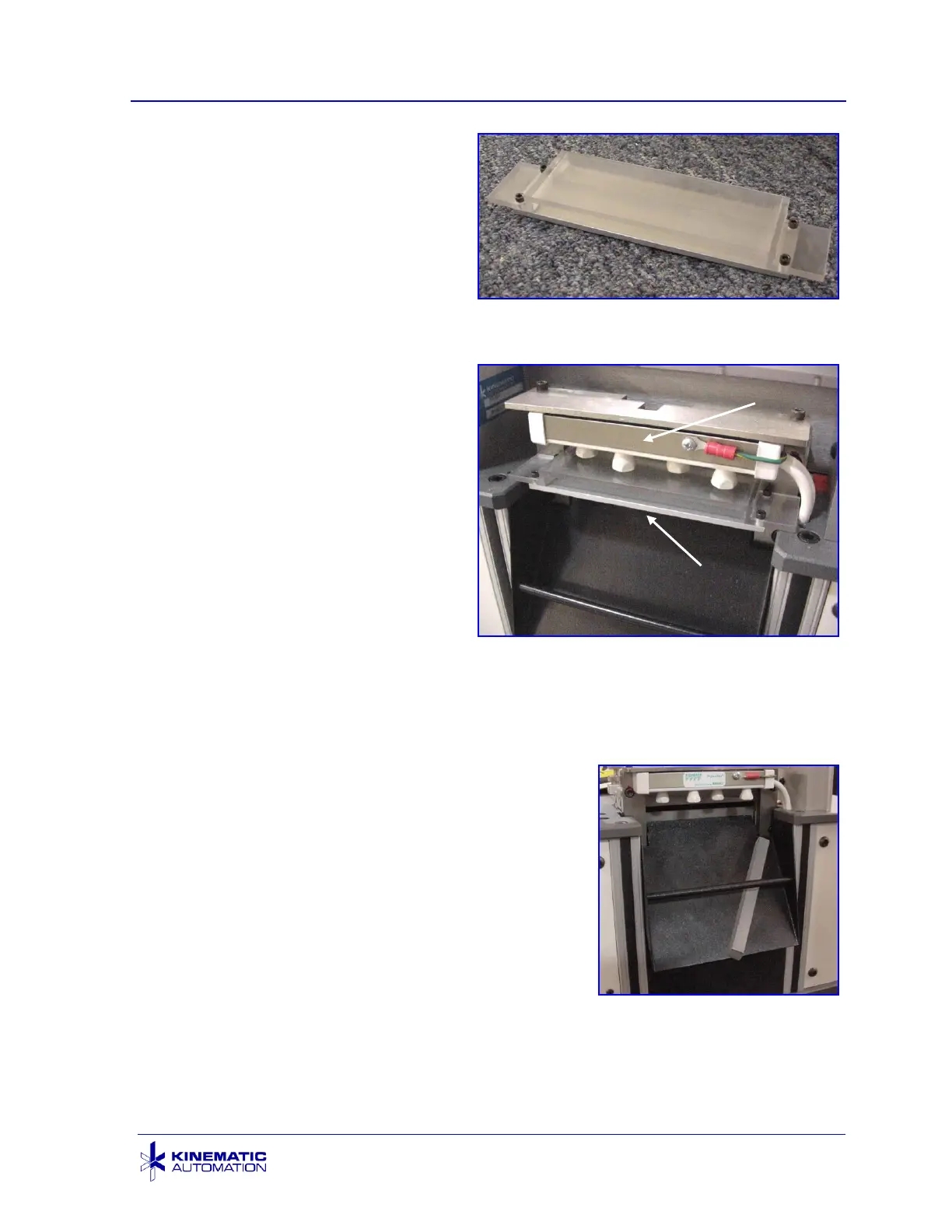

6.4 Optional Output Card
Guide
An optional card cutting guide fixture
may be installed on the rear of the
machine, above the output chute. The
purpose of the output card guide is
guide long cards or strips out from the
machine horizontally, past the output
chute.
It is easily installed and removed. If
purchased, it is delivered uninstalled,
in the Matrix™ 2360 shipping crate.
Turn off the electrical power to the
unit with the main switch on the
power entry module. Open the clear
blade cover and rest it on the shelf just
below the output slot.
Close the blade cover after installation.
6.5 Optional Magnetic Exit Guide
One or more magnetic exit guide bars can be placed
on the output chute to guide the strips into a narrow
path. The bars adhere magnetically and are easily
moved.
Magnetic Exit Guide
