Matrix 2360 Programmable Shear User Manual - Section 7
12-092600 A 73

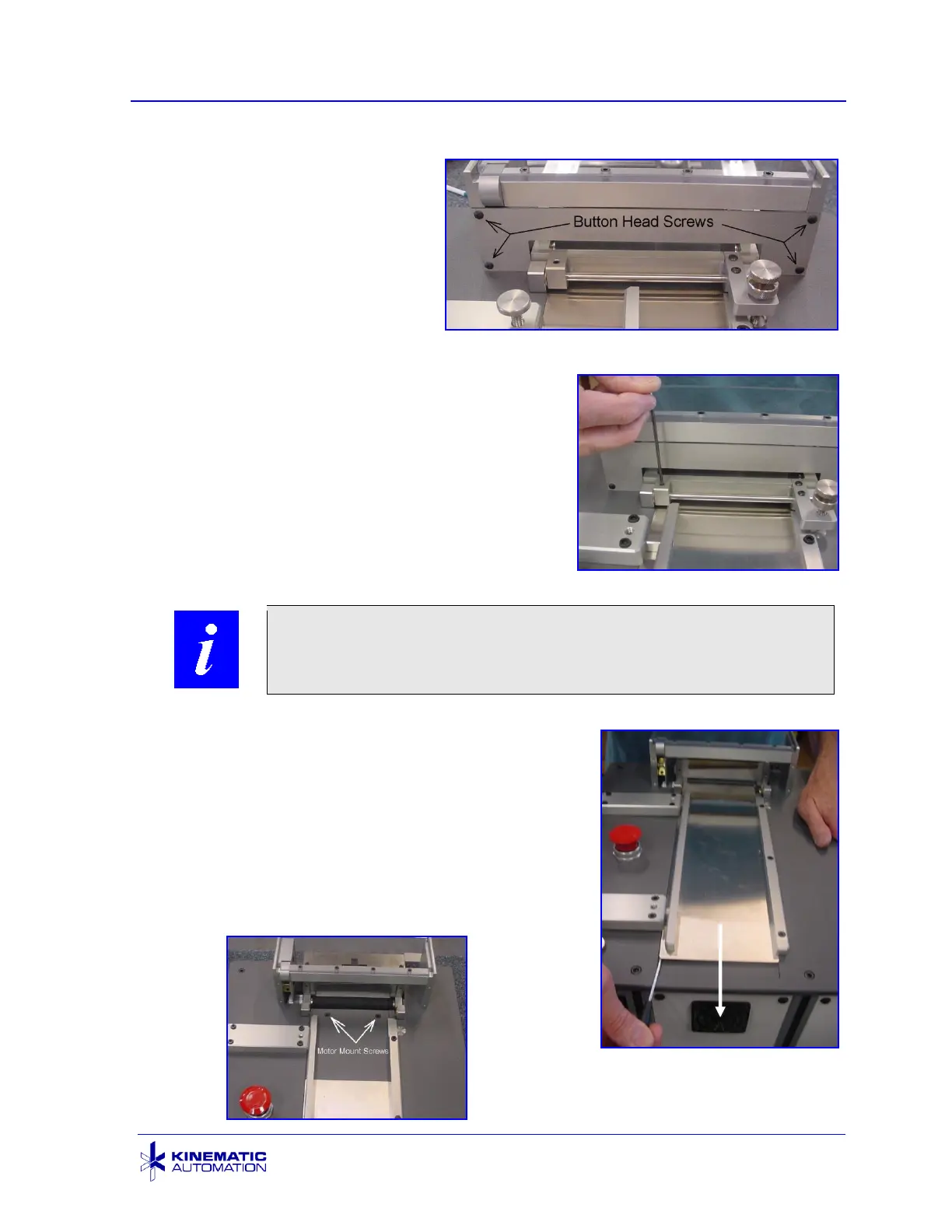

7. Use a 5/64” Allen
wrench to remove the
four 6-32 button head
screws that hold the
blade shield on the
blade cover. Set the
screws and shield in a
secure location for use
when reassembling this
unit.
8. Use a 3/32” Allen wrench to loosen the
10-32 set screw in the pivot bar/idler
roller assembly. Push the idler shaft all
the way out of the bushings so the idler
roller assembly is free. (Note the
position of the flat area on the shaft for
the set screw for later reassembly.) Set
all these parts in a secure location for
later reassembly.
NOTE: The upper (idler) roller is easily replaced while
reassembling the pivot bar assembly. If this is all that is required,
no further disassembly steps are required.
9. Lift the stainless steel wear plate out of the
recessed area and slide it out toward the
infeed end of the machine. Place this
plate in a secure location for later
reassembly.
10. Using a 5/32” Allen wrench, remove the
two 10-32 screws holding the top plate to
the blade motor mount.
Wear Plate
